39
E ES4710BD 10 Slots L2/L3/L4 Chassis Switch
z 12 fiber Gb ports line card (EM4700BD-12GX-SFP): supporting 12 SFP Gb fiber ports
for layer 2 and layer 3 switching and routing.
z Dual 10Gb fiber line card (EM4700BD-2XG-XENPAK): supporting 2 10GBase-X fiber port
(XENPAK) for layer 2 and layer 3 switching and routing.
z Enhanced processing card (EM-7600-ES): enabling enhanced services including IPv6,
MPLS and firewall.
z Enhanced processing card with dual fiber Gb ports (EM-7600-ES-2GB): enabling
enhanced services including IPv6, MPLS and firewall with 2 SFP 1000 Mb fiber ports.
1.4.2.1 EM4710BD-AGENT
The EM4710BD-AGENT is switching module for the ES4710BD. System status control, switch
management, user access control and administration, and network maintenances are performed here.
The board can be inserted into M1 or M2 slots of the chassis for Master-Slave redundancy.
1.4.2.1.1 Front Panel
The EM4710BD-AGENT comes with 1 Console port (control console) and 1 10/100Base-Tx
Ethernet port (administration port).
The Front Panel view is shown below:

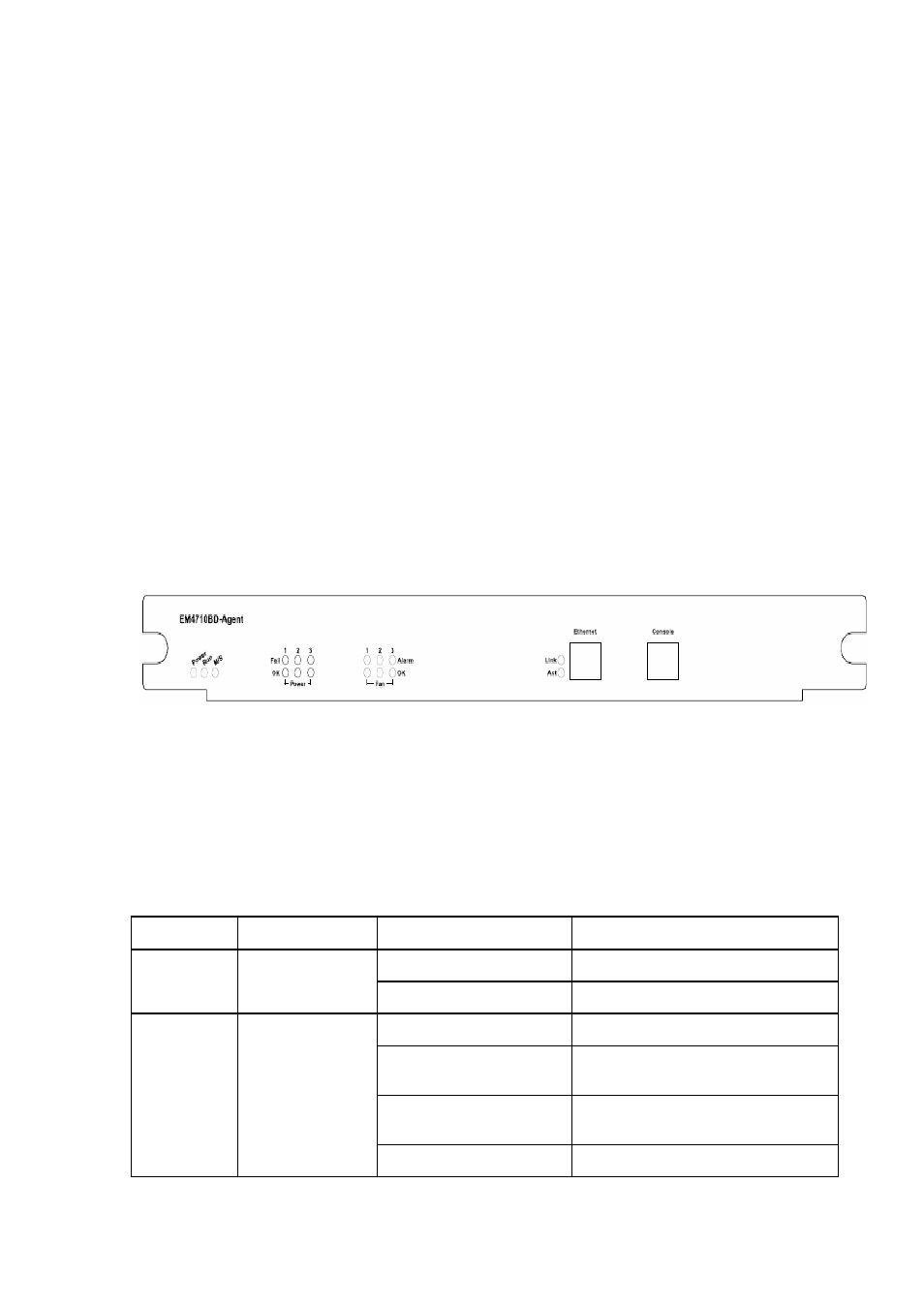

Fig 1-3 EM4710BD-AGENT Front Panel view
1.4.2.1.2 Front Panel - Indicator
The following table describes the front panel indicators of EM4710BD-AGENT:
Table 1.1 EM4710BD-AGENT indicators description
LED Panel Symbol Status Description
On (Green) Card powered
Power
Indicator
PWR
Off Card powered off
On (Green, blink at 1 Hz) Cards operating normally
On (Green, blink at 8 Hz)
System is loading (Booting after
cards hot swapping)
On (Yellow, blink at 8 Hz)
System is shutting down (Shutting
Down after SWAP button pressed)
Operation
indicator
RUN
On (Red, blink at 8 Hz) Cards malfunction
