Query-Interval － Configures local interface PIM-DM hello message interval time
z
Vlan Port － assigns layer 3 interface（select from scroll bar menu）
z
Apply － runs according to configured parameter
z
Default － restores local interface PIM-DM hello message interval time to default
19.7.3 PIM-SM configuration
19.7.3.1 Enable PIM-SM
In PIM-SM protocol configuration mode, click “Enable PIM-SM” to enable or disable PIM-SM
protocol in the layer 3 interface. This is the same as CLI command 19.4.2.2.1
z
Enable PIM-SM － yes means enable PIM-SM protocol; no means disable PIM-SM
protocol
z
Vlan Port － assigns layer 3 interface（select from scroll bar menu）
z
Apply － runs according to configured parameter
z
Default － disables assign layer 3 interface PIM-SM protocol
19.7.3.2 PIM-SM parameter configuration

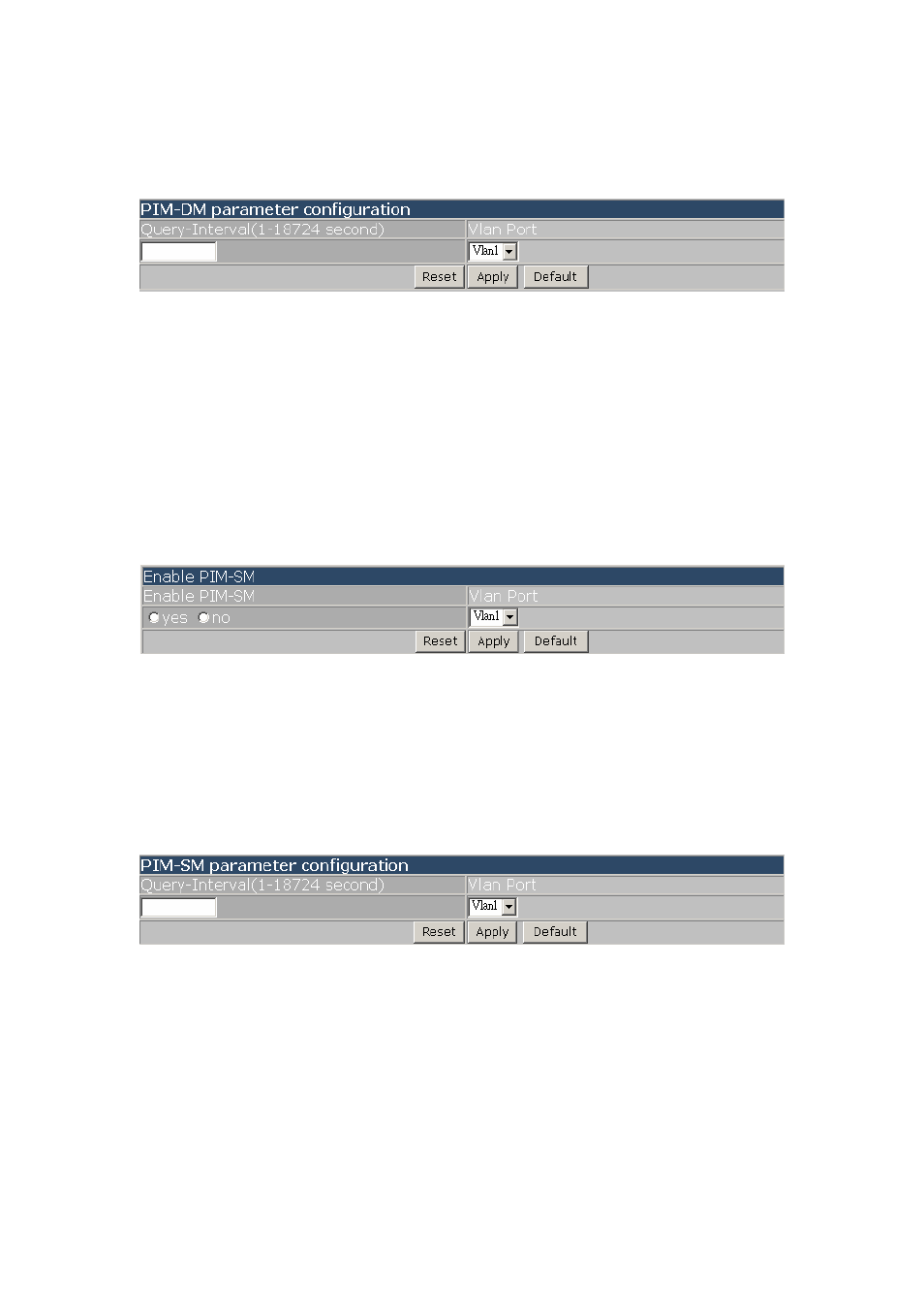

Click “PIM-SM parameter configuration” to configure PIM-SM running parameter for a specific
layer 3 interface. This is the same as CLI command 19.4.2.2.3
z
Query-Interval － Configures local interface PIM-SM hello message interval time
z
Vlan Port － assigns layer 3 interface（select from scroll bar menu）
z
Apply － runs according to configured parameter
z
Default － restores local interface PIM-DM hello message interval time to default
19.7.3.3 Set interface as PIM-SM BSR border
Click “Set interface as PIM-SM BSR border” to configure the PIM-SM domain border. In order to
prevent BSR message diffusing this PIM-SM domain, configure the specific interface as PIM-SM
domain border. This is the same as CLI command 19.4.2.2.2
z
Vlan Port － assigns layer 3 interface（select from scroll bar menu）
z
Apply － runs according to configured parameter
z
Default － cancels local interface working as PIM-SM domain border
