146
E ES4710BD 10 Slots L2/L3/L4 Chassis Switch
z Show telnet user－to display all Telnet client messages with authenticated switch access
through Telnet. Please refer to the CLI command 5.2.4.12.
z Show version－to display the number/version of the switch. Please refer to the CLI command
5.2.4.13.

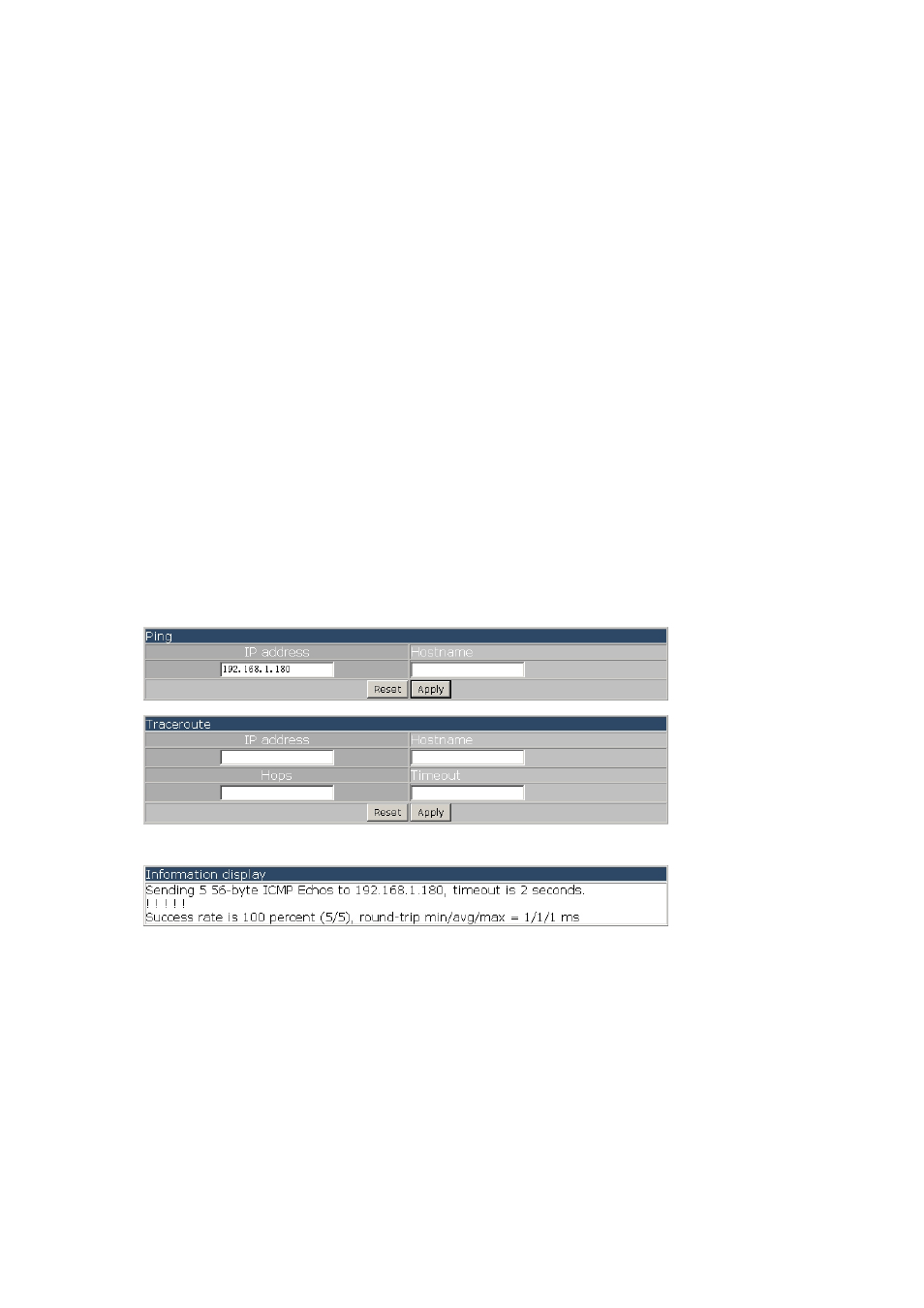

5.6.4.1 Debug command
User should click “Switch basic configuration”, “Basic configuration debug”, and “Debug
command” to enter into the configuration page and make configuration nodes, which include “ping”
and “traceroute” segments. They are individually of the same CLI command as 5.2.1 and 5.2.3.
Words and phrases of “Ping” segment are explained in the following:
IP address－the destination IP address
Hostname－the name of the host Words and phrases of “IP Traceroute” segment are explained in the
following:
IP address－the destination IP address
Hostname－the name of the host
Hops－the maximum passing hops
Timeout－ the timeout of data packets
Example: “ping” 192.168.1.180 and then click “Apply.”
5.6.4.2 Show vlan port property
Users should click “Switch basic configuration”, “Basic configuration debug” and “show switchport
interface” to enter into the configuration page and make configuration nodes. Please refer to the CLI
command 5.2.4.8.
“Port” means the port table.
Example: User finds a VLAN port’s properties by choosing port1/1 and click “Apply.”
