SD OUT

D-VITC

Field to specify if embedded time code has to be inserted in
the output.

The possible values are:

No

No new time code inserted in the output.

In (default)

Same time code as in the input inserted in
the output.

LTC

Time code from the LTC table inserted in
the output.

USER

User-defined time code inserted in the
output.

Lines

Lines on which the specified time code must be written on the
output.

UserBits

Yes/No flag to specify if the user bits have to be included in
the output. The default value is ‘Yes’.

Clean VBI Field in which the use specifies whether the VBI needs to be

cleaned on the output.

The possible values are:

No

The VBI is not cleaned in the output.

Always

The VBI is always cleaned in the output.

If not OK

The VBI is cleaned in the output if it is not
correct (PlayVar mode, vertical split
screen, etc.)

5.2.2

VITC/ANC

M

ANAGEMENT IN

HD

IN

AND

HD/SD

OUT

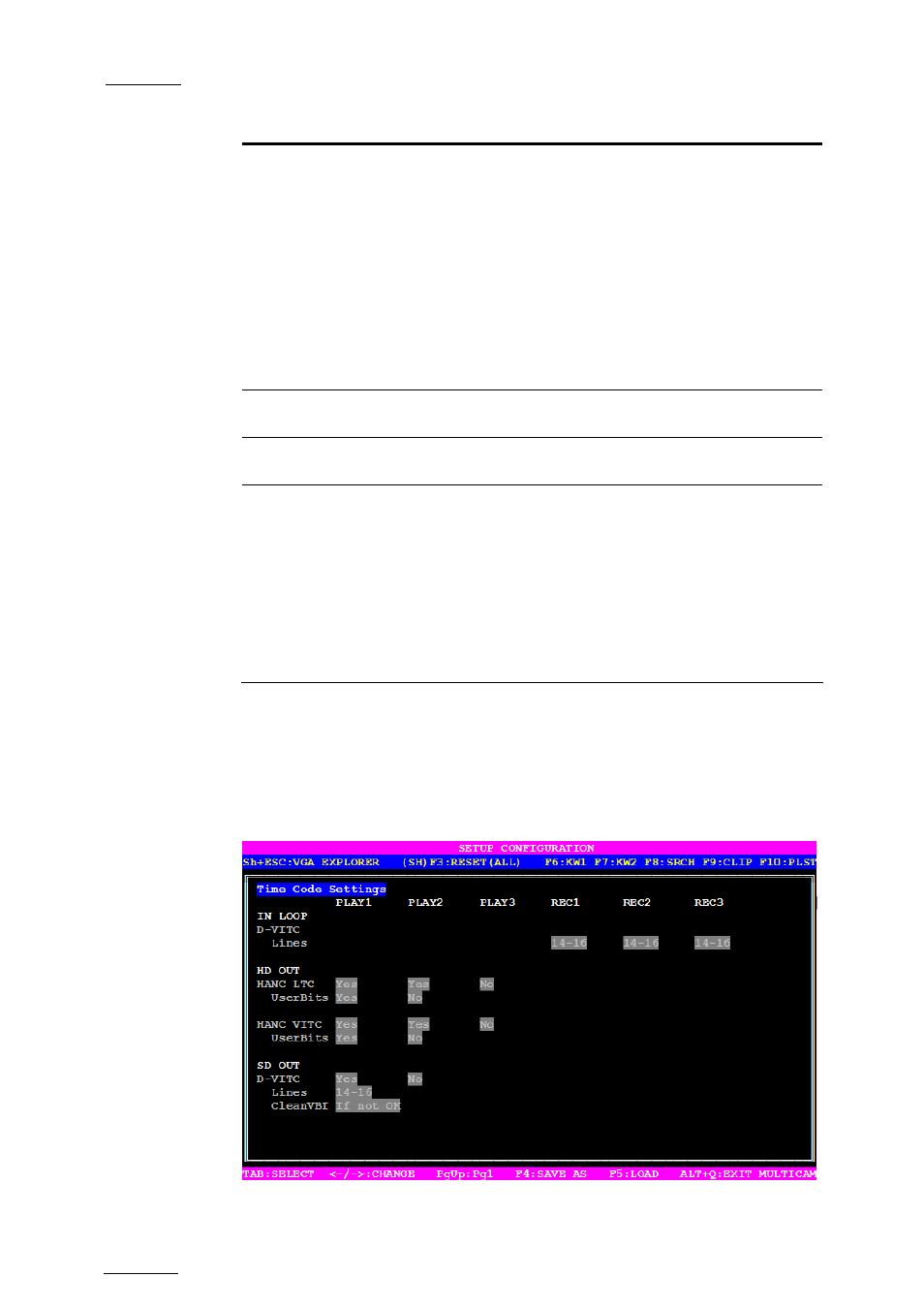

In HD, the page is as follows:
