EVS

Multicam - User Manual

Version 9.00

EVS Broadcast Equipment SA – March 2008

176

15. Paint Mode

Note

The Paint mode is a software option.

The functionality of this software package can be operated using the tablet
and the stylus, or a touch screen.

The normal pointing device is the tablet. It is selected in the Setup menu.

Selecting F2 (on page 6.2 of the Setup menu) will toggle between tablet /
touch screen (only when the touch screen is available). The touch screen
must always be connected to the RS422 port #6 and defined on page 7.2 of
the Setup menu (F6).

The use of the Loop function allows the operator to record the effect back
into the 1

s t

record channel of the server, and to create a clip with the paint

feature. Rolling a clip while in the Loop mode, in Painting, and dissolving
paint image on/off allow for a very powerful feature.

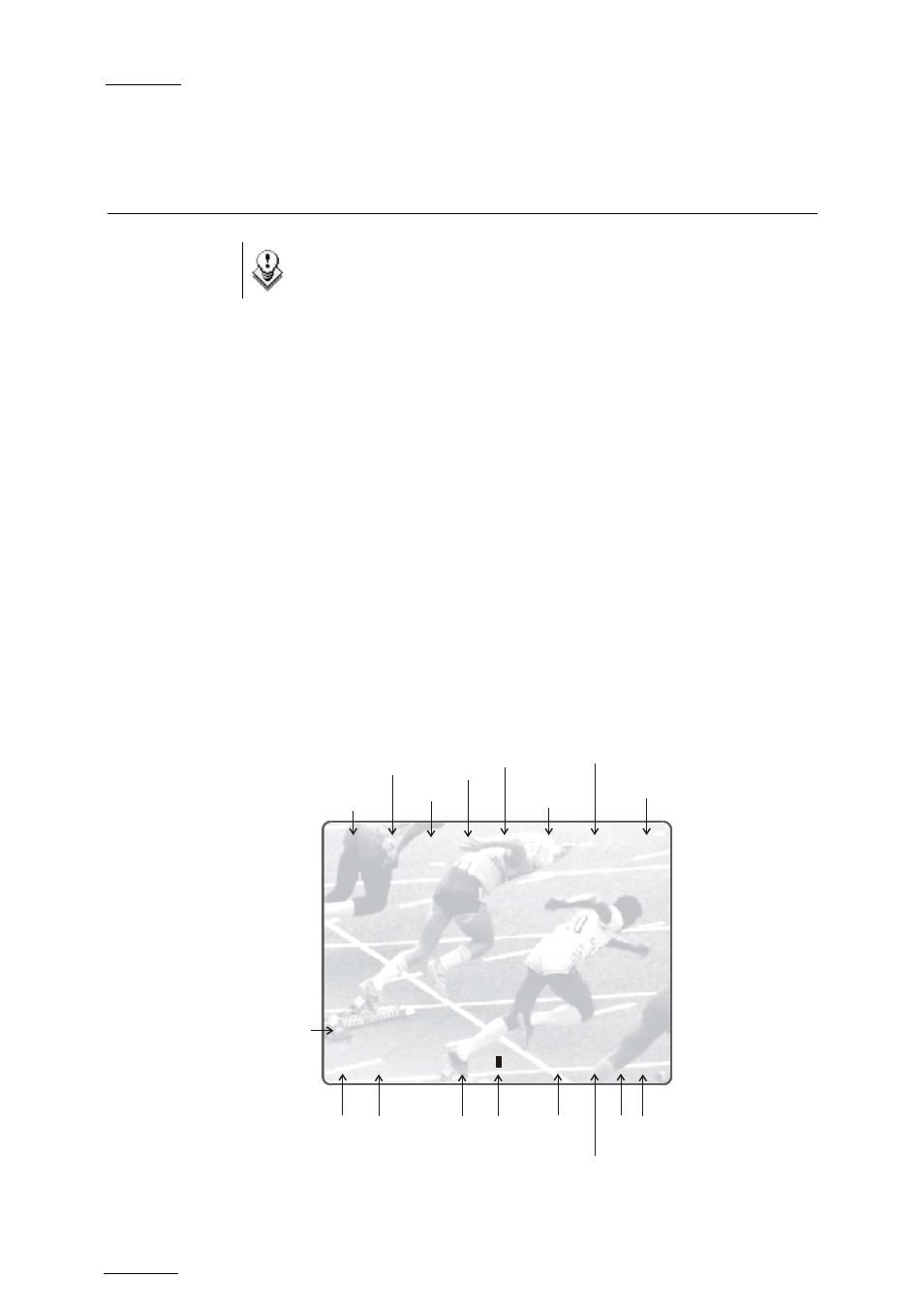

15.1

PAINT MODE MONITOR DISPLAY

This section presents the available functions on the Paint Mode monitor
display. For more information, refer to the subsections below.

L

<<< >>>

Line

Mark

Cue Out

C

O

A

D

Br1

E

Circle

C

P

Play

Clear

Color

Thickness

Select Brush

Erase

0

Arrow

Clip

Information

00:00:00

Library

Jog

S

SloMo

k

Keyer

on/off

Pause

Ellipse

00:00:00:00

0

L

L

Live
