The name of the channel currently assigned to each window is displayed on
the top of each of them. To assign a new channel to this window, press
ALT+H. A new window appears on the other side to allow the selection of a
new channel.
Use the ↑/↓ arrow keys to select the channel and press ENTER, or directly
press ALT + the number of the channel as highlighted in green. The Play
channels already assigned appear in grey and can not be selected. Select
“0 – Disable Window” if you don’t want to assign any channel to the window.
Depending whether a Play or Record channel is assigned to the VDR Panel
window, its content is automatically updated.
11.4.3 VDR P
ANEL
– P
LAYER
W
INDOW
11.4.3.1 H
OW TO
L
OAD A
R
ECORD
T
RAIN
Press ALT+L to go in LIVE mode (or click on the LIVE function), then press
ALT + the letter of the desired record train (A/B/C/D/E/F), or click on it. The
letters corresponding to the available record trains are highlighted in green,
and the letter of the current record train in red.

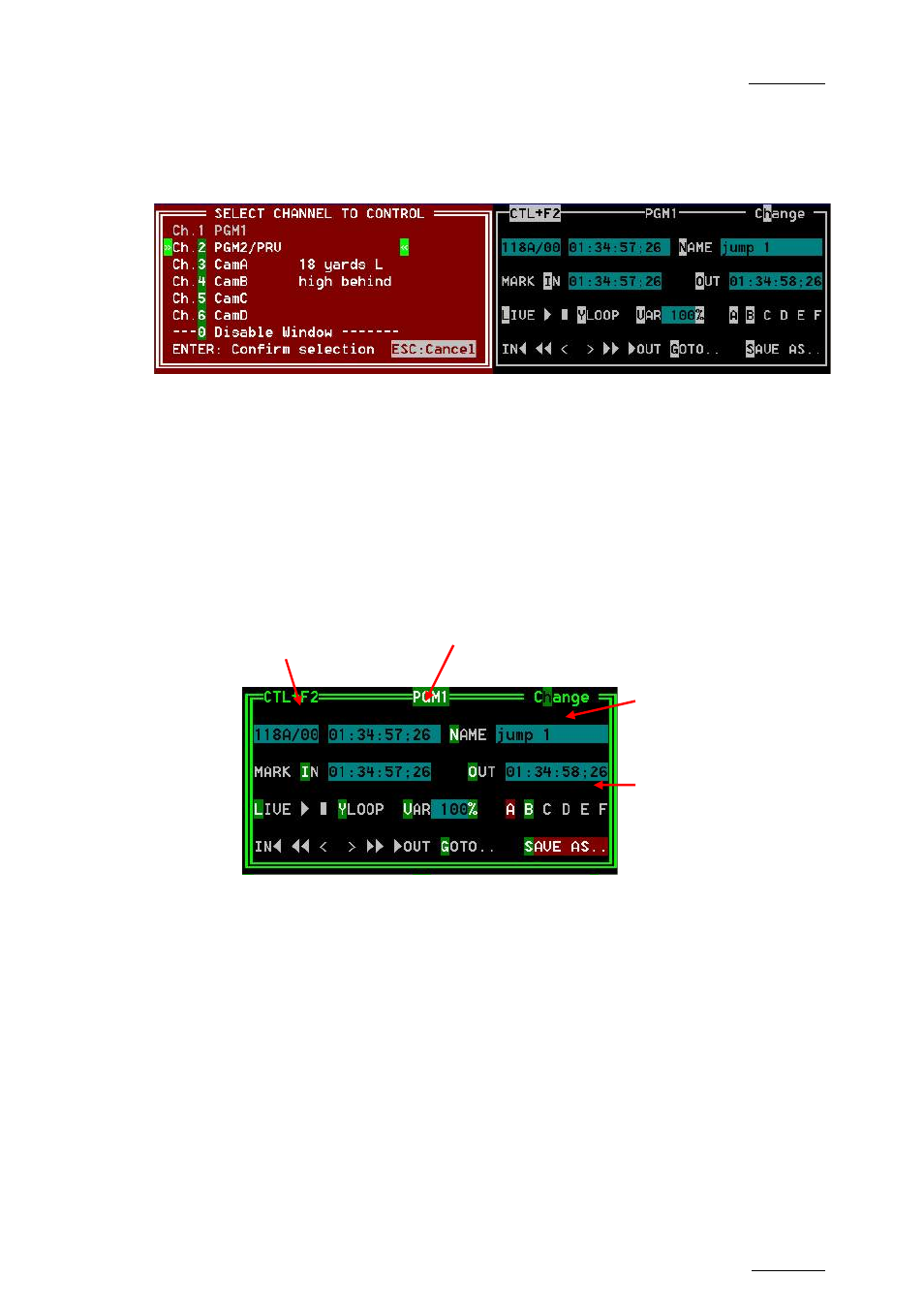

ID of the current
element (clip or train)
Current time code
Name of the
current element
List of available
camera angles
(green) and selected
camera angle (red)
