11.3.11

C

LIP

S

CREEN

E

XTENDED

V

IEW

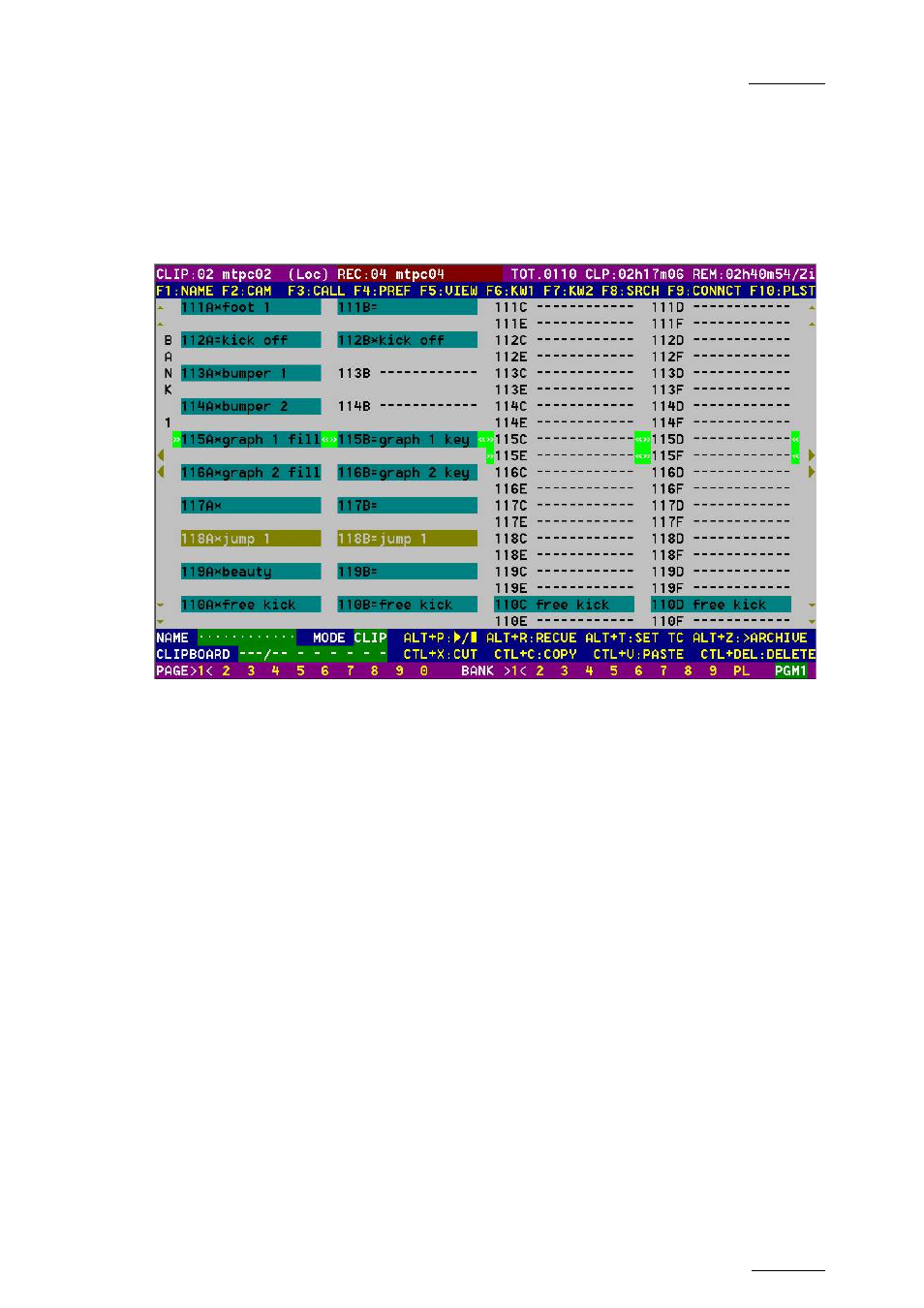

The extended view shows cameras A to F instead of A to D. Only 1 bank can
be viewed at a time. The switch between standard and extended view is
done by pressing F5 on the keyboard or by clicking on the “F5:VIEW” area
on the screen.

11.4

USING THE VDR PANEL

The VGA VDR Panel is accessed from any VGA screen by pressing
SHIFT+F9 on the keyboard. The lower section of the VDR Panel is similar to
the clip screen, with the same functions. The upper section of the VDR
Panel features 2 windows that can each take control of one channel of the
server.

Pressing SHIFT+F9 in the VDR Panel returns the VGA to the Clip screen
mode.
