EVS

Multicam - User Manual

EVS Broadcast Equipment SA – March 2008

Version 9.00

173

14.9

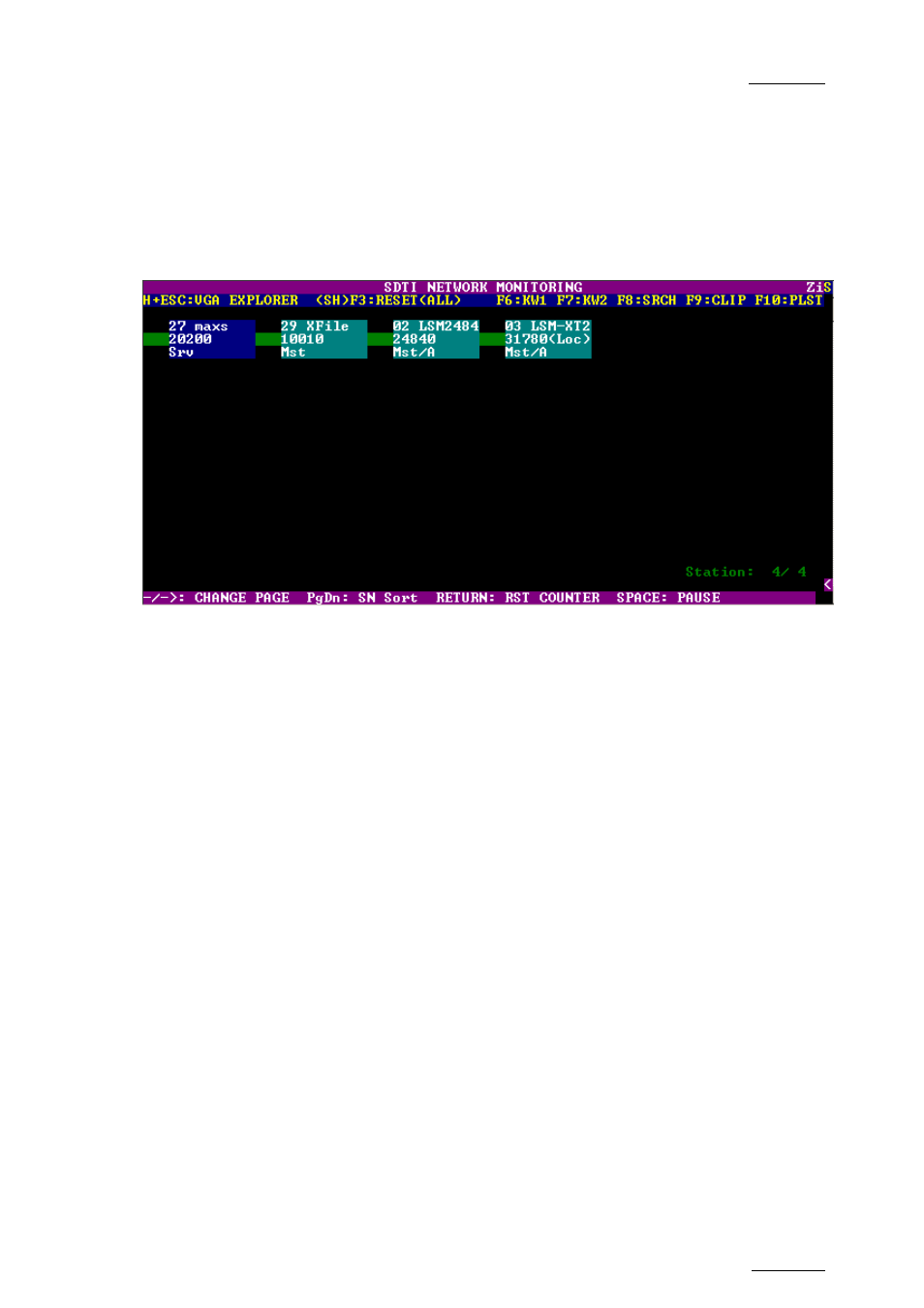

NETWORK MONITORING SCREEN

The screen accessible via the SHIFT+F4 keys allows a more accurate
monitoring of the SDTI network status.

14.9.1

I

NFORMATION

A

VAILABLE ON THE

S

CREEN

14.9.1.1

D

ATA DISPLAYED

All the machines are displayed in the logical connection order,i.e. the way
they are effectively connected on the network.

For each machine, the following information is displayed:

• net number + name

• serial number

• main network configuration setting (server, master client) as defined in

the EVS application.

14.9.1.2

B

ACKGROUND

C

OLOUR

The background colour of the data related to a given machine means:

• blue: effective server

• grey: not currently server
