Tool and Bitmap Summary
B–3
Publication 2711-6.0

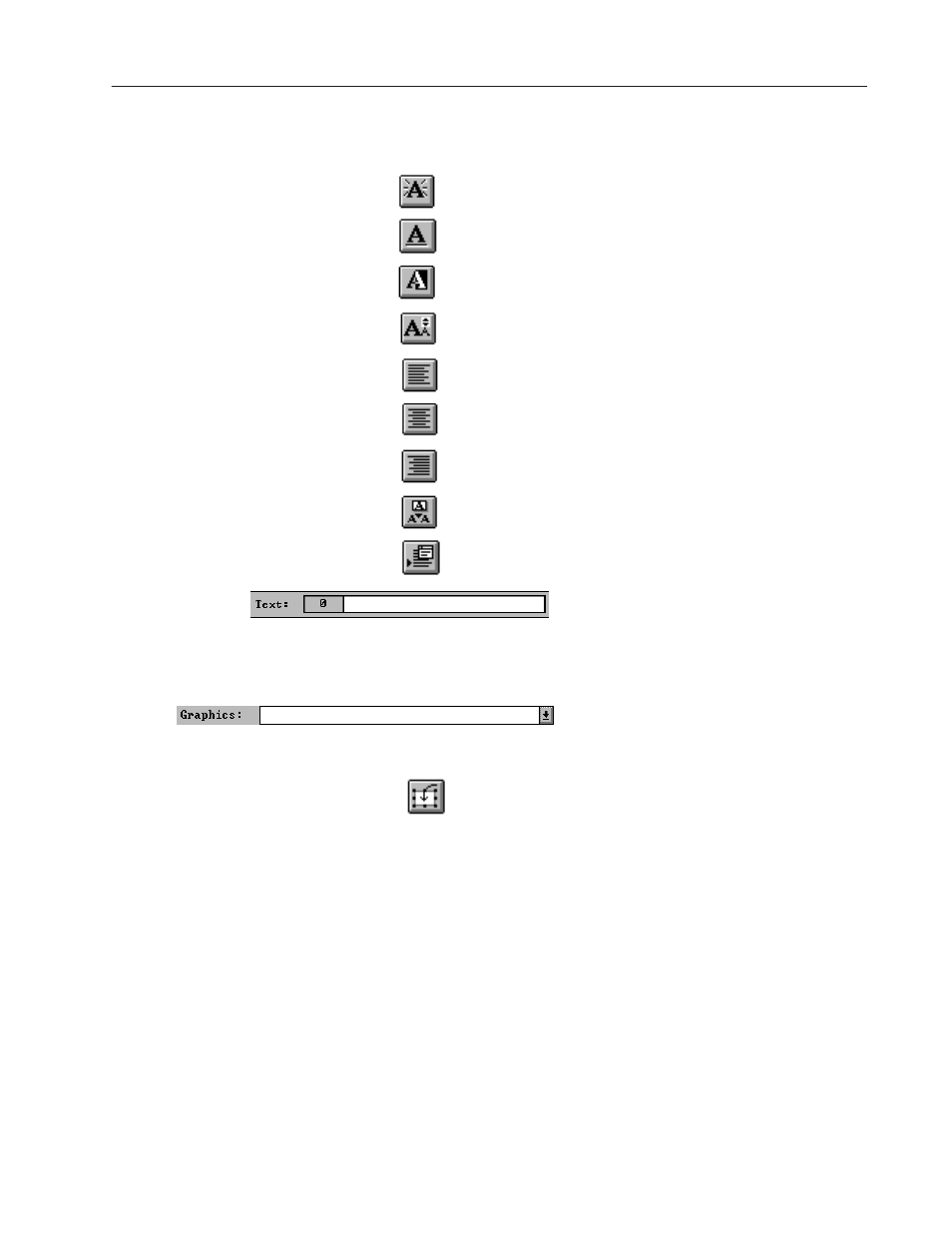

Text Formatting Tools
Blink
Toggles blinking on or off for the selected text.
Underline
Toggles underlining on or off for the selected text.
Toggle
Fore/Background
Toggles the foreground and background colors of the
selected text.
Text Size
Increases or decreases the size of the selected text.
Left Align
Aligns the selected text to the left.
Center Align
Centers the selected text.
Right Align
Aligns the selected text to the right.
Embedded
Variable
Inserts a time, date, numeric or ASCII variable in a text
string. Also lets you edit a variable.
Existing Text
Opens the Existing Text dialog.
Edits inner text for an object.
Inner Graphic Tools
List of available graphics
Selects an inner graphic from a list of imported bitmaps.
Import/Export
Graphics
Opens the Import/Export Graphics dialog.
