7–12 Working with Objects
Publication 2711-6.0
Most objects, when created, have default inner text. The text varies
depending on the object type.
Inner text can be edited and can include a time, date or numeric
variable. In addition, you can replace the text with an inner graphic
or include a graphic with the text.

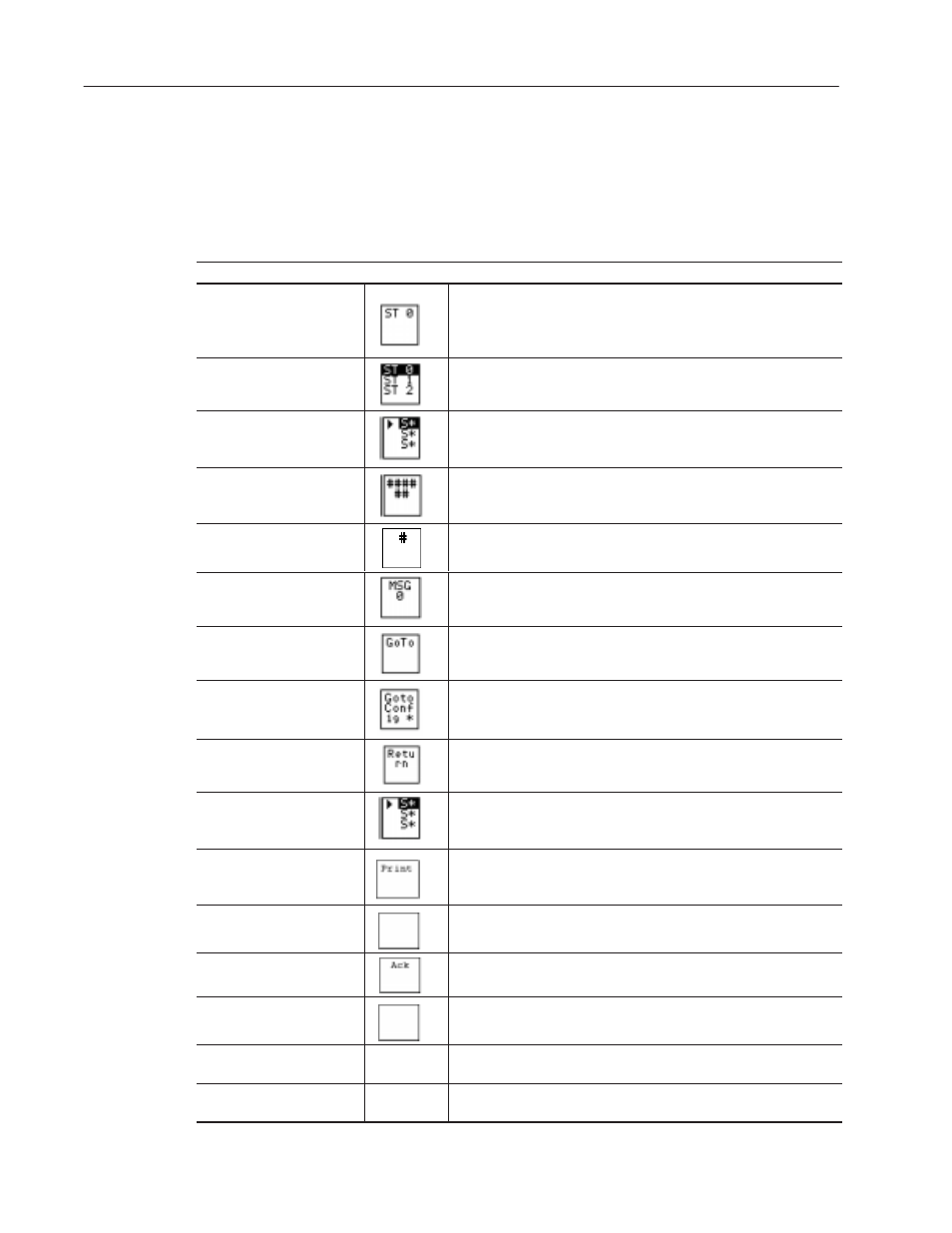

Object Inner Text Notes
Push Buttons
Multistate Indicator
Inner text for 2-state push buttons is ST 0 (State 0) and ST 1 (State 1).
For multistate push buttons, the text can increment to ST 15 (State 15).
For multistate indicators, the text can increment from ST 0 (State 0) to ST
1999 (State 1999).
List Indicator Inner text for list indicators can increment from ST 0 (State 0) to ST 254
(State 254).
Control List Selector
Standard
Piloted
Inner text for control list selectors can increment from ST 0 (State 0) to
ST 254 (State 254). The asterisk * means the text exceeds the size of
the object. Resize object.
Numeric Entry Objects
Numeric Data Display Inner text for numeric entry and display objects is a numeric variable
placeholder (######). You can add text before or after the variable.
ASCII Entry Object Inner text for an ASCII entry objects is a variable placeholder (#). You can
add text before or after the variable.
Message Display Inner text for message displays can increment from MSG 0 (Message 0)
to MSG 1999 (Message 1999).
Goto Screen Button Inner text is GoTo.
Goto Config Screen Button Inner text is Goto Config Screen. The asterisk * means the text exceeds
the size of the object. Resize object.
Return Button Inner text is Return.
Screen List Selector Inner text for screen list selectors can increment from ST 0 (State 0) to
ST 254 (State 254). The asterisk * means the text exceeds the object
size. Resize object.
Print Alarm Button Inner text is Print.
Clear Alarm Button
Clear
Inner text is Clear.
Acknowledge Alarm Button Inner text is Ack.
Acknowledge All Button
Ack
All
Inner text is Ack All.
Clear Alarm List Button
Clear Alarm
List
Inner text is Clear Alarm List.
Print Alarm List Button
Print Alarm
List
Inner text is Print Alarm List.
