Validating and Transferring Applications

Publication 2711-6.0

Downloading to a PanelView Terminal

This section shows how to download a .PVA file to a PanelView
terminal using the Application File Transfer Utility.

ATTENTION: When downloading using
Pass-Through with the processor in run mode, verify
the rack address of the target terminal. Downloading
to an incorrect rack address may result in unexpected
operation or damage to equipment.

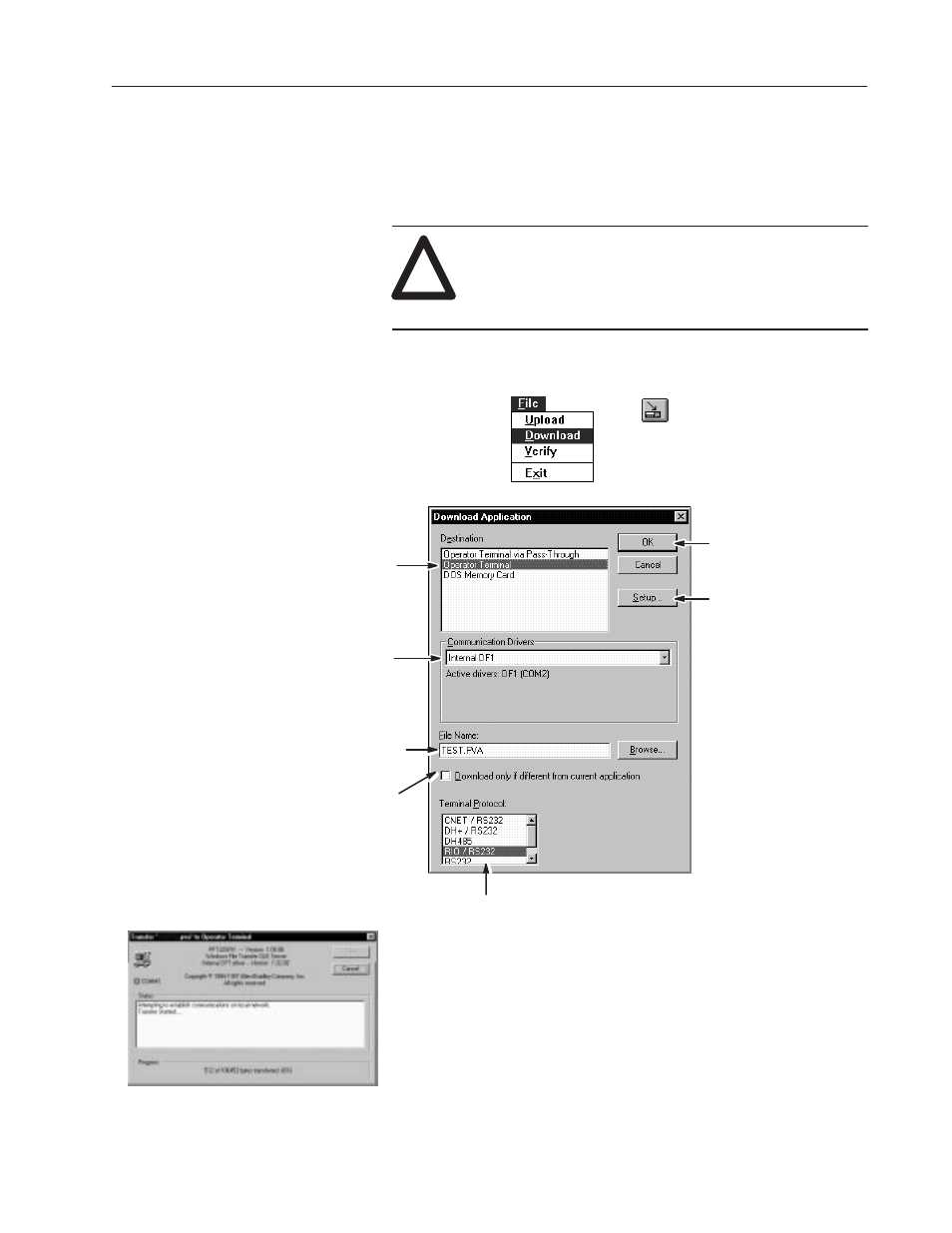

To download an application:

Select target device for download.

➁ Select Download parameters.

➀ Click the Download tool or choose Download from the File menu.

Enter name of .PVA file you want to
download or click Browse to search
for a file.

Check this box to download the
application only if it is different from
the application loaded in the terminal.

➂ After clicking OK, the following dialog opens.

➃ Terminal resets, verifies and starts application.

Click OK to start
download.

Select the type of terminal you are
downloading application.

Select appropriate driver

Depending on the
Destination selected,
you may have to click
Setup to edit/verify
terminal parameters.
