Rockwell Automation 2711-ND3 PanelBuilder v2.60 Software User Manual User Manual
Page 399

23–11
Validating and Transferring Applications
Publication 2711-6.0

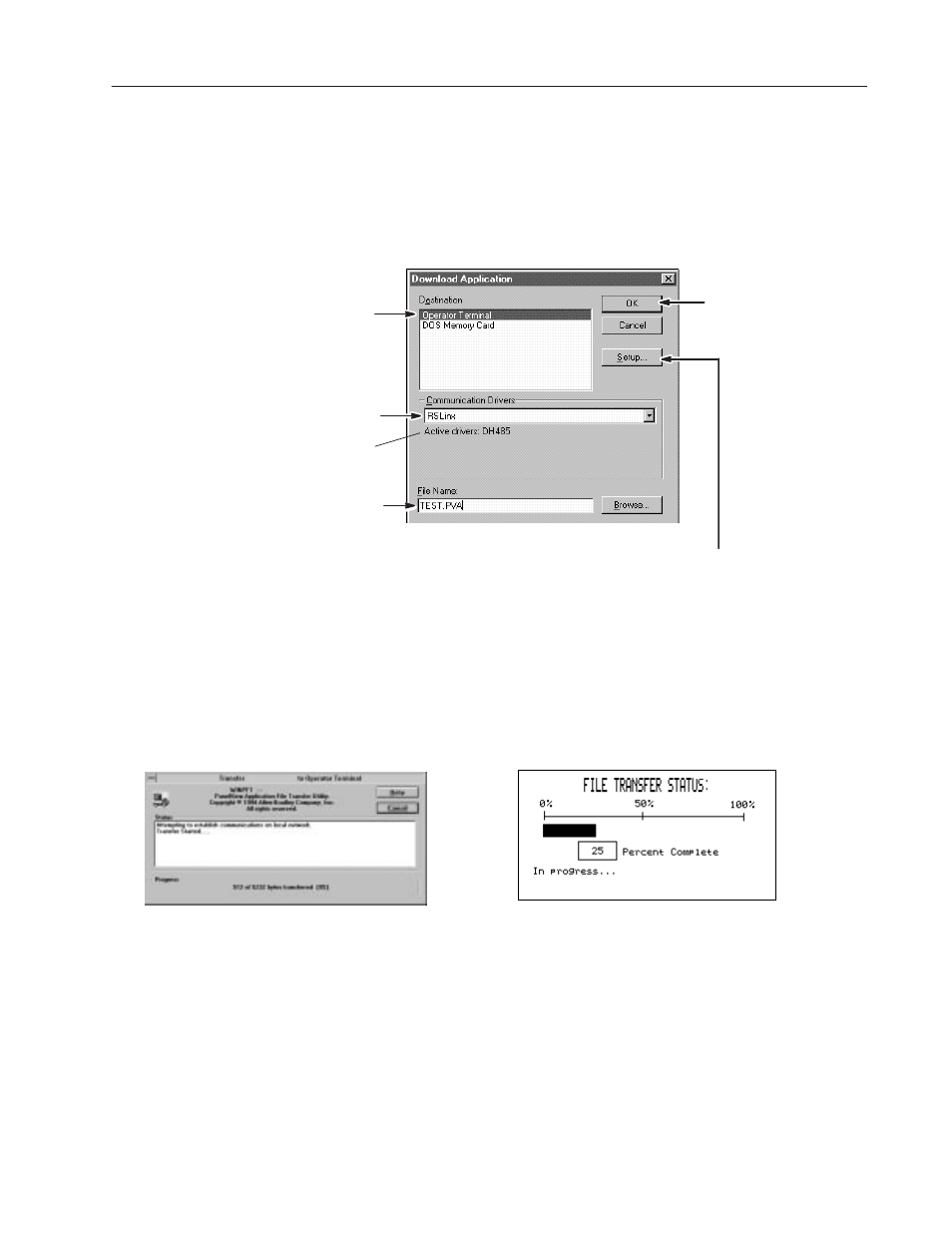

To download an application using a DH485 Driver:
➁ Choose Download from the Application menu.
➂ Select the Download parameters.
➃ Application is validated and translated to a .PVA file.
➄ PanelBuilder software and terminal display status of download.
➀ Open the application you want to download.
Enter name of .PVA file in which to
save the translated .PBA file or click
Browse to search for a file.
Select Operator Terminal
Select RSLinx or
INTERCHANGE Driver
Click OK to start
download.
’TEST.PVA’
If errors or warnings are detected, the Exceptions dialog opens.
You must correct errors before download can proceed.
Warnings should be corrected, but the download will proceed.
➅ Terminal resets, verifies and starts application.
For DH-485 or RS-232 (DH485 protocol)
terminals, click Setup to verify node
address of terminal.
Shows DH485
as active driver
