9–3 Creating Control List Selectors
Publication 2711-6.0
Piloted control lists have additional options:
•
Block Write
•
Inactive States
Block Write Tag
If a block write tag is assigned, the terminal writes the values of all
items displayed in the control list to a block of addresses starting
with the block write start tag address. The maximum number of
items supported by the block write tag varies for each terminal:
•
15 values for PanelView 550 terminals
•
25 values for PanelView 600 terminals
•
24 values for PanelView 900 monochrome and
1000 grayscale terminals
•
29 values for PanelView 900/1000/1400 color terminals

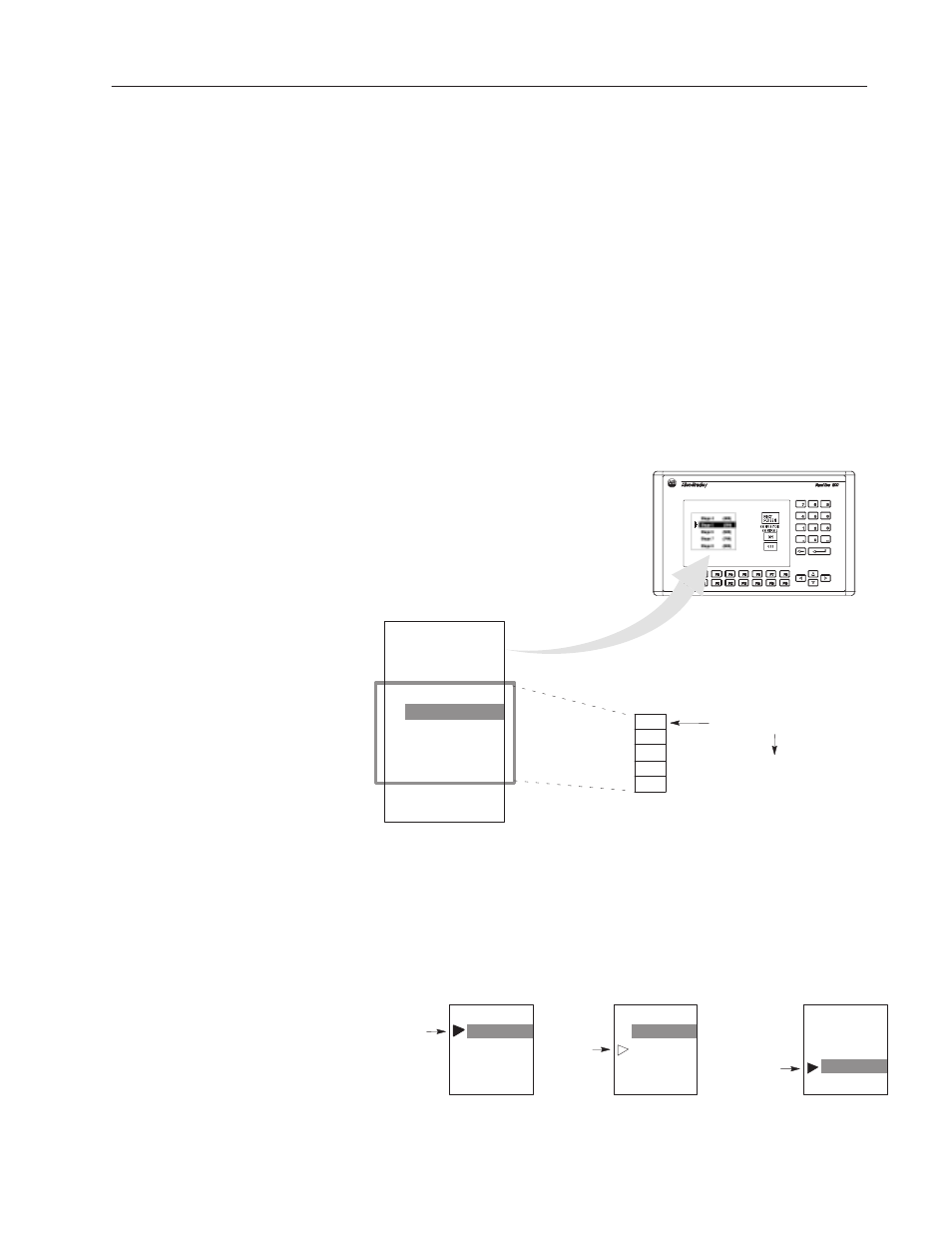

Displayed Portion
of Control List
400
500
600
700
800 Block Write Start Tag
Block Write Data
Sent to Controller
CONTROL LIST
Stage 1
Stage 5
(100)
Stage 2 (200)
Stage 3 (300)
Stage 4 (400)
(500)
Stage 6 (600)
Stage 7 (700)
Stage 8 (800)
Stage 9 (900)
Stage 10 (1000)
Up to 29 Sequential
Addresses
Inactive States
Inactive states are states that appear on the control list but cannot be
selected by an operator. The cursor appears as a hollow head cursor
when moved to an inactive state. An operator cannot highlight or
select an inactive item. Inactive states are included as part of the
data sent with a block write of the displayed list items (see above).
Active
State
Cursor at state 2,
an active state
State 1
State 5
State 2
State 3
State 4
Operator selects inactive state 3.
Cursor becomes hollow and highlight
remains in original position.
State 1
State 5
State 2
State 3
State 4
State 1
State 5
State 2
State 3
State 4
Operator selects active state 4.
Cursor returns to solid fill state
and highlight moves to selection.
Active
State
Inactive
State
