11–2 Creating Screen Selectors
Publication 2711-6.0

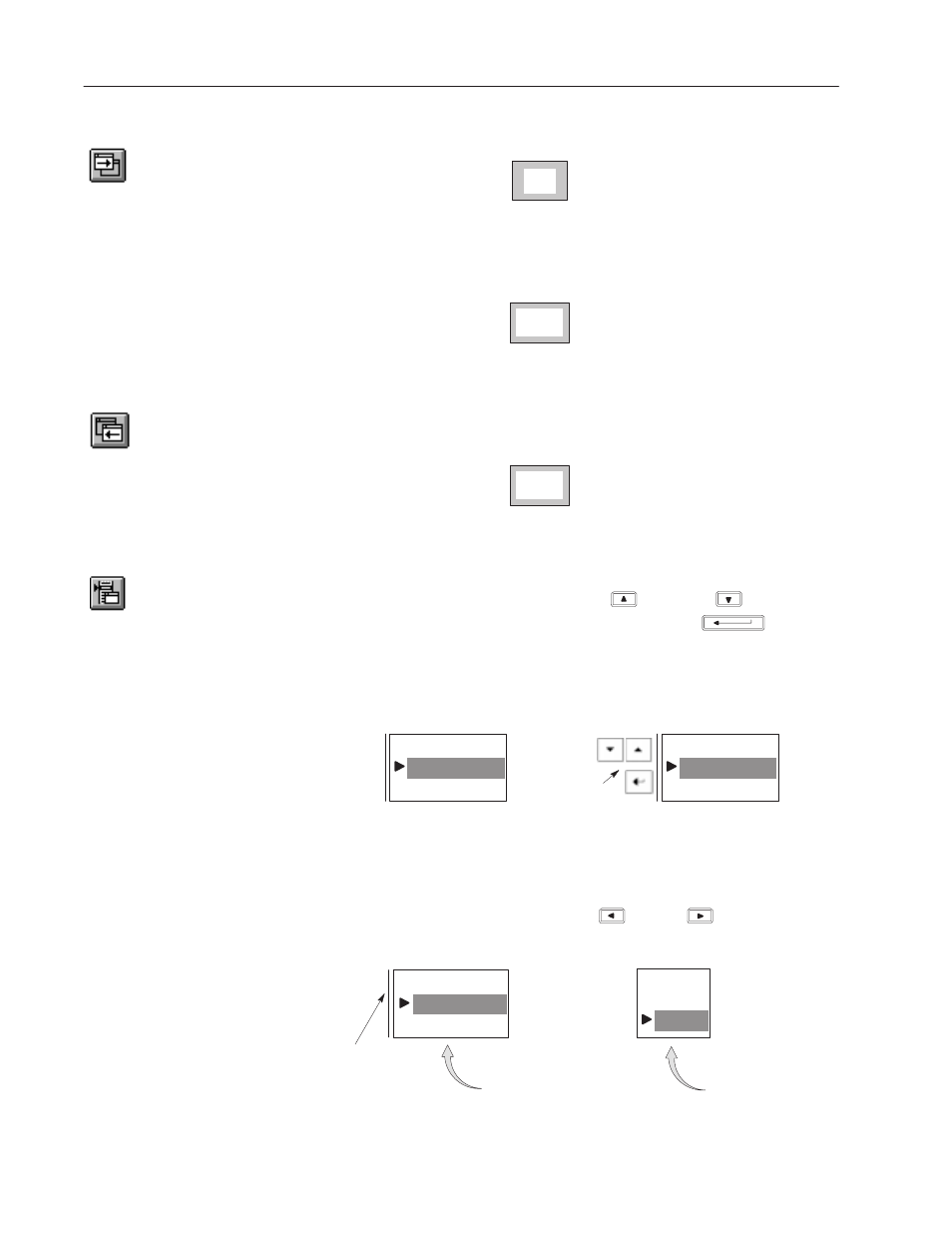

The Goto screen button, when pressed, displays a specific screen.
MAIN
MENU
The Goto Config Screen button, when pressed, displays the
PanelView Terminal Configuration Mode menu.
CONFIG
SCREEN
The Return screen button, when pressed, displays the previous
screen. This button doesn’t provide a continuous link back to the
first screen.
PREVIOUS
SCREEN
A Screen List Selector contains a menu or list of screens from which
the operator can make a selection. A cursor indicates the current
selection. The operator uses the up
and down arrow keys
on the terminal to move the cursor and the Enter key to
enter the selection.
Touch screen only terminals require list keys on the screen, enabling
the operator to move the cursor through the list.
Conveyor Controls
Heater Controls
Pump Controls
Conveyor Controls
Heater Controls
Pump Controls
List Keys
Each screen list selector is assigned a function key or touch cell to
activate the list for operator input. This allows multiple lists to
appear on a screen. Another way to activate a screen list selector on
keypad terminals is to use the left
or right arrow keys on
the terminal’s keypad.
Conveyor Controls
Heater Controls
Pump Controls
Preloader
Tank 1
Heat Loop
Indicator Bar Shows
Active Screen List
Assigned Function Key F1 Assigned Function Key F2
Goto Screen Button
Goto Config Screen Button
Return Screen Button
Screen List Selector
