Function library

Function blocks

3.2.19

Setpoint conditioning (CCTRL)

3−67

l

EDSVS9332K−EXT EN 4.0

3.2.19

Setpoint conditioning (CCTRL)

)

Note!

For the CCTRL and CCTRL2 function blocks, partly the same codes are used.
Therefore you may only use CCTRL or CCTRL2. On the basis of extended functions
we recommend the use of CCTRL2.

Purpose

l

Forming the set machine position (CCTRL−PHI−SET) from the set profile position (e. g. from the
YSET1 function block).

l

Additional functions like inching/manual jog, reference search (REFC), position override
function with maintaining the set machine position from the cam via a second set machine
position (CCTRL−PHI−SET2).

l

Output of the actual machine position (CCTRL−PHI−ACT) after carrying out the "Set reference"
function.

l

Touch probe synchronisation of the drive.

l

Calculation of the speed and acceleration precontrol.

CCTRL

0

1

X5/E4

C1340/2

C1341/2

C1342/1

C1343/1

C1346/2

C1347/2

C1339/1

C1339/2

C1339/4

C1339/3

C1344/1

C1342/6

C1345/1

C1343/6

C1342/7

C1343/7

C0430/4

CCTRL-MRED

CCTRL-RESET

CCTRL-NSET2

CCTRL-Y-END

CCTRL-RESET-N2

CCTRL-CLR-INTEG

CCTRL-MOUT

CCTRL-NOUT

CCTRL-PHI-SET

CCTRL-DFOUT

CCTRL-PHI-SET2

CCTRL-PHI-ACT

CCTRL-POUT

C1342/3

C1343/3

CCTRL-N2-SET

CCTRL-TP-RECOGN

C1348/1

C1348/2

C1344/2

C1342/2

C1342/4

C1345/2

C1343/2

C1343/4

CCTRL-TP-POS

MCTRL-PHI-ACT

CCTRL-TPIN

CCTRL-TPIN/E4

C1342/5

C1343/5

CCTRL-SUB-Y-END

-

C1346/1

C1347/1

CCTRL-IN

C1340/1

C1341/1

CCTRL-NRED

1

0

1

0

FB_cctrl

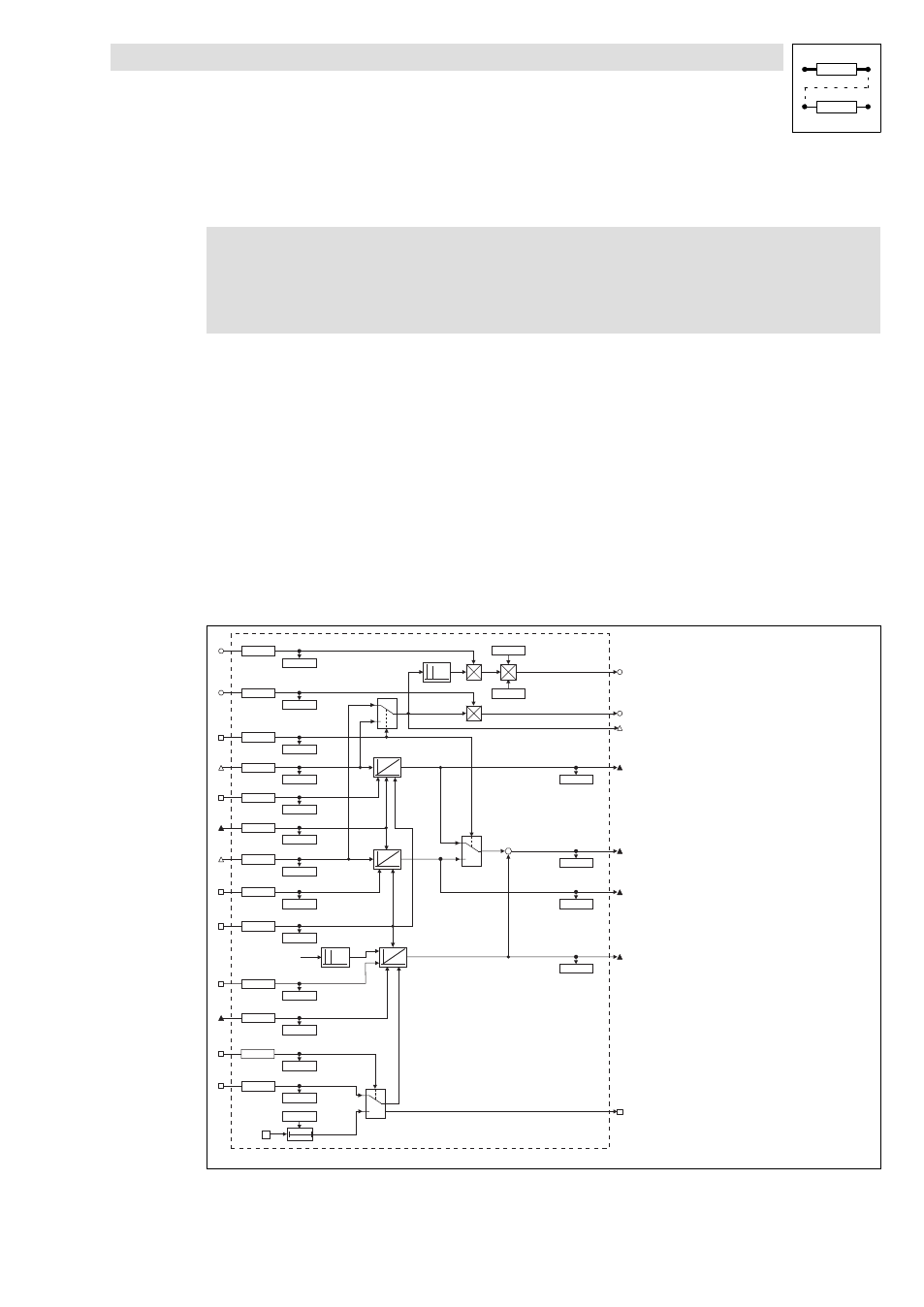

Fig. 3−54

Setpoint conditioning (CCTRL)
