Function library
Function blocks
3.2.57 Flipflop element (FLIPT)
3−184
l
EDSVS9332K−EXT EN 4.0
3.2.57 Flipflop element (FLIPT)
Purpose
The function blockB is designed as D−flipflop. By means of this function, digital signal edges can be
evaluated and saved.
FLIPT1−D
FLIPT1−CLR
FLIPT1
FLIPT1−OUT
D
clR
Q C1061/7
C1061/9
FLIPT1−CLK
C1061/8
C1060/7
C1060/8
C1060/9
fb_flipt1

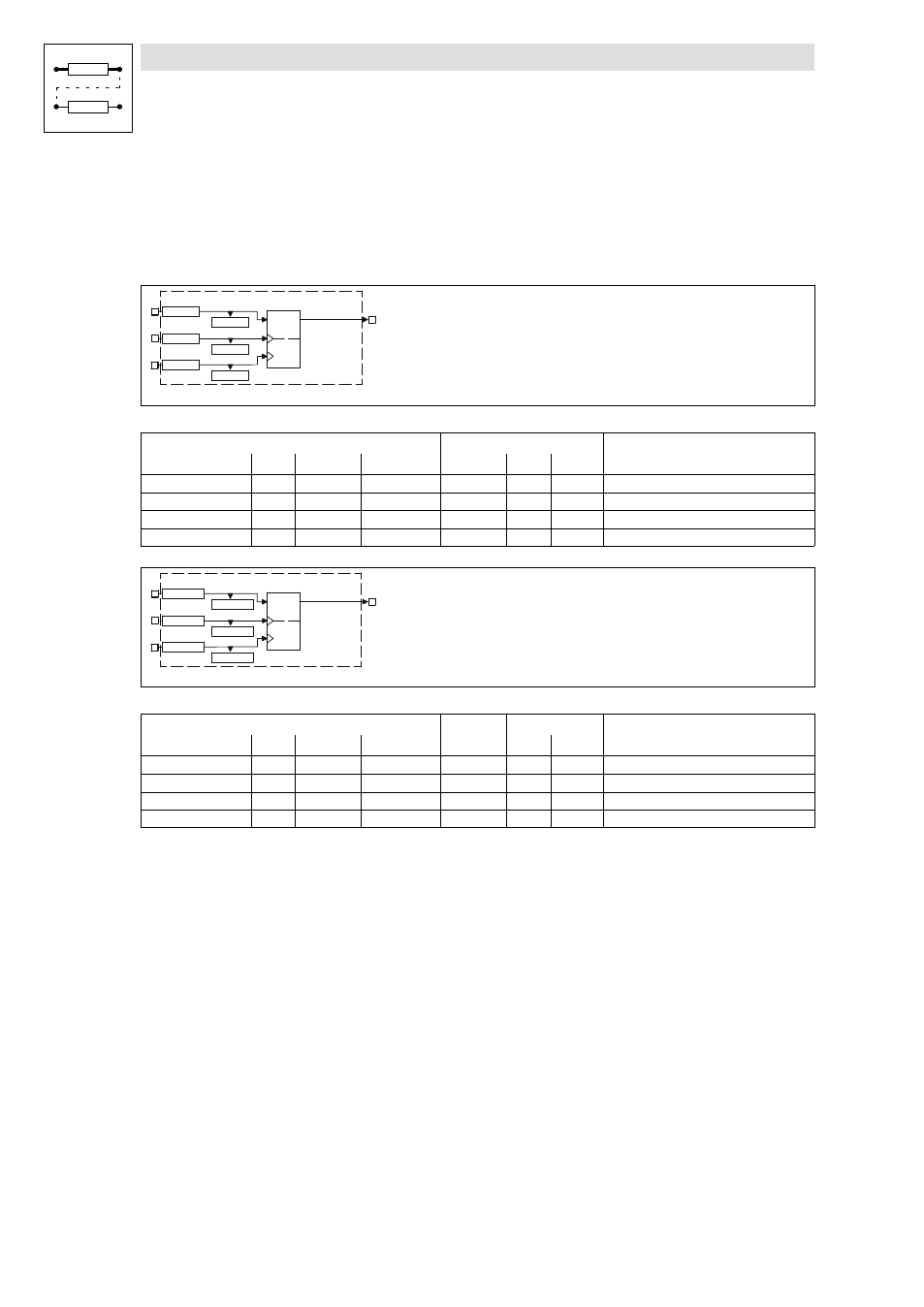

Fig. 3−144 Flipflop element (FLIPT1)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
FLIPT1−D d C1061/7 bin C1060/7 2 1000 −
FLIPT1−CLK d C1061/8 bin C1060/8 2 1000 Evaluates LOW−HIGH edges only
FLIPT1−CLR d C1061/9 bin C1060/9 2 1000 Evaluates LOW−HIGH edges only
FLIPT1−OUT d − − − − − −
FLIPT2−D
FLIPT2−CLR
FLIPT2
FLIPT2−OUT
D
clR
Q C1061/10
C1061/12
FLIPT2−CLK
C1061/11
C1060/10
C1060/11
C1060/12
fb_flipt2
Fig. 3−145 Flipflop element (FLIPT2)
Signal Source Source Note
Name Type DIS DIS format CFG List Lenze
FLIPT2−D d C1061/10 bin C1060/10 2 1000 −
FLIPT2−CLK d C1061/11 bin C1060/11 2 1000 Evaluates LOW−HIGH edges only
FLIPT2−CLR d C1061/12 bin C1060/12 2 1000 Evaluates LOW−HIGH edges only
FLIPT2−OUT d − − − − − −
