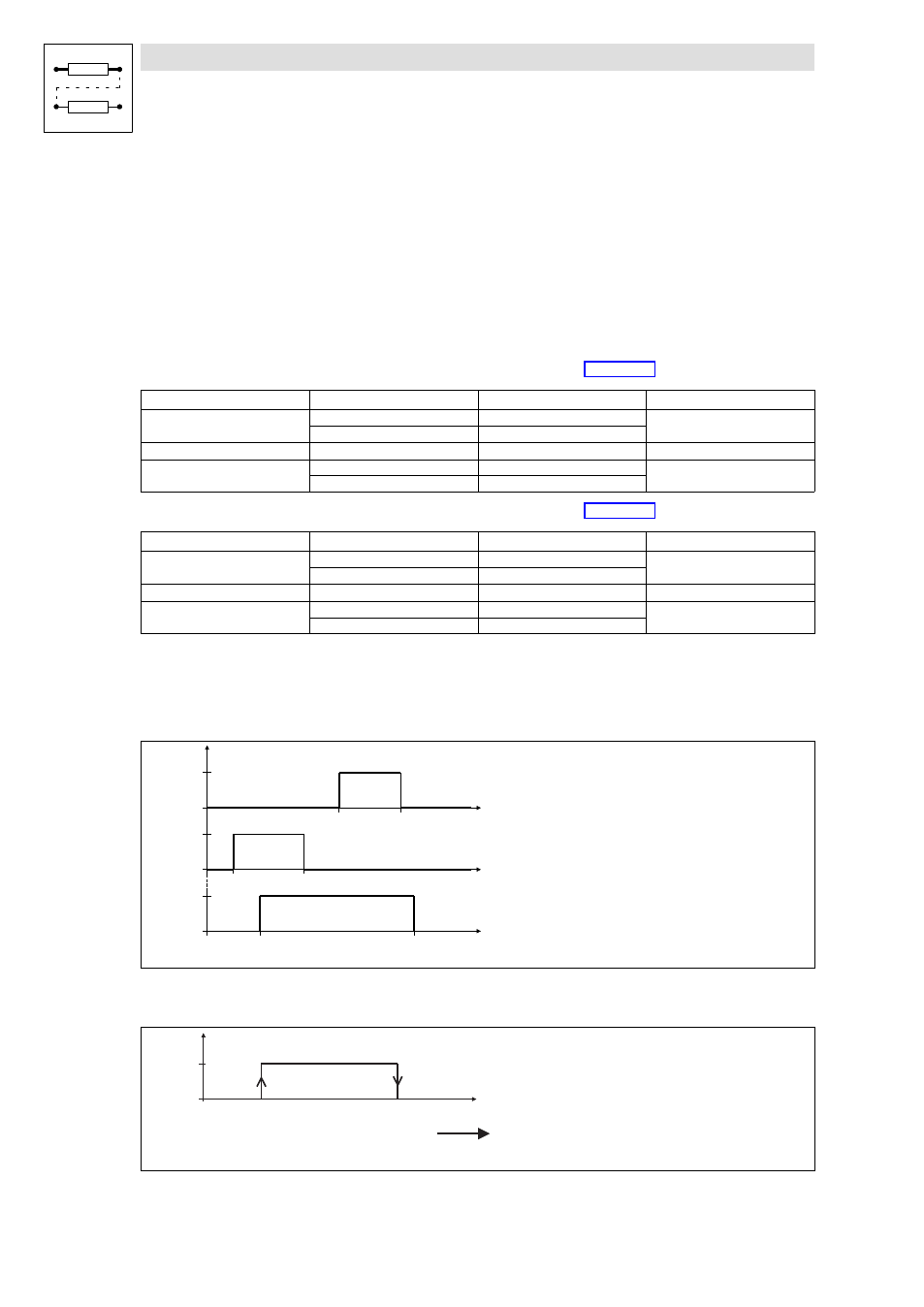

3.2.89 Position switch points (SPC)
3−286
l
EDSVS9332K−EXT EN 4.0
3.2.89.1 Switching points
l Switching points can be set in two ways:
– Mode 1: Start and end position
– Mode 2: Centre with switching range
l The switching points are selected by means of the variable table VTPOSC.
– Direct input of switch−on and switch−off positions, centre and switching range in VTPOSC.
l If the value at SPCx−L−IN is within the range of the switching points sets, SPCx−STATx = HIGH
Assignment of switch−on and switch−off positions for SPC1 (see Fig. 3−230):
Code Subcode Switching point Output FB
C1641 1 IN1−1 SPC1−STAT1
2 IN1−2
... ... ... ...
C1641 15 IN8−1 SPC1−STAT8
16 IN8−2
Assignment of switch−on and switch−off positions for SPC2 (see Fig. 3−231):
Code Subcode Switching point Output FB
C1651 1 IN1−1 SPC2−STAT1
2 IN1−2
... ... ... ...
C1651 15 IN8−1 SPC2−STAT8
16 IN8−2
Mode 1: Start and end position
C1645 = Set 0 (SPC1)
C1655 = Set 0 (SPC2)
SPx-L-IN
SPx-L-IN
SPx-L-IN
SPx-STAT1
SPx-STAT2
SPx-STAT8
IN1-1 IN1-2
IN2-1 IN2-2
IN8-1 IN8-2
HIGH
LOW
HIGH
LOW
HIGH
LOW
Fig. 3−232 Switch−on and switch−off positions for SPCx−STAT1, SPCx−STAT2 and SPCx−STAT8
Switch−on and switch−off positions depend on the travel direction:
S P x - S T A T x
S P x - L - I N I N x - 1
H I G H
L O W
I N x - 2
T r a v e l d i r e c t i o n
( O N ) ( O F F )
Fig. 3−233 Definition of a switch−on and switch−off position according to the travel direction
