Function library
Function blocks
3.2.3 Function block CDATA
3−35
l
EDSVS9332K−EXT EN 4.0
3.2.3.13 Feed drive with profiles
The main characteristic of such a profile is that initial and end value are not identical.
Application examples:
l Rotary table, conveying belt (movement in one direction), material guide
This function is selected with CDATA−REL−SEL = HIGH
Y
X
Y
X

0 0 0 0
‚

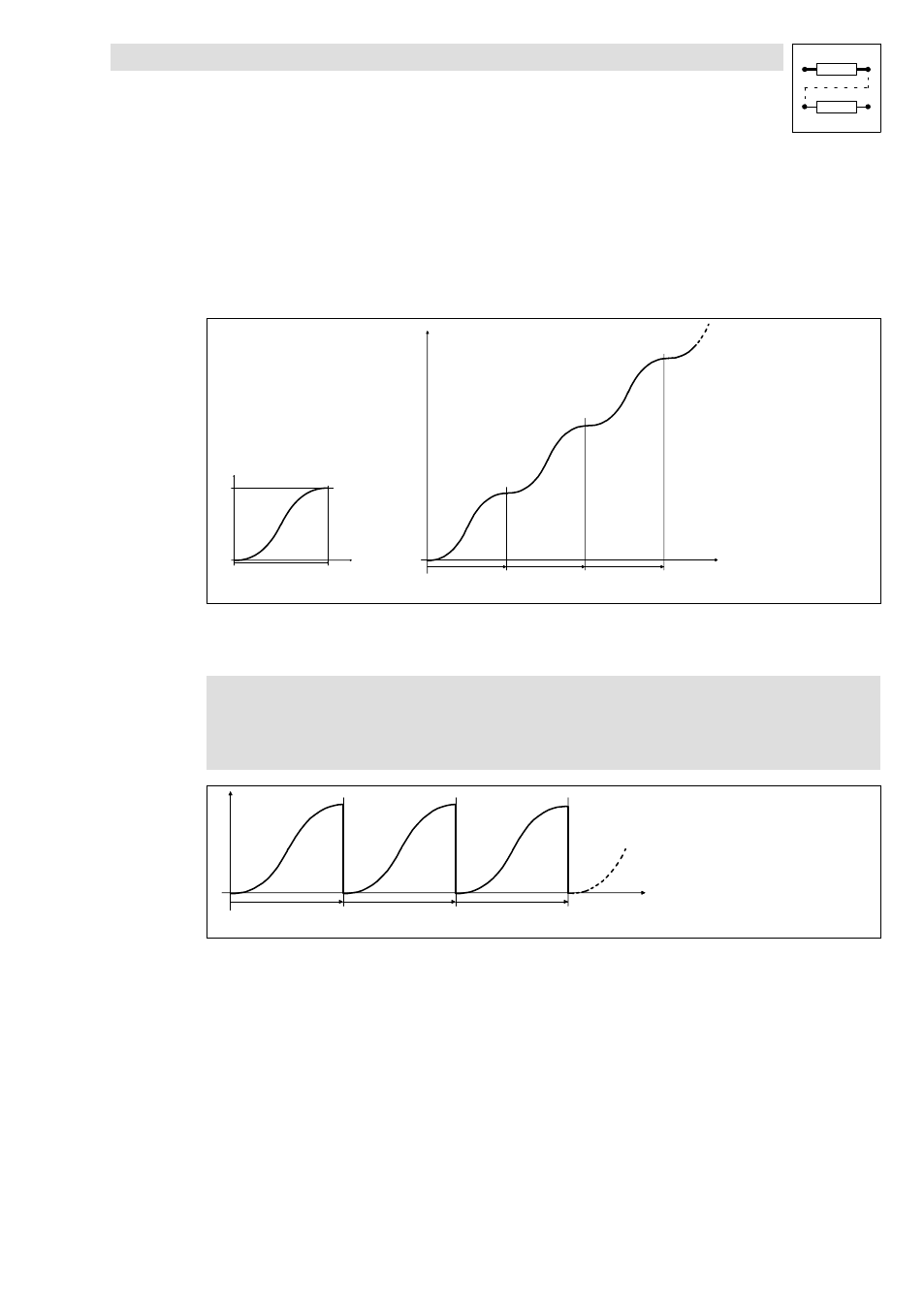

 Individual profile
‚ Endless profile
0 Profile length
(
Stop!
The input CDATA−REL−SEL must not be set to LOW with endless feeds.
In some cases torque peaks may occur and damage the machine.
Y
X 0 0 0
Fig. 3−14 CDATA_REL−SEL = LOW of an endless feed
0
Profile length
Reset CDATA−NOUT
After a feeding process, the traverse path is backed with CDATA−REL−SEL = LOW (signal at
CDATA−NOUT). In the case of long traverse paths, this procedure takes an accordingly long time.
You can set the signal at CDATA−NOUT to 0 directly:
1. Set C1297 = 1.
2. Set CDATA−REL−SEL = LOW and CDATA−X−RESET = HIGH.
– The drive is disconnected from the CDATA function block, and the speed signal at
CDATA−NOUT is reset to 0.
