Function library
Function blocks
3.2.101 Positioning control (VTPOSC)
3−321
l
EDSVS9332K−EXT EN 4.0

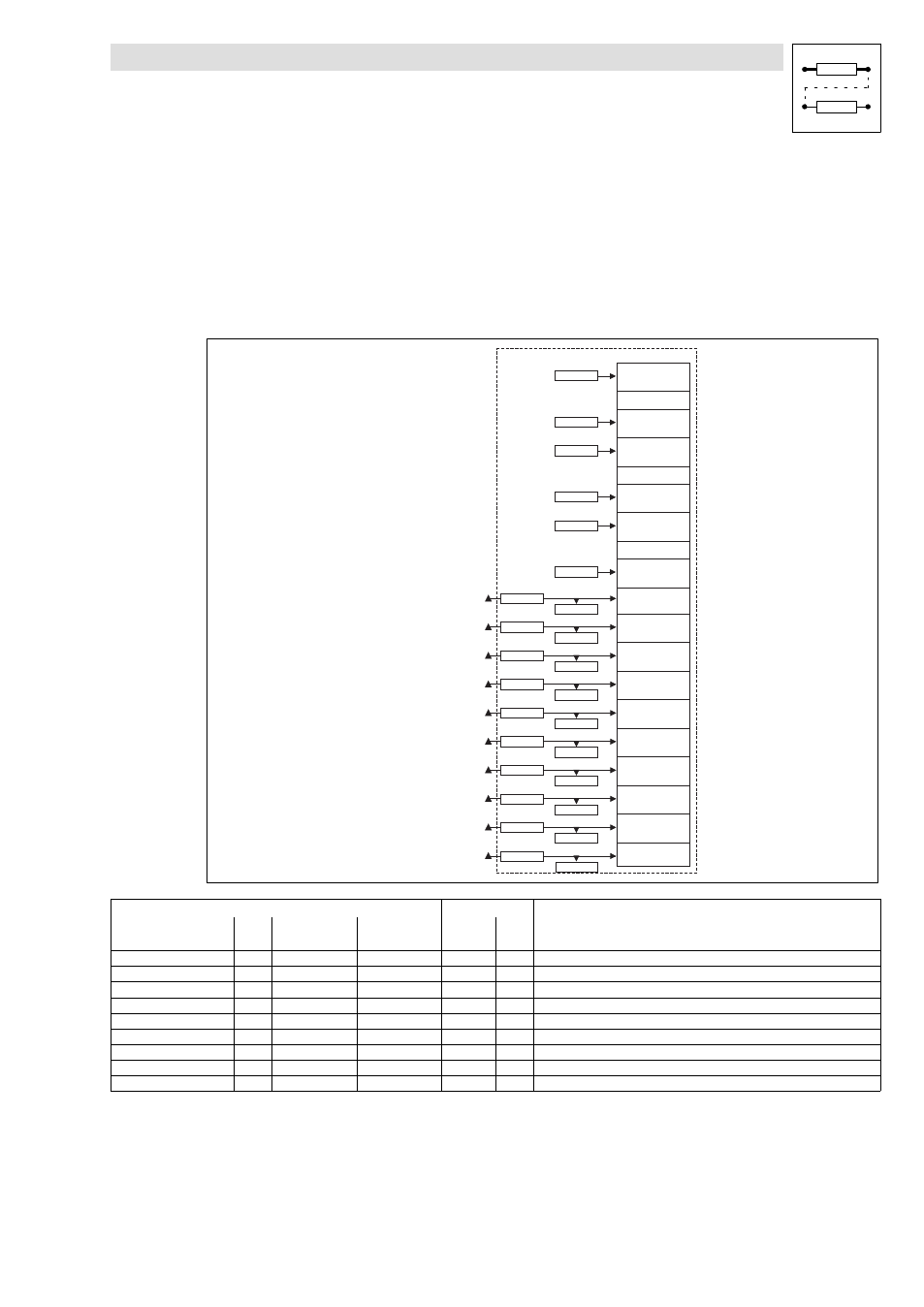

3.2.101 Positioning control (VTPOSC)
One function block (VTPOSC) is available.
Purpose
The FB is similar to the FB VTPOSC of the servo position controller (see System Manual Servo
Position Controller). Changes were made to adapt the FB to the cam profiler. It is used to provide the
switching point positions for the switching point function blocks (SPC1/2).
V T P O S C - I N 1
V T P O S C
C 1 3 6 0 / 1
C 1 3 6 1 / 1
V T P O S C - I N 2
C 1 3 6 0 / 2
C 1 3 6 1 / 2
V T P O S C - I N 9
C 1 3 6 0 / 9
C 1 3 6 1 / 9
C 1 4 7 6 / 1 6 V T P O S C - N o 1 6
V T P O S C - N o 4 3
V T P O S C - N o 4 4
V T P O S C - N o 5 1
V T P O S C - I N 1 0
C 1 3 6 0 / 1 0
C 1 3 6 1 / 1 0
V T P O S C - N o 5 2
C 1 4 7 6 / 1 V T P O S C - N o 1
. . .
V T P O S C - I N 3
C 1 3 6 0 / 3
C 1 3 6 1 / 3
V T P O S C - N o 4 5
V T P O S C - I N 4
C 1 3 6 0 / 4
C 1 3 6 1 / 4
V T P O S C - N o 4 6
V T P O S C - I N 5
C 1 3 6 0 / 5
C 1 3 6 1 / 5
V T P O S C - N o 4 7
V T P O S C - I N 6
C 1 3 6 0 / 6
C 1 3 6 1 / 6
V T P O S C - N o 4 8
V T P O S C - I N 7
C 1 3 6 0 / 7
C 1 3 6 1 / 7
V T P O S C - N o 4 9
V T P O S C - I N 8
C 1 3 6 0 / 8
C 1 3 6 1 / 8
V T P O S C - N o 5 0
...
C 1 4 7 7 / 1 6 V T P O S C - N o 3 2
C 1 4 7 7 / 1 V T P O S C - N o 1 7
. . . ...
C 0 4 7 4 / 1 0 V T P O S C - N o 4 2
C 0 4 7 4 / 1 V T P O S C - N o 3 3
. . .
...
Signal Source Note
Name Type DIS DIS format CFG List
VTPOSC−IN1 ph C1361/1 dec[inc] C1360/1 VTPOSC−No 43
VTPOSC−IN2 ph C1361/2 dec[inc] C1360/2 VTPOSC−No 44
VTPOSC−IN3 ph C1361/3 dec[inc] C1360/3 VTPOSC−No 45
VTPOSC−IN4 ph C1361/4 dec[inc] C1360/4 VTPOSC−No 46
VTPOSC−IN5 ph C1361/5 dec[inc] C1360/5 VTPOSC−No 47
VTPOSC−IN6 ph C1361/6 dec[inc] C1360/6 VTPOSC−No 48
VTPOSC−IN7 ph C1361/7 dec[inc] C1360/7 VTPOSC−No 49
VTPOSC−IN8 ph C1361/8 dec[inc] C1360/8 VTPOSC−No 50
VTPOSC−IN9 ph C1361/9 dec[inc] C1360/9 VTPOSC−No 51
VTPOSC−IN10 ph C1361/10 dec[inc] C1360/10 VTPOSC−No 52
