3.2.89 Position switch points (SPC)
3−288
l
EDSVS9332K−EXT EN 4.0
3.2.89.3 Dead time
This function is only available for FB SPC2.
Purpose
Delayed activation of downstream components (e.g. injection nozzles).
Function
l The dead time is selected under C1657.
– This setting is only possible for SPC2−STAT1 ... SPC2−STAT4.
Assignment of codes and outputs:
Code Subcode Output FB SPC2
C1657 1 SPC2−STAT1
2 SPC2−stat2
3 SPC2−stat3
4 SPC2−stat4
l The dead time has an effect on the switching points and the hysteresis.
Positive dead time
SP2-STATx
HIGH
LOW
SP2-STATx
HIGH
LOW
INx-1 INx-2 SP2-L-IN
INx-1 INx-2 SP2-L-IN
Travel direction
Travel direction
(positive dead time)
(positive dead time)
Tdead Tdead
Tdead Tdead
9300kur094

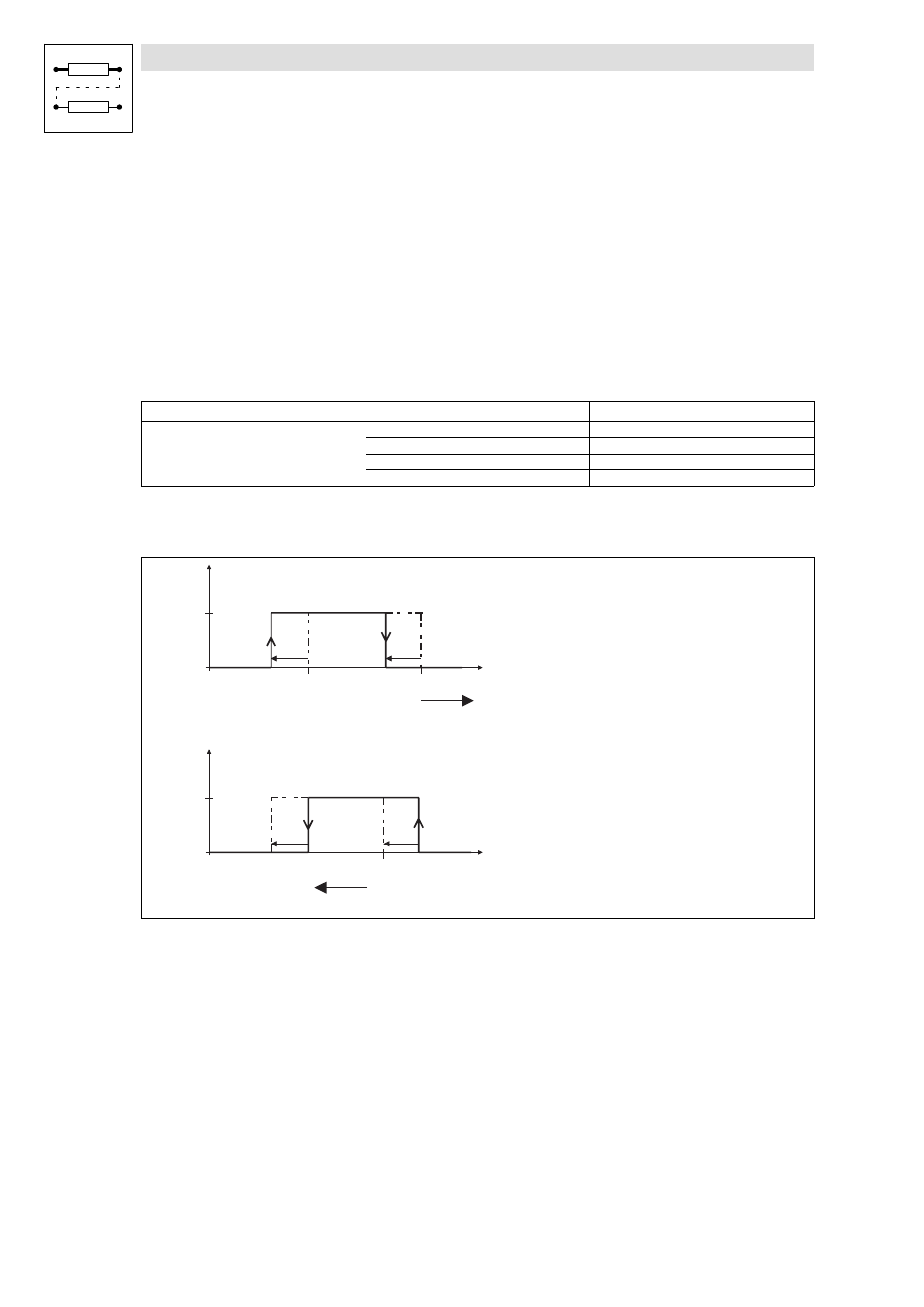

Fig. 3−236 Function of the positive dead time for different travel directions
l With a positive dead time, the switching of the output is advanced by the time set.
