3.2.29 Angle conversion (CONVPHA)
3−115
l
EDSVS9332K−EXT EN 4.0
3.2.29 Angle conversion (CONVPHA)
Purpose
l Converts a angle signal into an analog signal
or
l converts a angle difference signal into a speed signal.
C 1 0 0 2
C O N V P H A 1
C O N V P H A 1 - I N
C 1 0 0 1
C 1 0 0 0
1
2
± 1 9 9 , 9 9 %
- O U T 2
- O U T

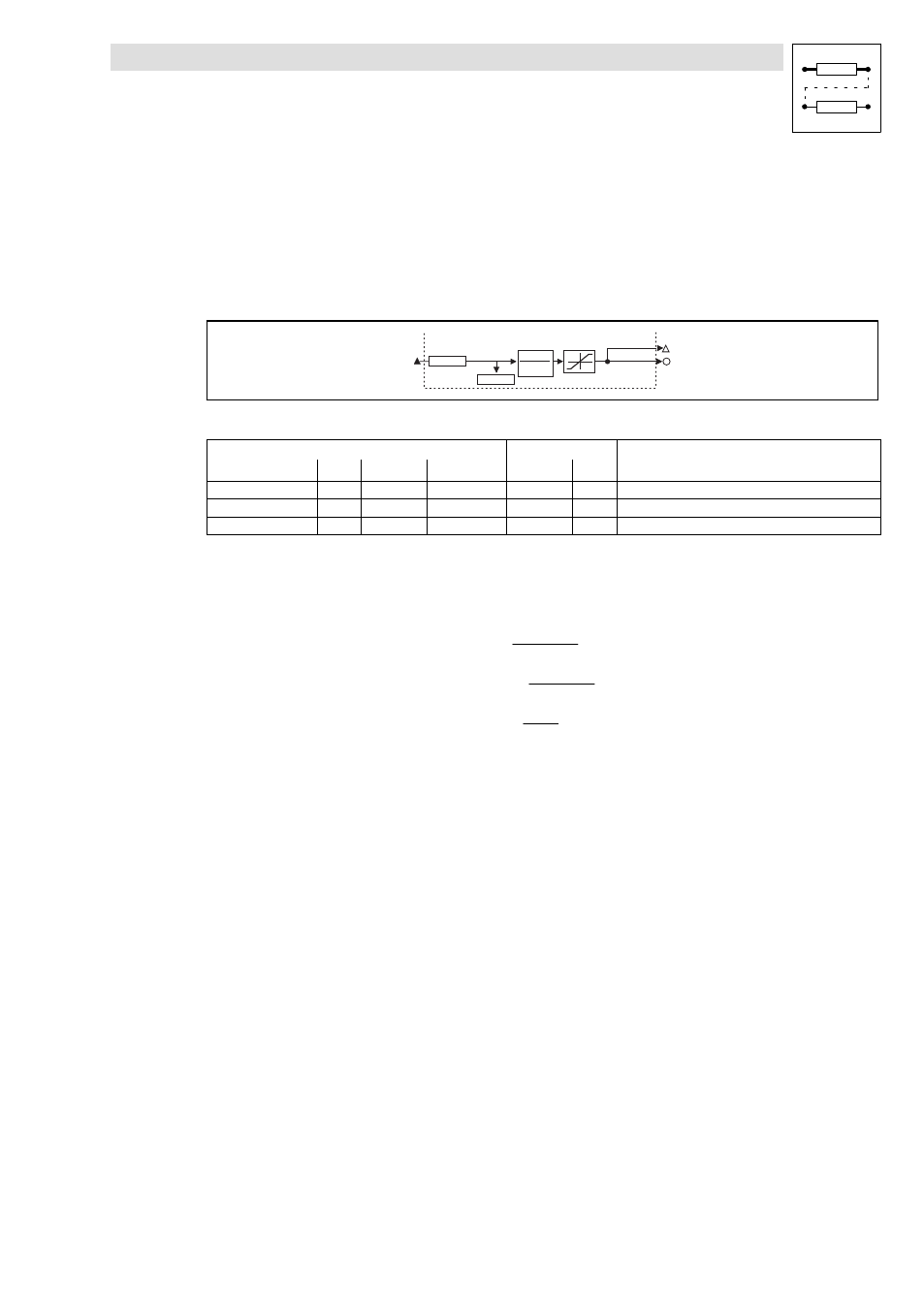

Fig. 3−87 Angle conversion (CONVPHA1)
Signal Source Note
Name Type DIS DIS format CFG List
CONVPHA1−IN ph C1002 dec [inc] C1001 3 −
CONVPHA1−OUT a − − − − Limited to ±199.99 %, remainder considered
CONVPHA1−OUT2 phd − − − − Limited to ±32767 rpm, remainder considered
Function
l Conversion with adaptation using a divisor.
l Conversion according to formula:
CONVPHA1−OUT [%] + CONVPHA1−IN [inc] @ 100
2 14 @ 2 C1000
CONVPHA1−OUT2 [rpm] + CONVPHA1−IN [inc] @ 15000
2 14 @ 2 C1000
CONVPHA1−OUT2 [inc] + CONVPHA1−IN [inc] @ 1
2 C1000
