Lenze EVS9332xK - Manual (Page 144)

Function library
Function blocks
3−116
l
EDSVS9332K−EXT EN 4.0
CONVPHA2
CONVPHA2
CONVPHA2-OUT
C1612
± 199,99%
CONVPHA2-IN
C1611
2 C1610
1

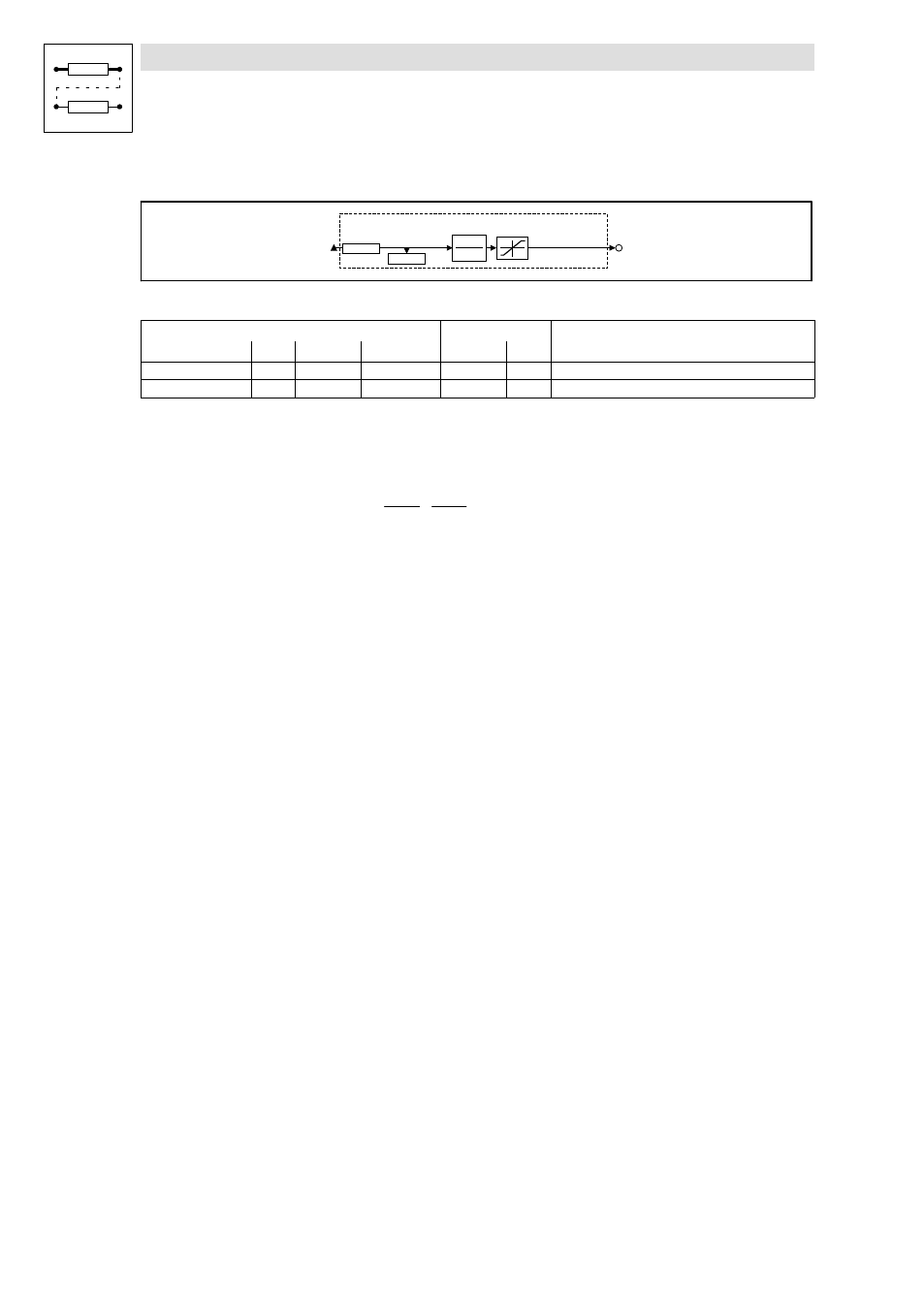

Fig. 3−88 Function block CONVPHA2
Signal Source Note
Name Type DIS DIS format CFG List
CONVPHA2−IN ph C1612 dec [inc] C1611 3 −
CONVPHA2−OUT a − − − − Limited to ±199.99 %, remainder not considered
Function
l Conversion with adaptation using divisor.
l Conversion according to formula:
CONVPHA2–OUT + CONVPHA2–IN @ 1
2 C1610
@ 100%
16384
