Function library
Function blocks
3.2.66 Master selection (MSEL)
3−216
l
EDSVS9332K−EXT EN 4.0
MSEL2
M S E L 2
M S E L 2 - O U T
M S E L 2 - M 1 P O S
M S E L 2 - M V A L
C 1 3 9 6 / 1
C 1 3 9 7 / 1
M S E L 2 - E N - M 1
C 1 3 9 4 / 6
C 1 3 9 5 / 6
C 1 3 9 6 / 2
C 1 3 9 7 / 2
M S E L 2 - E N - M 2
C 1 3 9 4 / 7
C 1 3 9 5 / 7
C 1 3 9 6 / 3
C 1 3 9 7 / 3
M S E L 2 - E N - M 3
C 1 3 9 4 / 8
C 1 3 9 5 / 8
C 1 3 9 6 / 4
C 1 3 9 7 / 4
M S E L 2 - E N - M 4
C 1 3 9 4 / 9
C 1 3 9 5 / 9
M S E L 2 - L O C K
C 1 3 9 4 / 1 0
C 1 3 9 5 / 1 0
M S E L 2 - M 2 P O S
M S E L 2 - M 3 P O S
M S E L 2 - M 4 P O S
C T R L

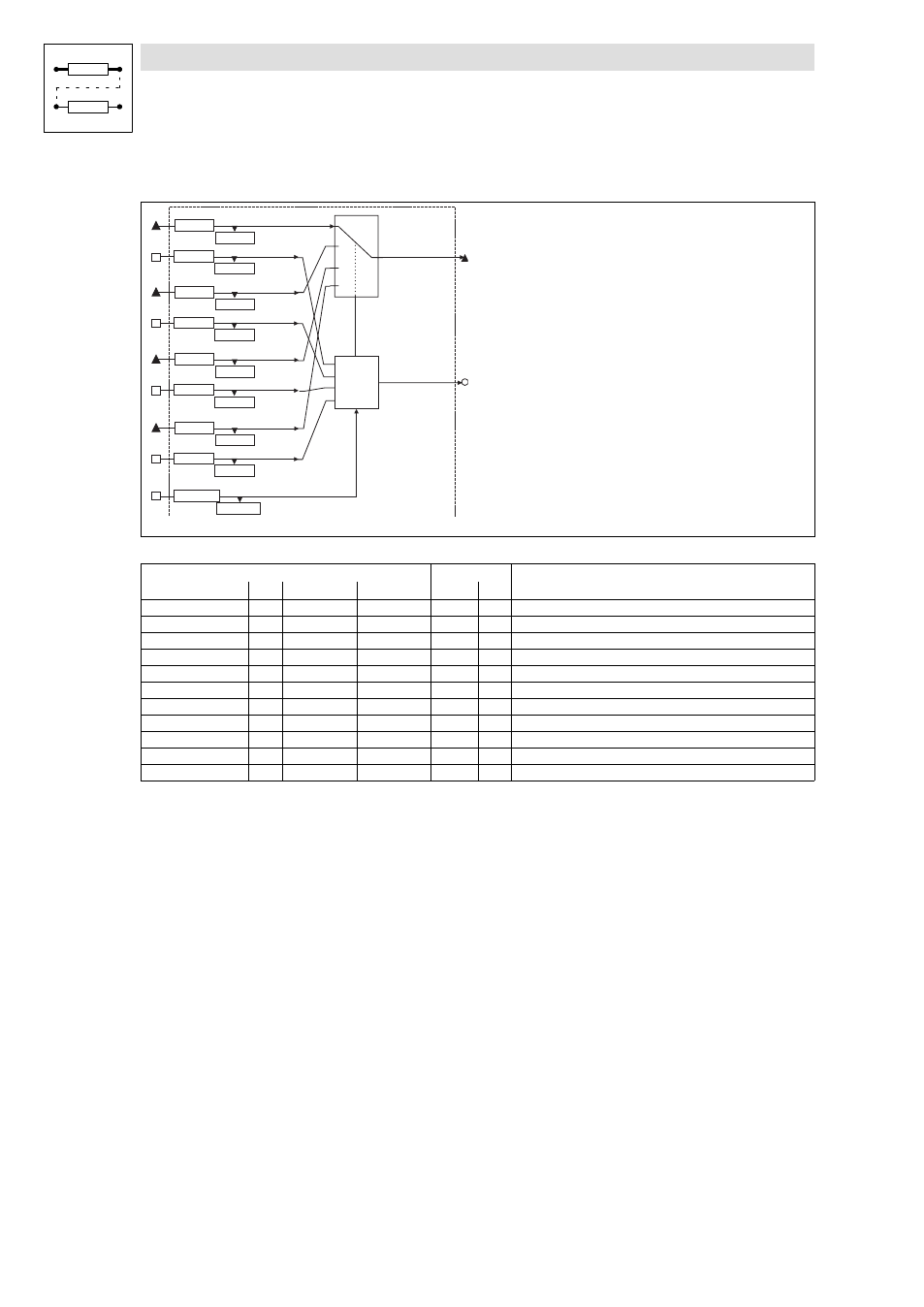

Fig. 3−164 Master selection (MSEL2)
Signal Source Note
Name Type DIS DIS format CFG List
MSEL2−EN−M1 d 1395/6 bin 1394/6 2 Activation of master value 1
MSEL2−EN−M2 d 1395/7 bin 1394/7 2 Activation of master value 2
MSEL2−EN−M3 d 1395/8 bin 1394/8 2 Activation of master value 3
MSEL2−EN−M4 d 1395/9 bin 1394/9 2 Activation of master value 4
MSEL2−LOCK d 1395/10 bin 1394/10 2 Locking
MSEL2−M1POS ph 1397/1 dec [inc] 1396/1 4 Master angle input 1
MSEL2−M2POS ph 1397/2 dec [inc] 1396/2 4 Master angle input 2
MSEL2−M3POS ph 1397/3 dec [inc] 1396/3 4 Master angle input 3
MSEL2−M4POS ph 1397/4 dec [inc] 1396/4 4 Master angle input 4
MSEL2−OUT ph 13711 − − − Master angle output
MSEL2−MVAL a 13711 − − − Currently selected master angle input
