Function library
Function blocks
3.2.80 Delay element (PT1−1)
3−257
l
EDSVS9332K−EXT EN 4.0
3.2.80 Delay element (PT1−1)
Purpose
Filtering and delaying of analog signals.

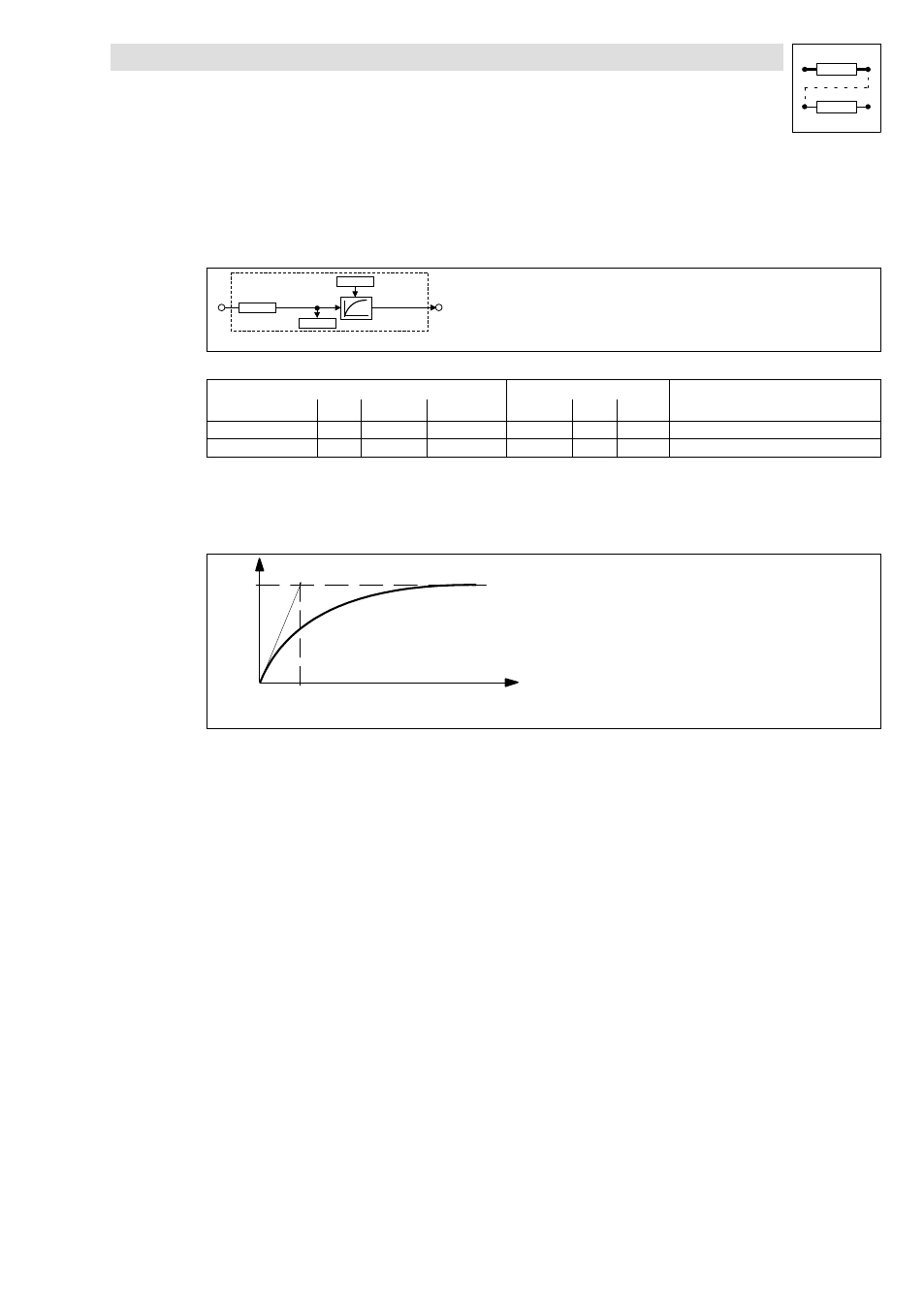

PT1-1
PT1-1-OUT PT1-1-IN
C0642
C0640
C0641
Fig. 3−207 Delay element (PT1−1)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
PT1−1−IN a C0642 dec [%] C0641 1 1000 −
PT1−1−OUT a − − − − − −
Function
l The delay time T is set under C0640.
l The proportional coefficient is fixed at K = 1.
t
T
K = 1
Fig. 3−208 Delay time T of the first order delay element
