Function library
Function blocks
3.2.10 AND operation (AND)
3−51
l
EDSVS9332K−EXT EN 4.0
Function of AND1 ... AND7
l ANDx−OUT = ANDx−IN1 Ù ANDx−IN2 Ù ANDx−IN3

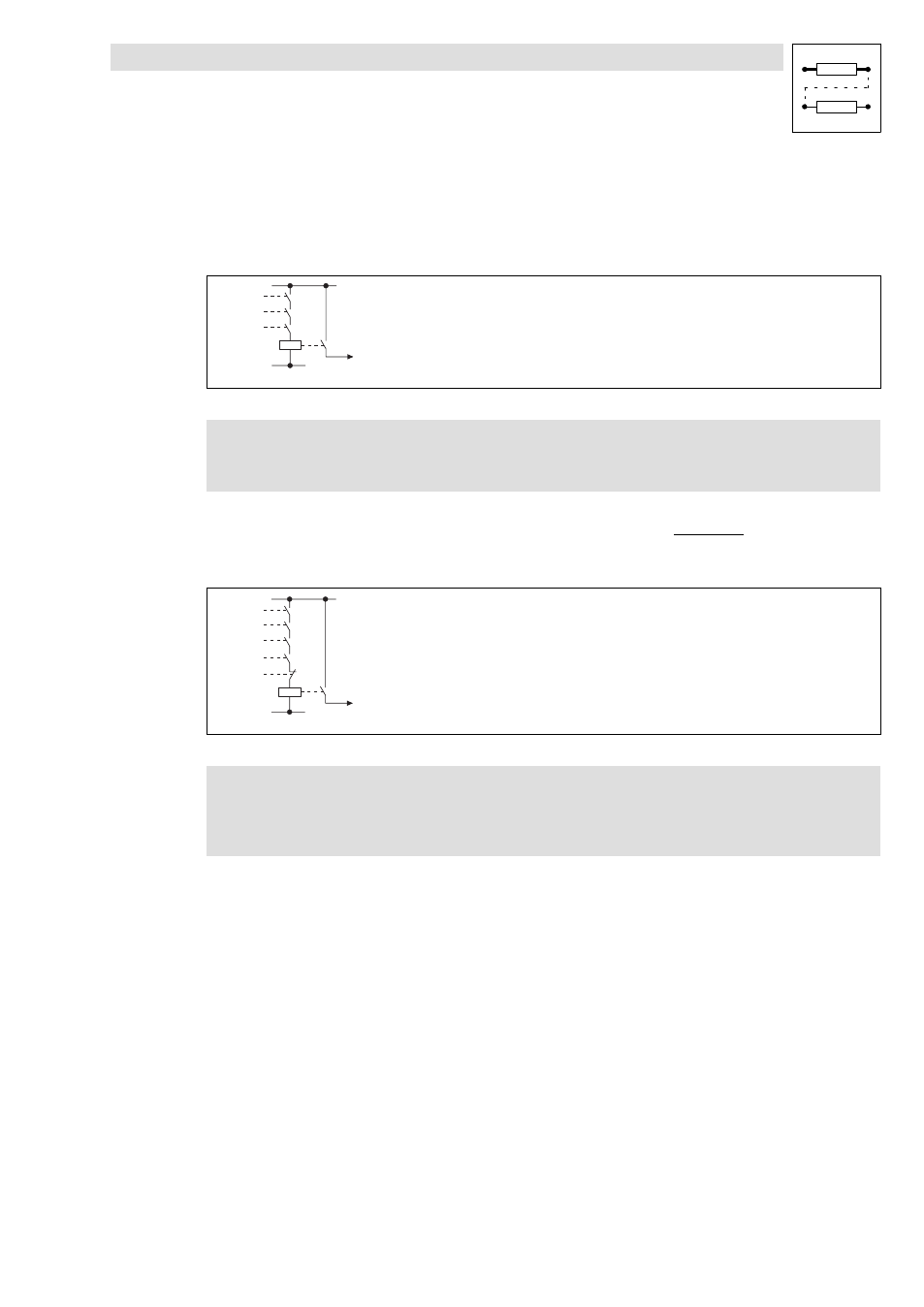

l Equivalent network:
ANDx-IN1
ANDx-IN2
ANDx-IN3
ANDx-OUT
9300kur069
Fig. 3−32 Equivalent network of the AND operation for AND1 ... AND7
)
Note!
Connect inputs that are not used to FIXED1.
Function of AND8, AND9
l ANDx−OUT = ANDx−IN1
Ù ANDx−IN2 Ù ANDx−IN3 Ù ANDx−IN4 Ù ANDx−IN5
l Equivalent network:
ANDx-IN1
ANDx-IN2
ANDx-IN3
ANDx-IN4
ANDx-IN5
ANDx-OUT
9300kur068
Fig. 3−33 Equivalent network of the AND operation for AND8 and AND9
)
Note!
l ANDx−IN1 ... ANDx−IN4: Connect inputs that are not used to FIXED1.
l Connect ANDx−IN5 to FIXED0 if you do not use the input.
