Function library
Function blocks
3.2.72 Angle addition block (PHADD)
3−237
l
EDSVS9332K−EXT EN 4.0
3.2.72 Angle addition block (PHADD)
Purpose
Adds or subtracts angle signals depending on the input used.
FB_phadd1
+
+ +
−
PHADD1
PHADD1−OUT PHADD1−IN1
C1201/1
PHADD1−IN2
C1201/2
PHADD1−IN3
C1201/3
C1200/1
C1200/2
C1200/3
PHADD1−OUT2
±2 31 −1

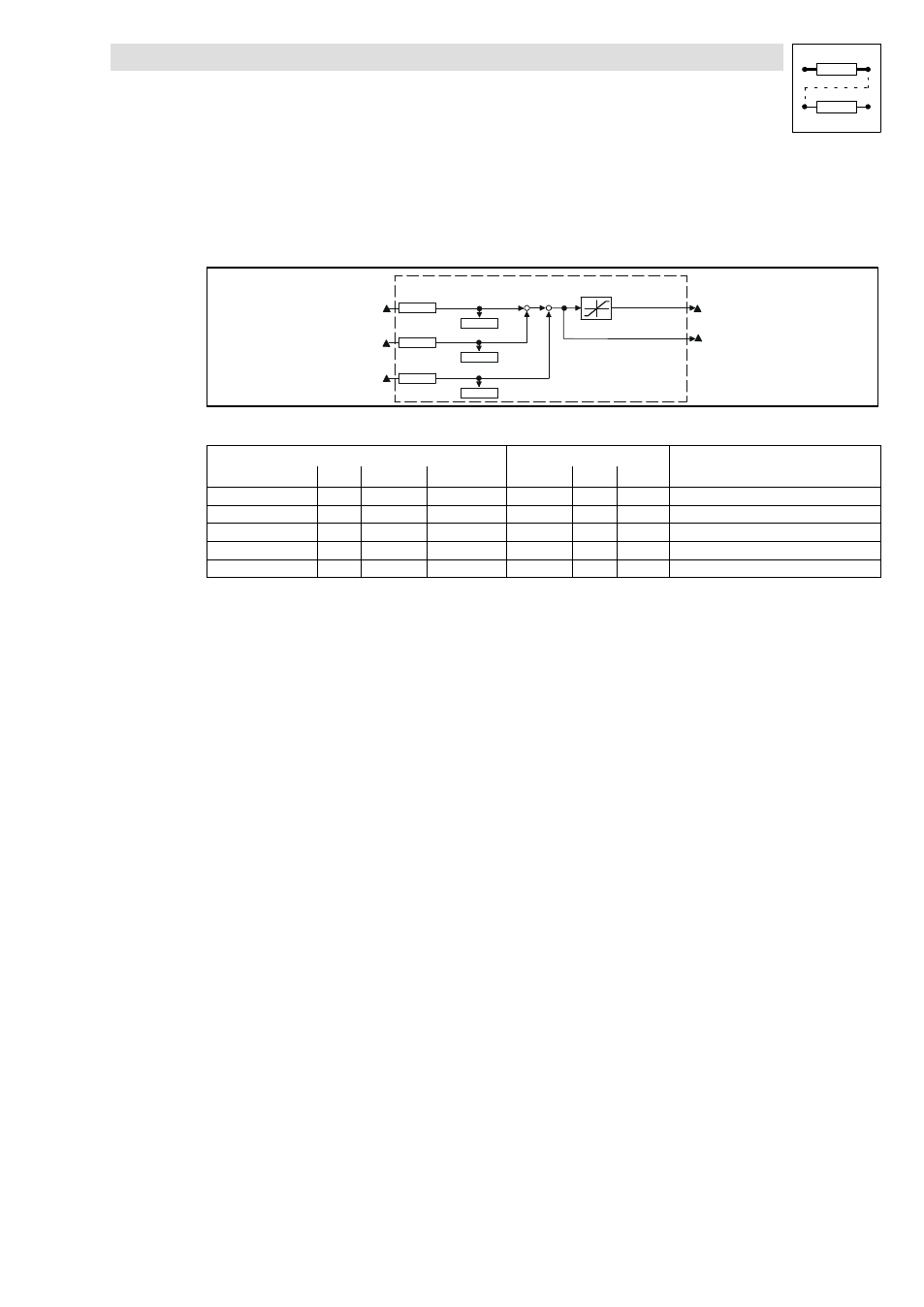

Fig. 3−189 Angle addition block (PHADD1)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
PHADD1−IN1 ph C1201/1 dec [inc] C1200/1 3 1000 Addition input
PHADD1−IN2 ph C1201/2 dec [inc] C1200/2 3 1000 Addition input
PHADD1−IN3 ph C1201/3 dec [inc] C1200/3 3 1000 Subtraction input
PHADD1−OUT ph − − − − − Limited to ±2147483647
PHADD1−OUT2 ph − − − − − −
Function
l Input PHADD1−IN1 is added to input PHADD1−IN2.
l The input PHADD−IN3 is subtracted from the calculated result.
l Then the result of the subtraction
– is limited to ±2147483647 and output at PHADD1−OUT.
– is output at PHADD1−OUT2 without limitations.
