Function library
Function blocks
3.2.69 OR operation (OR)
3−228
l
EDSVS9332K−EXT EN 4.0
OR6
OR6-IN2
OR6-IN1
OR6-IN3
OR6-IN4
OR6-IN5
OR6-OUT
C0839/5
C0839/4
C0839/6
C0839/7
C0839/8
C0838/5
C0838/4
C0838/6
C0838/7
C0838/8
1 >
fb_or6

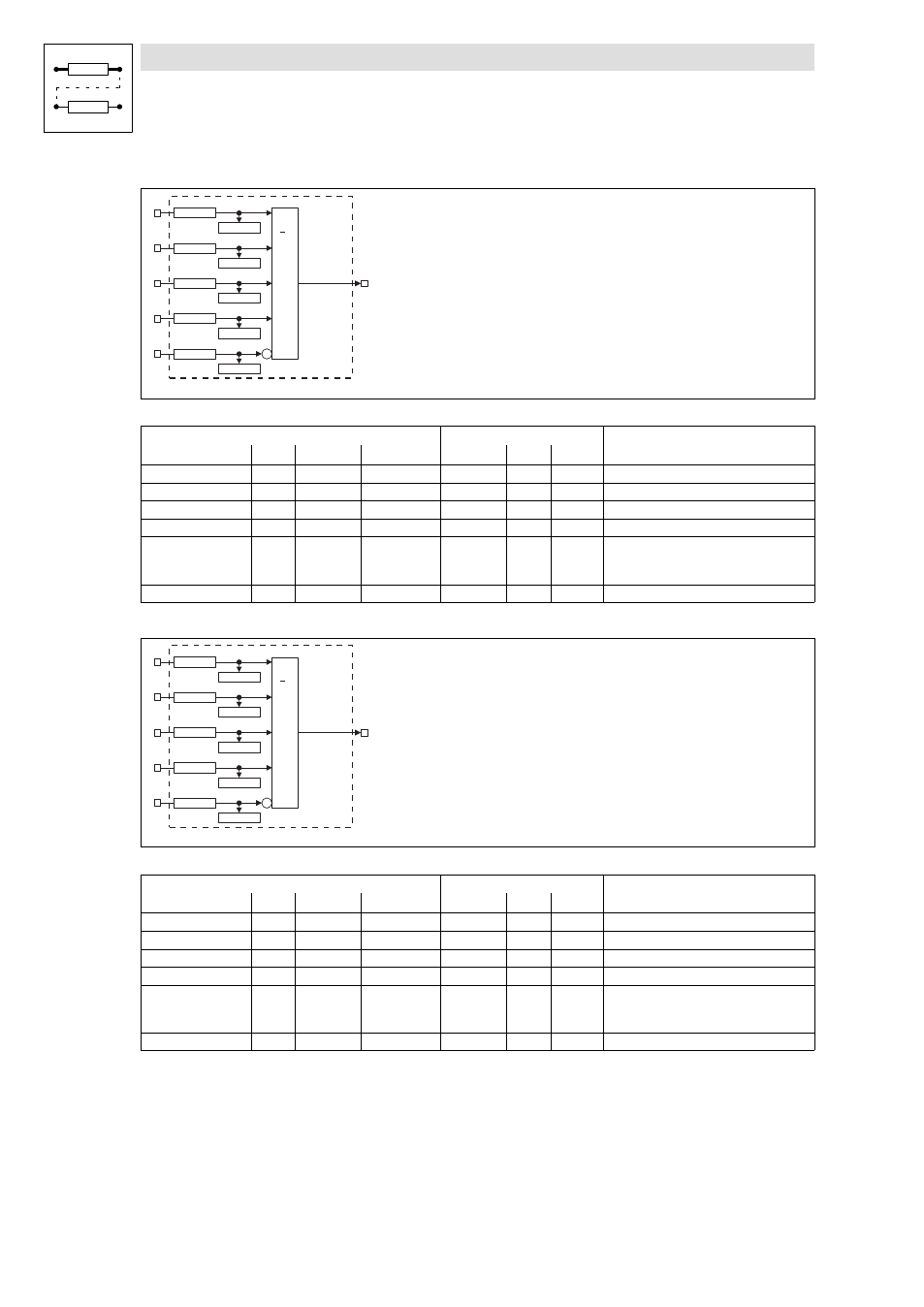

Fig. 3−178 OR operation (OR6)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
OR6−IN1 d C0839/4 bin C0838/4 2 1000 −
OR6−IN2 d C0839/5 bin C0838/5 2 1000 −
OR6−IN3 d C0839/6 bin C0838/6 2 1000 −
OR6−IN4 d C0839/7 bin C0838/7 2 1000 −
OR6−IN5 d C0839/8 bin C0838/8 2 1000 The input signal is inverted internally (NOT).
The input has to be assigned to FIXED1 if it
remains unused.
OR6−OUT d − − − − − −
OR7
OR/-IN2
OR/-IN1
OR/-IN3
OR/-IN4
OR7-IN5
OR/-OUT
C0839/10
C0839/9
C0839/11
C0839/12
C0839/13
C0838/10
C0838/9
C0838/11
C0838/12
C0838/13
1 >
fb_or7
Fig. 3−179 OR operation (OR7)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
OR7−IN1 d C0839/9 bin C0838/9 2 1000 −
OR7−IN2 d C0839/10 bin C0838/10 2 1000 −
OR7−IN3 d C0839/11 bin C0838/11 2 1000 −
OR7−IN4 d C0839/12 bin C0838/12 2 1000 −
OR7−IN5 d C0839/13 bin C0838/13 2 1000 The input signal is inverted internally (NOT).
The input has to be assigned to FIXED1 if it
remains unused.
OR7−OUT d − − − − − −
