Function library
Function blocks
3.2.75 Signal adaptation for angle signals (PHDIV)
3−241
l
EDSVS9332K−EXT EN 4.0
3.2.75 Signal adaptation for angle signals (PHDIV)
Purpose
Power−of−two division or multiplication of angle signals.
PHDIV1-IN
C0996
C0997
C0995
1
2
±32767
Revolution
PHDIV1-OUT
PHDIV1

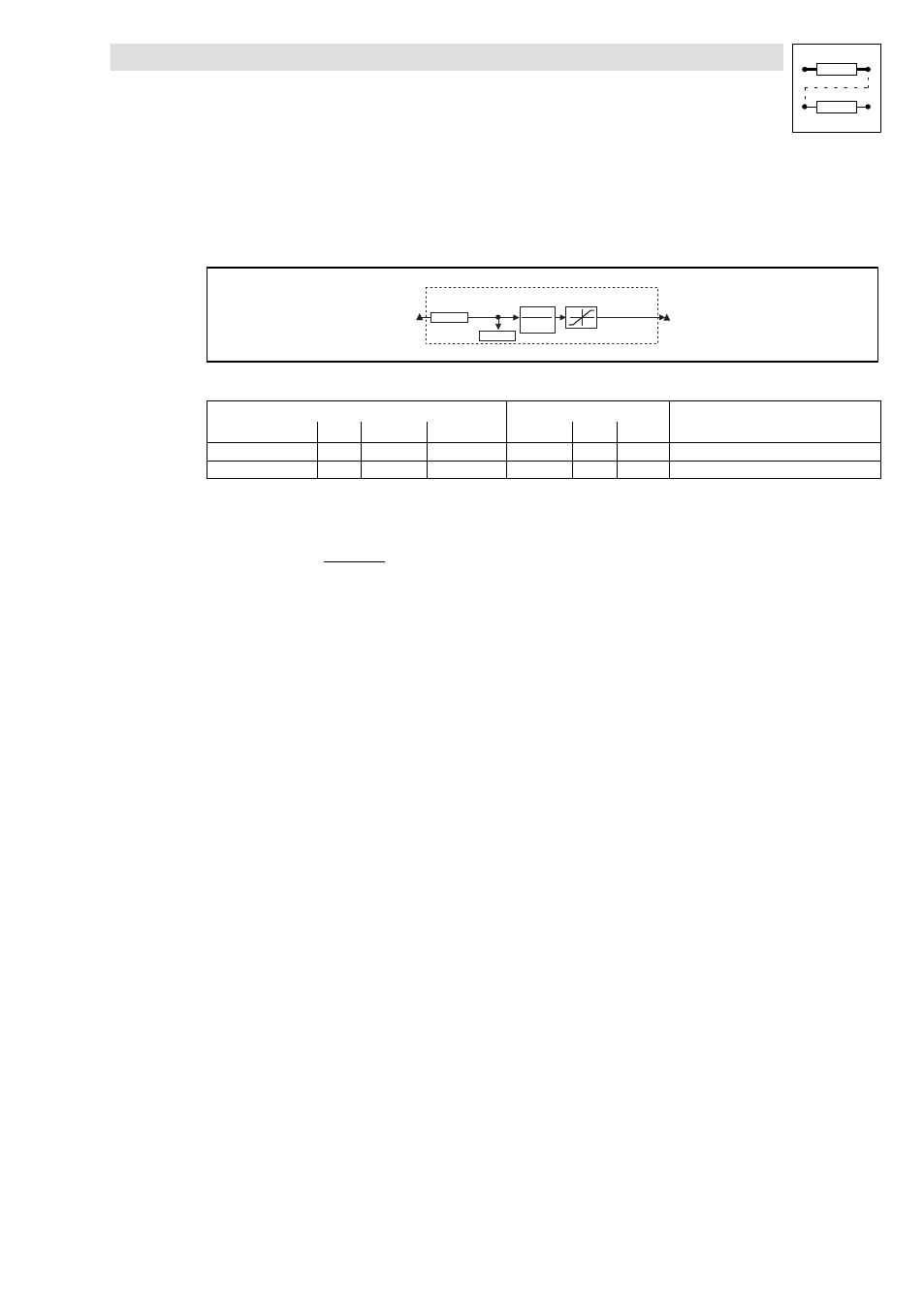

Fig. 3−195 Signal adaptation for angle signals (PHDIV1)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
PHDIV1−IN ph C0997 dec [inc] C0996 3 1000
PHDIV1−OUT ph − − − − − 65536 inc = one encoder revolution
Function
l Arithmetic function:
PHDIV1−OUT + PHDIV1−IN
2 C0995
– Positive values in C0995 result in a division.
– Negative values in C0995 result in a multiplication.
l The output value is limited to ±(2 31 −1) inc (corresponds to ±32767 encoder revolutions).
– If the limit is exceeded, the output is kept at the limit value.
