Lenze EVS9332xK - Manual (Page 140)

Function library
Function blocks
3.2.27 Analog/digital converter (CONVAD)
3−112
l
EDSVS9332K−EXT EN 4.0
3.2.27 Analog/digital converter (CONVAD)
Conversion of an analog value into individual digital signals.
CONVAD1-IN
CONVAD1
C1580
C1581
CONVAD1.B0
CONVAD1.B1
CONVAD1.B2
CONVAD1.B3
CONVAD1.B4
CONVAD1.B5
CONVAD1.B6
CONVAD1.B7
CONVAD1.B8
CONVAD1.B9
CONVAD1.B10
2 0
2 1
2 2
2 3
2 4
2 5
2 6
2 7
2 8
2 9
2 10
CONVAD1.B11
2 11
CONVAD1.B12
2 12
CONVAD1.B13
2 13
CONVAD1.B14
2 14
CONVAD1-SIGN
2 15

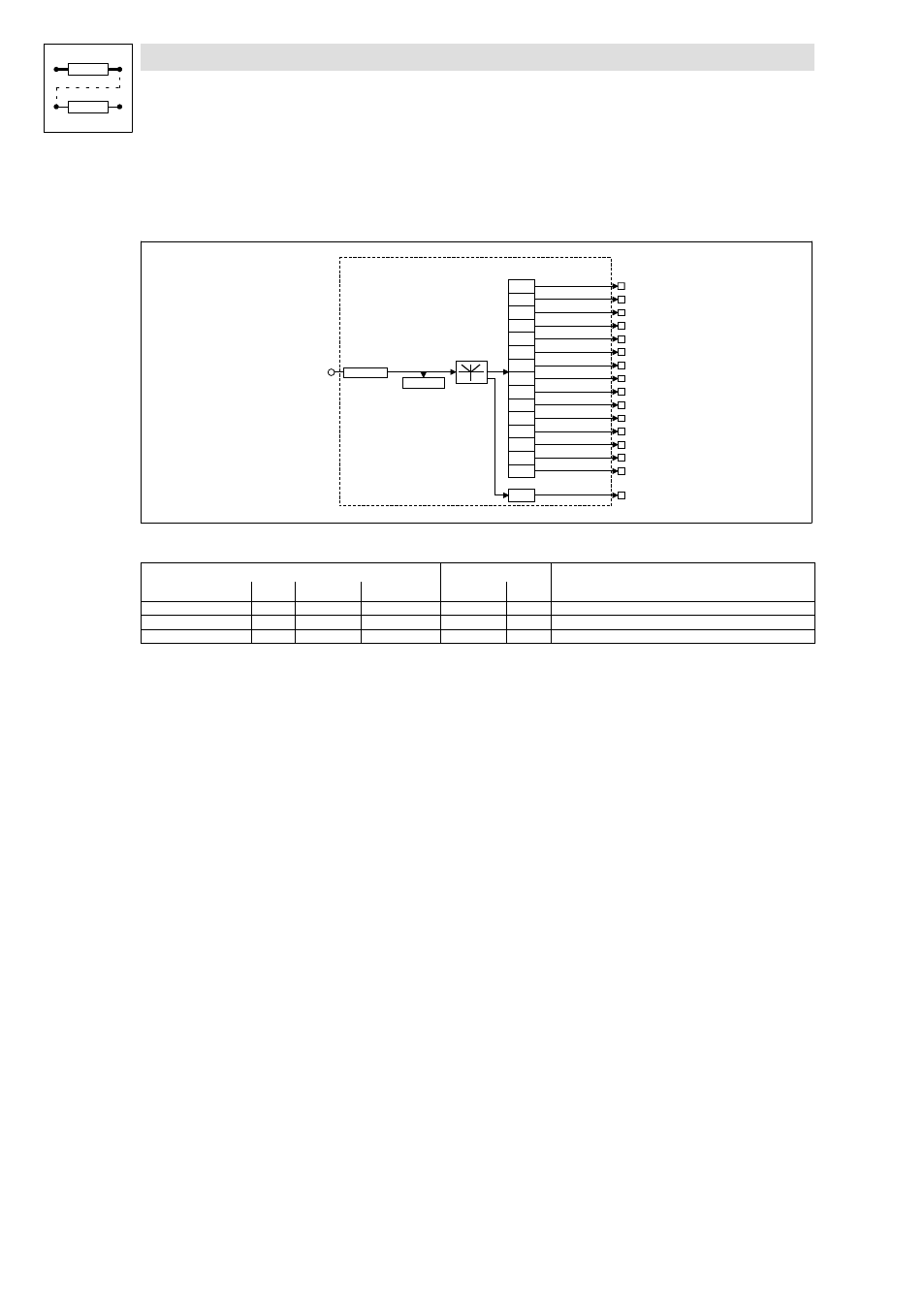

Fig. 3−85 Analog/digital converter (CONVAD1)
Signal Source Note
Name Type DIS DIS format CFG List
CONVAD1−IN a C1581 dec C1580 1 −
CONVAD1.B0 ... B14 d − − − − −
CONVAD1−SIGN d − − − − Sign digit
