3.2.76 Angle integrator (PHINT1, PHINT2, PHINT3)
3−244
l
EDSVS9332K−EXT EN 4.0
3.2.76.1 Constant input value (PHINT1 and PHINT2)
P H I N T x - O U T
+ 3 2 7 6 7 r e v .
- 3 2 7 6 7 r e v .
+ 3 2 0 0 0
- 3 2 0 0 0
t
P H I N T x - F A I L
t

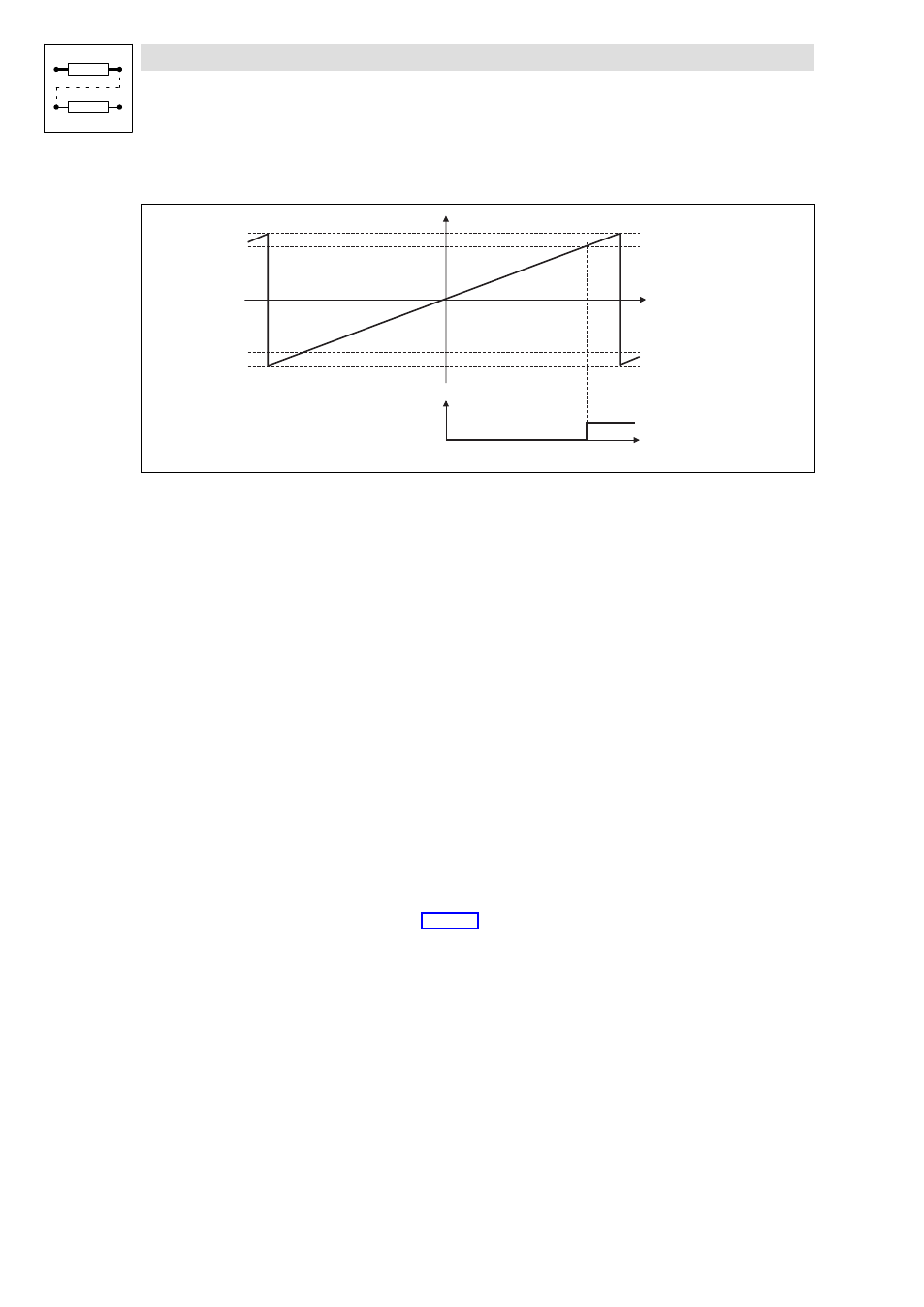

Fig. 3−199 Function of PHINTx with constant input value
l The FB integrates speed or velocity values at PHINTx−IN to a angle (distance).
l PHINTx−OUT outputs the counter content of the bipolar integrator.
– A positive value at PHINTx−IN increments the integrator (counter content is increased).
– A negative value at PHINTx−IN decrements the integrator (counter content is reduced).
l If the counter content exceeds the value of +32767 encoder revolutions (
¢ +2147483647 inc)
– an overflow occurs. The counting is continued with the value −32768.
– PHINTx−FAIL switches to HIGH when the value w +32000 is reached.
l If the counter content falls below the value of −32768 encoder revolutions
(
¢ −2147483648 inc)
– an overflow occurs. The counting starts at the value +32767.
– PHINTx−FAIL switches to HIGH when the value
v −32000 is reached.
l PHINT X −RESET = HIGH
– sets the integrator to 0
– sets PHINTx−OUT = 0, as long as a HIGH level is applied to PHINTx−IN.
– sets PHINTx−FAIL = LOW.
3.2.76.2 Constant input value (PHINT3)
The FB PHINT3 has three modes which can be set under C1150.
Mode C1150 = 2 is described in chapter 3.2.76.3.
