Function library
Function blocks
3.2.14 Arithmetic block (ARITPH)
3−56
l
EDSVS9332K−EXT EN 4.0
3.2.14 Arithmetic block (ARITPH)
Purpose
The FB ARITPH calculates a angle output signal from two angle input signals.
ARITPH1
+
-
*
/
C1010
x
y
ARITPH1
ARITPH1-OUT C1012/1
±2 -1 30
C1012/2
ARITPH1-IN1
Mode
ARITPH1-IN2
C1011/1
C1011/2

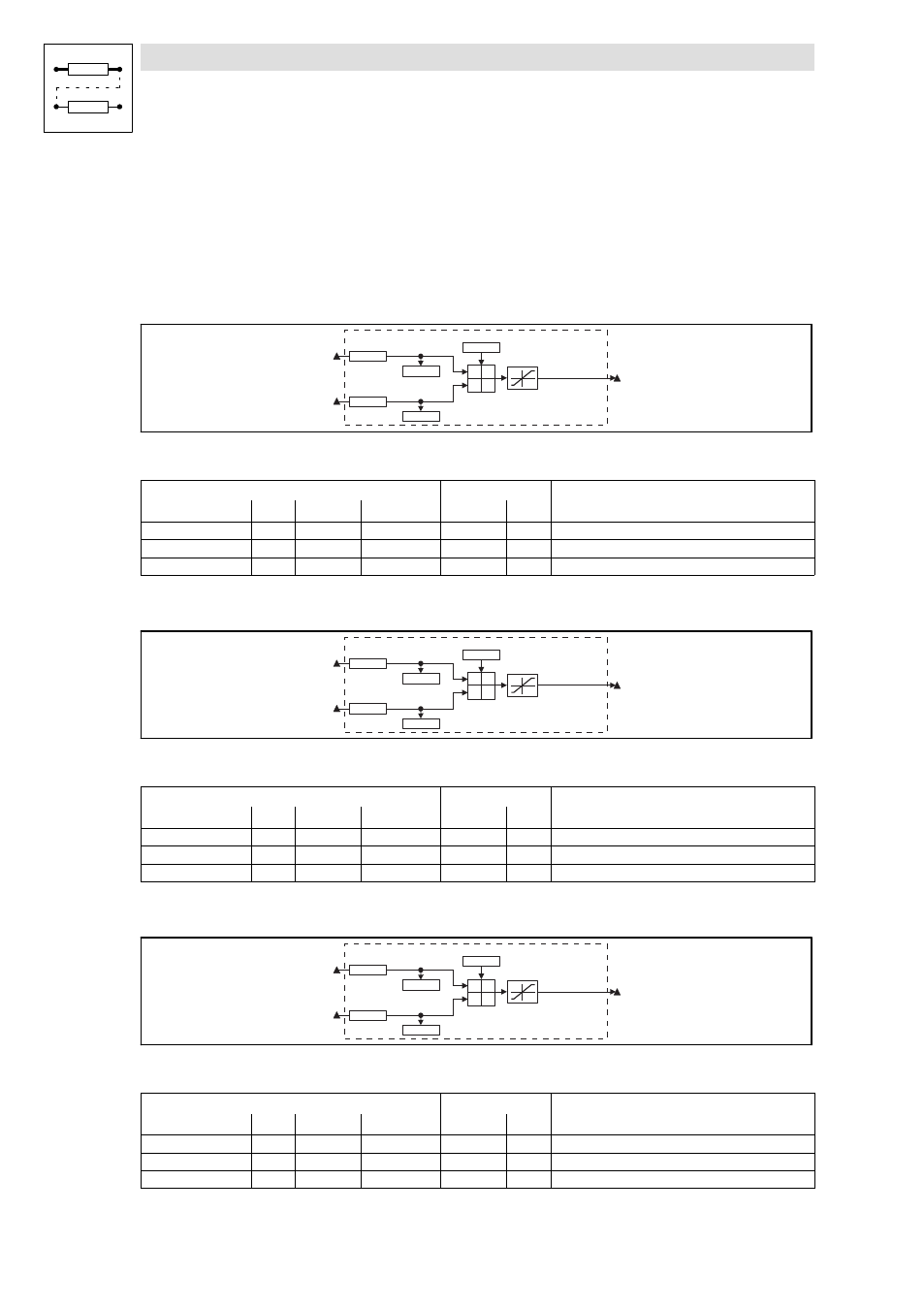

Fig. 3−41 Function block ARITPH1
Signal Source Note
Name Type DIS DIS format CFG List
ARITPH1−IN1 ph C1012/1 dec [inc] C1011/1 3 −
ARITPH1−IN2 ph C1012/2 dec [inc] C1011/2 3 −
ARITPH1−OUT ph − − − −
ARITPH2
+
-
*
/
C1020
x
y
ARITPH2
ARITPH2-OUT C1022/1
±2 -1 30
C1022/2
ARITPH2-IN1
Mode
ARITPH2-IN2
C1021/1
C1021/2
Fig. 3−42 Function block ARITPH2
Signal Source Note
Name Type DIS DIS format CFG List
ARITPH2−IN1 ph C1022/1 dec [inc] C1021/1 3 −
ARITPH2−IN2 ph C1022/2 dec [inc] C1021/2 3 −
ARITPH2−OUT ph − − − −
ARITPH3
+
-
*
/
C1025
x
y
ARITPH3
ARITPH3-OUT C1027/1
±2 -1 30
C1027/2
ARITPH3-IN1
Mode
ARITPH3-IN2
C1026/1
C1026/2
Fig. 3−43 Function block ARITPH3
Signal Source Note
Name Type DIS DIS format CFG List
ARITPH3−IN1 ph C1027/1 dec [inc] C1026/1 3 −
ARITPH3−IN2 ph C1027/2 dec [inc] C1026/2 3 −
ARITPH3−OUT ph − − − −
