Function library
Function blocks
3.2.86
Ramp function generator for angle signals (RFGPH2 and RFGPH3)
3−276
l
EDSVS9332K−EXT EN 4.0
RFGPH3
R F G P H 3 - P H O U T
R F G P H 3
C 1 0 7 7 / x
R F G P H 3 - S T O P
R F G P H 3 - S E T
R F G P H 3 - R F G - I = O
C 1 0 7 2 / 3
C 1 0 7 0 / 6
C 1 0 7 1 / 6
C 1 0 7 3 / 3
R F G P H 3 - A C T
C 1 0 7 2 / 4
C 1 0 7 3 / 4
R F G P H 3 - R E S E T
C 1 0 7 0 / 5
C 1 0 7 1 / 5
R F G P H 3 - N O U T
R F G P H 3 - R F G - 0
C 1 0 7 0 / 7
C 1 0 7 1 / 7
C 1 0 7 8 / x
C 1 0 7 9 / x
C 1 0 7 6
C T R L
R F G P H 3 - R E L S E L
C 1 0 7 0 / 8
C 1 0 7 1 / 8

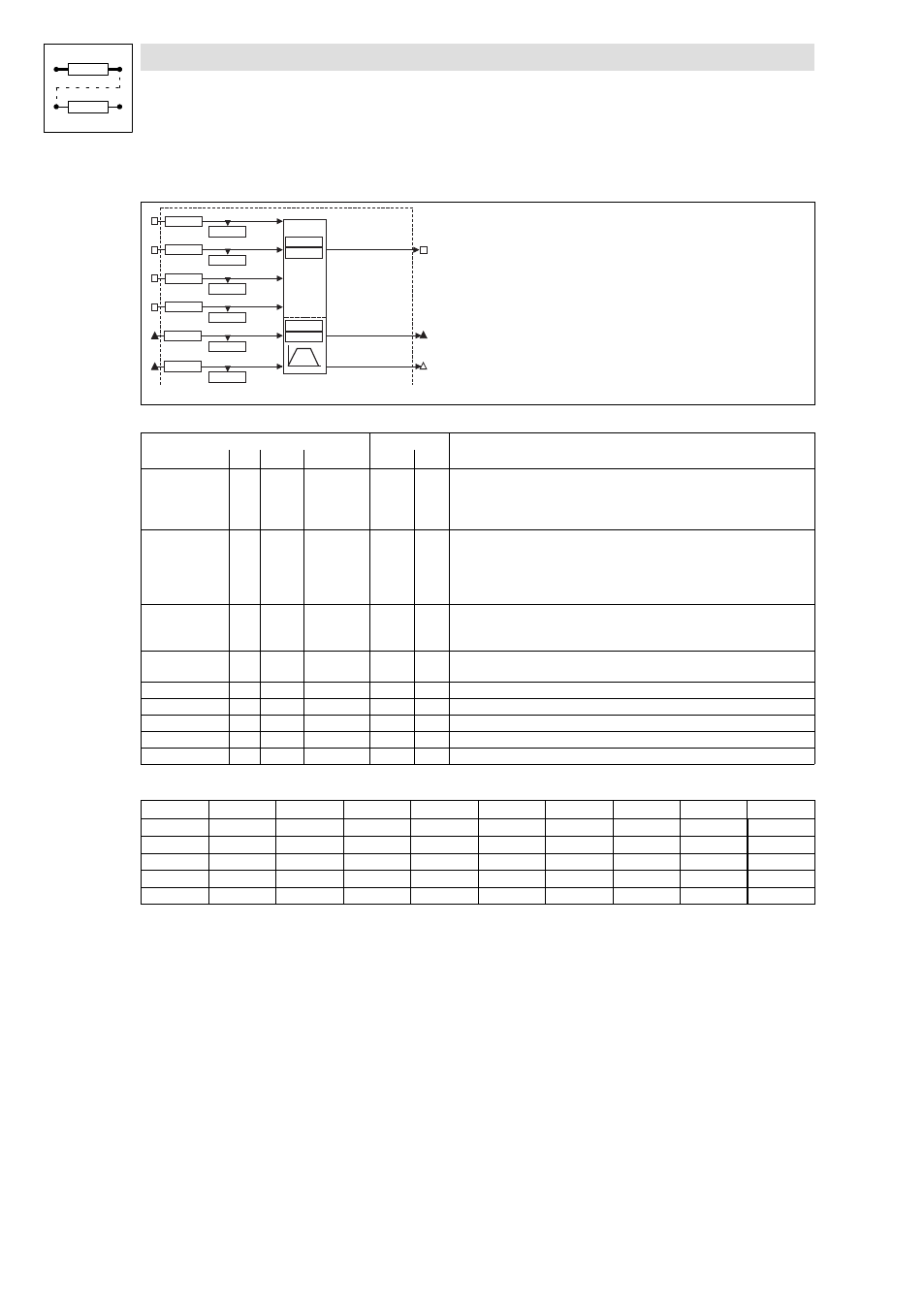

Fig. 3−224
Ramp function generator for angle signals (RFGPH3)
Signal
Source
Note
Name
Type
DIS
DIS format
CFG
List
RFGPH3−RESET
d
1071/5 bin
1400/4 2
HIGH: Sets RFGPH3−OUT = 0 (jump)
LOW: RFGPH3−PHOUT is set according to the input values RFGPH3−SET and
RFGPH3−ACT
The input has priority over all other inputs.
RFGPH3−STOP
d
1071/6 bin
1070/5 2
HIGH: Output RFGPH3−NOUT is decelerated to 0 rpm along the ramp
C1079/1, output RFGPH3−PHOUT remains the same.
LOW: RFGPH3−PHOUT is set according to the input values RFGPH3−SET and
RFGPH3−ACT.
The input has priority over RFGPH3−RFG−0
RFGPH3−RFG−0
d
1071/7 bin
1070/6 2
HIGH: Traverses according to the ramp selected for RFGPH3−ACT = 0
LOW: RFGPH3−OUT is set according to the input values RFGPH3−SET and
RFGPH3−ACT.
RFGPH3−REL−SEL d
1071/8 bin
1070/8 2
HIGH: Relative positioning
LOW: Absolute positioning
RFGPH3−SET
ph
1073/3 dec [inc]
1072/3 3
Position setpoint (65536 inc. = 1 rev.)
RFGPH3−ACT
ph
1073/4 dec [inc]
1072/4 3
Position setpoint (65536 inc = 1 rev.)
RFGPH3−RFG−I=0 d
−
−
−
HIGH: RFGPH3−SET = RFGPH3−ACT
RFGPH3−PHOUT
ph
−
−
−
Output (65536 inc = 1 rev.)
RFGPH3−NOUT
phd
−
−
−
Output RFGPH3−PHOUT as speed
Table of attributes
Code
Index dec
Index hex
DS
DA
DT
Format
DL
LCM−R/W
Condition
C1075
23500
5BCCh
E
1
FIX32
VD
4
Ra/Wa
C1076
23499
5BCBh
E
1
FIX32
VD
4
Ra/Wa
C1077
23498
5BCAh
A
2
U32
VH
4
Ra/Wa
C1078
23497
5BC9h
A
4
FIX32
VD
4
Ra/Wa
C1079
23496
5BC8h
A
6
FIX32
VD
4
Ra/Wa
Range of functions
l
Positioning of the X axis by means of X offset
l
Positioning of the Y axis by means of Y offset
l
Set the drive back to the profile position after MANUAL JOG (mode).
l
Ensure save drive position
l
Output of status signals
