Function library
Function blocks
3.2.54 Freely assignable input variables (FEVAN)
3−175
l
EDSVS9332K−EXT EN 4.0
Function
l Conversion of the read data via:
– Numerator, denominator.
– Offset.
l Selection of a target code for the read data.
Codes for the conversion of the read data and for the selection of the target code
Selection of the target code
Function block Numerator Denominator Offset Code Subcode Examples
FEVAN1 C1093 C1094 C1095 C1091 C1092
FEVAN2 C1503 C1504 C1505 C1501 C1502
Data transmission
Correct transmission Wrong transmission
FEVANx-FAIL
FEVANx-BUSY
FEVANx-LOAD
9300kur089

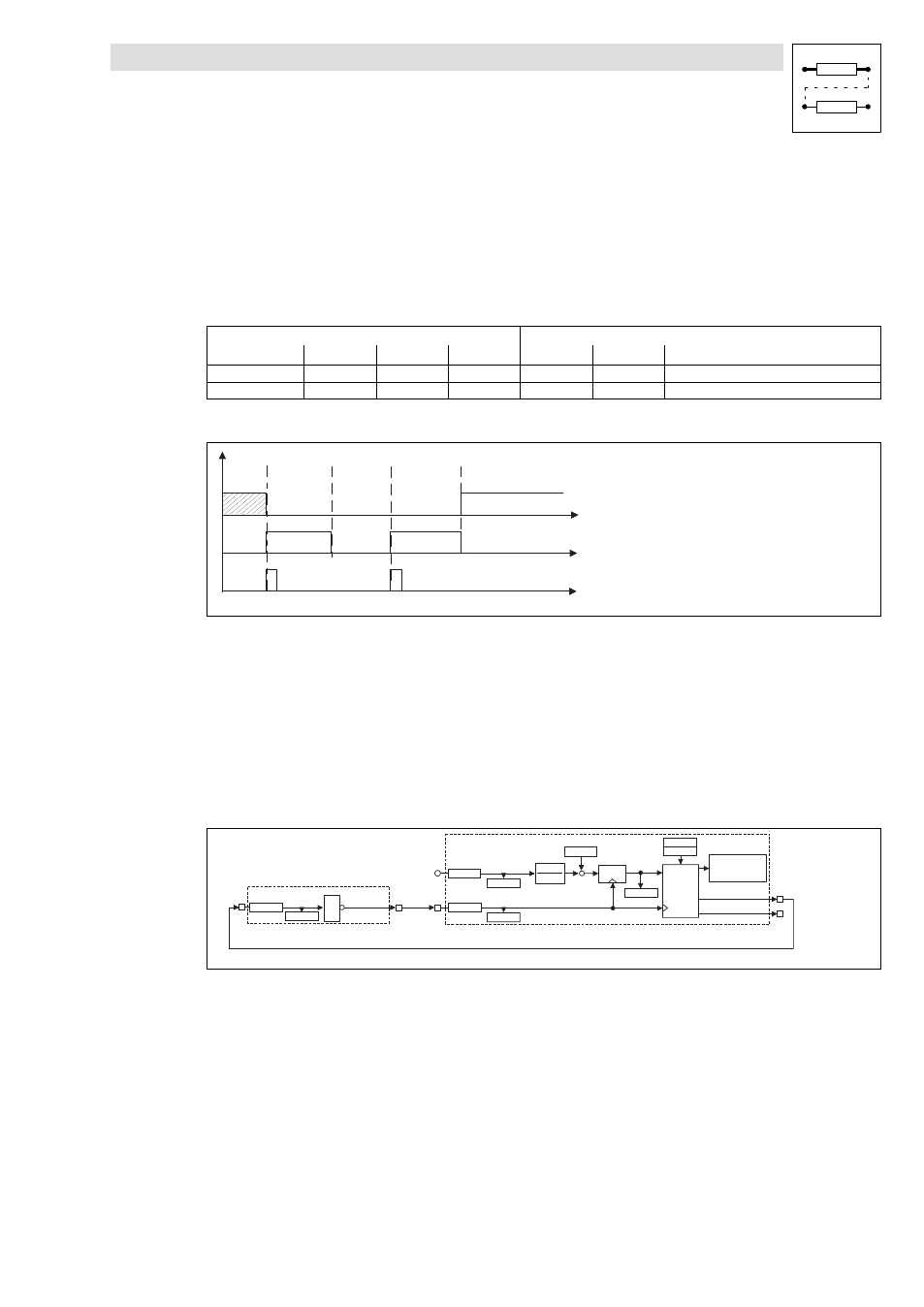

Fig. 3−135 Signal flow
Transmission errors may occur if
l the target code is not available,
l the target subcode is not available,
l the values transmitted are out of the target code limits,
l the target code is inhibited since it may only be written to if the controller is inhibited. Inhibit
the controller (see code table).
Cyclic data transmission
F E V A N 1 - I N
C 1 0 9 8
C 1 0 9 6
C 1 0 9 3
C 1 0 9 4
C T R L
+
+
C 1 0 9 5
S & H
C 1 0 9 9
F E V A N 1 - L O A D
C 1 0 9 7
C 1 0 9 0
C o d e / S u b c o d e
( C x x x x / y y y )
C 1 0 9 2
C 1 0 9 1
F E V A N 1 - B U S Y
F E V A N 1 - F A I L
F E V A N 1
N O T 1
N O T 1 - O U T N O T 1 - I N
C 0 8 4 1
C 0 8 4 0
Fig. 3−136 Example for a cyclic data transmission to a target code
