3.2.41 Digital frequency input (DFIN)
3−141
l
EDSVS9332K−EXT EN 4.0
3.2.41 Digital frequency input (DFIN)
Purpose
Converting and scaling a pulsed current at the digital frequency input X9 into a speed and angle
setpoint. The digital frequency is transferred in a high−precision mode (without offset and gain errors).
C0425
DFIN
DFIN-OUT
C0426
X9
C0427

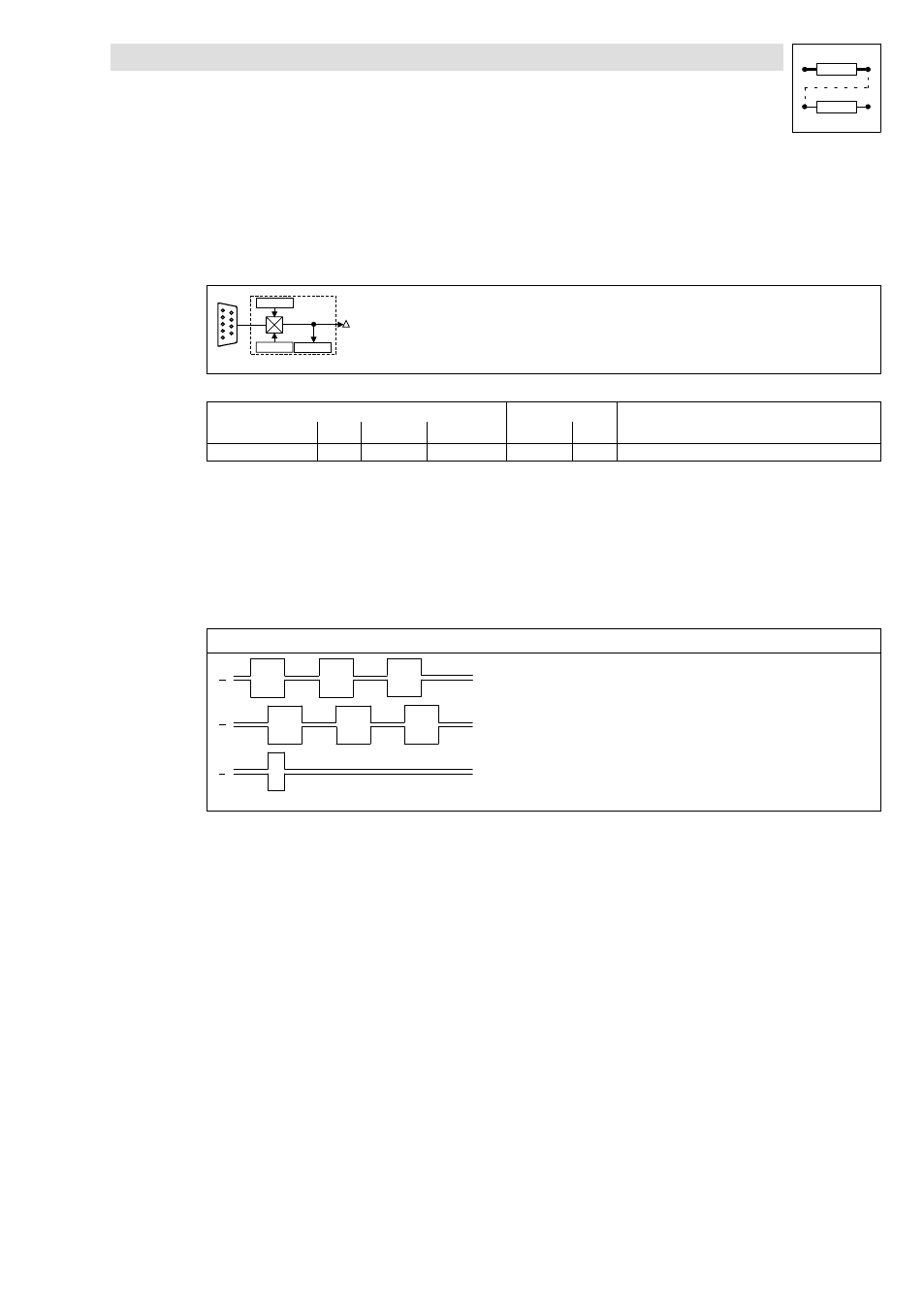

Fig. 3−104 Digital frequency input (DFIN)
Signal Source Note
Name Type DIS DIS format CFG List
DFIN−OUT phd C0426 dec [rpm] − −
Function
l The input X9 is designed for signals with TTL level.
l In the case of a digital frequency cascade or digital frequency bus, adapt the drive to the
connected encoder or upstream controller via C0425.
l The input of a zero track is optional.
l Via C0427 the following input signals can be evaluated:
C0427 = 0
A
A
B
B
Z
Z
Fig. 3−105 Phase−shifted signal sequence (CW rotation)
CW rotation Track A is leading track B by 90° (positive value at DFIN−OUT).
CCW rotation Track A is lagging track B by 90° (negative value at DFIN−OUT).
