Function library
Function blocks
3.2.103 Stretching, compression, offset in Y direction (YSET1)
3−330
l
EDSVS9332K−EXT EN 4.0
3.2.103 Stretching, compression, offset in Y direction (YSET1)
Purpose
Evaluation of the setpoint position of the cam drive (stretching/compression/offset in Y direction).
)
Note!
If you do not use the function block YSET1, you must set C1313 = 0.
C1356/1
C1352/1
C1358/1
C1358/2
C1354/2
C1357/1
C1353/1
C1359/1
C1359/2
C1355/2
YSET1-OFFS
YSET1-FACT
YSET1-OUT
YSET1-LIM
YSET1-IN
CTRL
YSET1-IN-SYNCH
YSET1-SYNCH YSET1
YSET1-RESET
C1354/1
C1355/1
C1364/1 C1351
C1350
+ +
1
0
FB_yset1

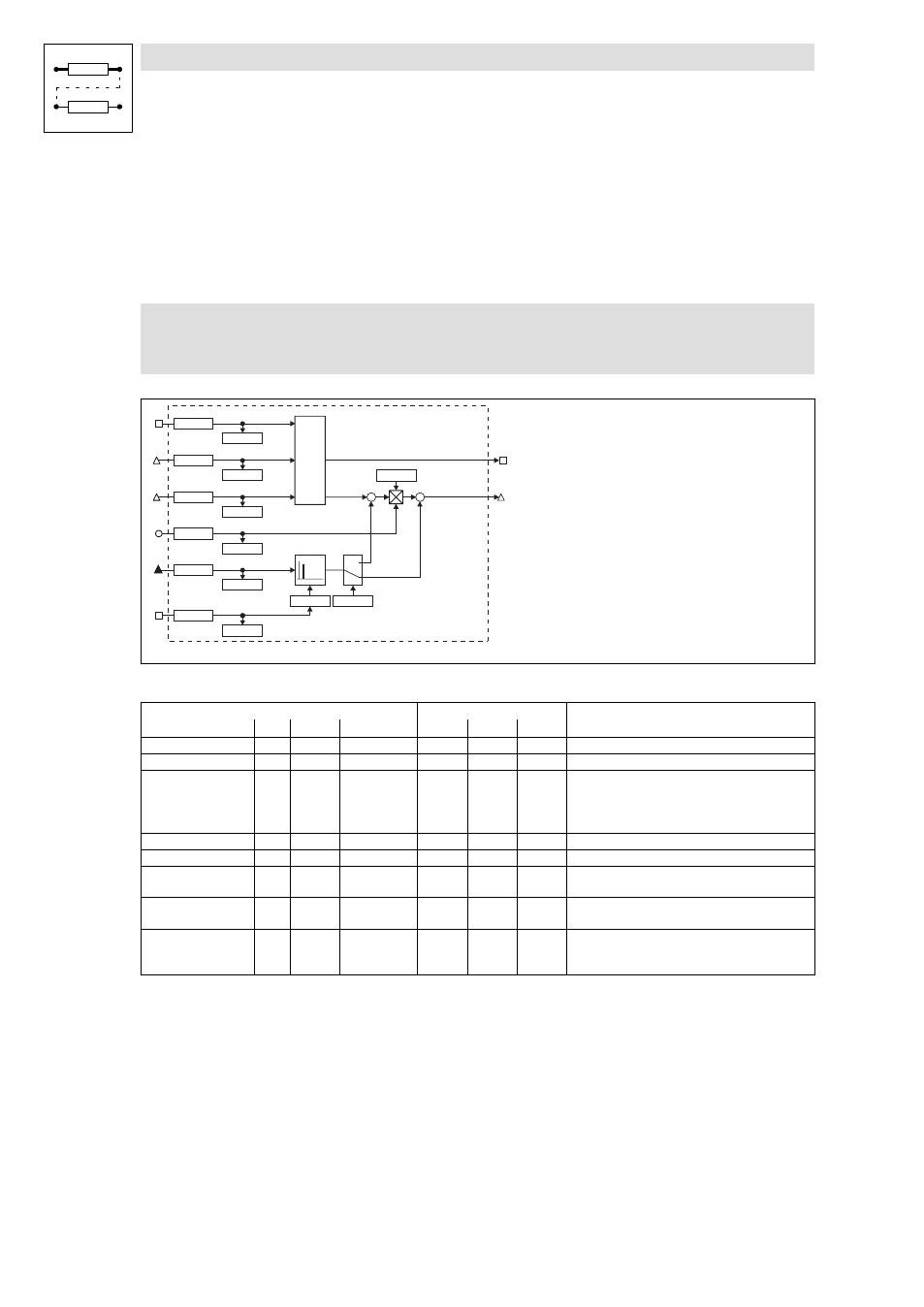

Fig. 3−264 Stretching, compression, offset in Y direction (YSET1)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
YSET1−IN phd 1359/1 dec [inc] 1358/1 4 1000 Input in [rpm]
YSET1−IN−SYNCH phd 1359/2 dec [inc] 1358/2 4 1000 Input in [rpm]
YSET1−FACT a 1353/1 dec [abs] 1352/1 1 1000 Stretching/compression factor:
±100 % = no stretching/compression
>100 % = stretching
< 100% = compression
YSET1−OFFS ph 1357/1 dec [inc] 1356/1 3 1000 Offset value
YSET1−RESET d 1355/1 dec [inc] 1354/1 2 1000 Reset of the YSET1−OFFS input
YSET1−SYNCH d 1355/2 dec [inc] 1354/2 2 1000 Clock pulse input for synchronous switching of the
stretching/compression factor
YSET1−LIM d − − − − HIGH = Signal at YSET1−OUT is within the limits
(Function is available as of software version 3.4)
YSET1−OUT phd − − − − Setpoint speed of the cam drive
Signal is limited to ±29999 rpm
No position loss when signal is limited
Function
l Stretching/compression
l Offset
l Reset of the offset
l Stretching/compression of the offset
l Direction reversal
