Function library

Function blocks

3.2.58

Gearbox compensation (GEARCOMP)

3−186

l

EDSVS9332K−EXT EN 4.0

3.2.58

Gearbox compensation (GEARCOMP)

Purpose

Compensates elasticities in the drive train (e.g. gearbox torsion).

Implementation of an adaptive linkage of e.g. the phase setpoint (32 bits) and the torque feedforward
control (14 bits).

G E A R C O M P

G E A R C O M P - O U T

G E A R C O M P - P H I - I N

C 1 2 6 9

C 1 2 6 6

G E A R C O M P - T O R Q U E

C 1 2 6 8

C 1 2 6 5

2 1 4

+

+

C 1 2 6 0

C 1 2 6 1

C 1 2 6 2

0

2 1 5 - 1

- 2

1 5 + 1

+

+

V o r z e i c h e n

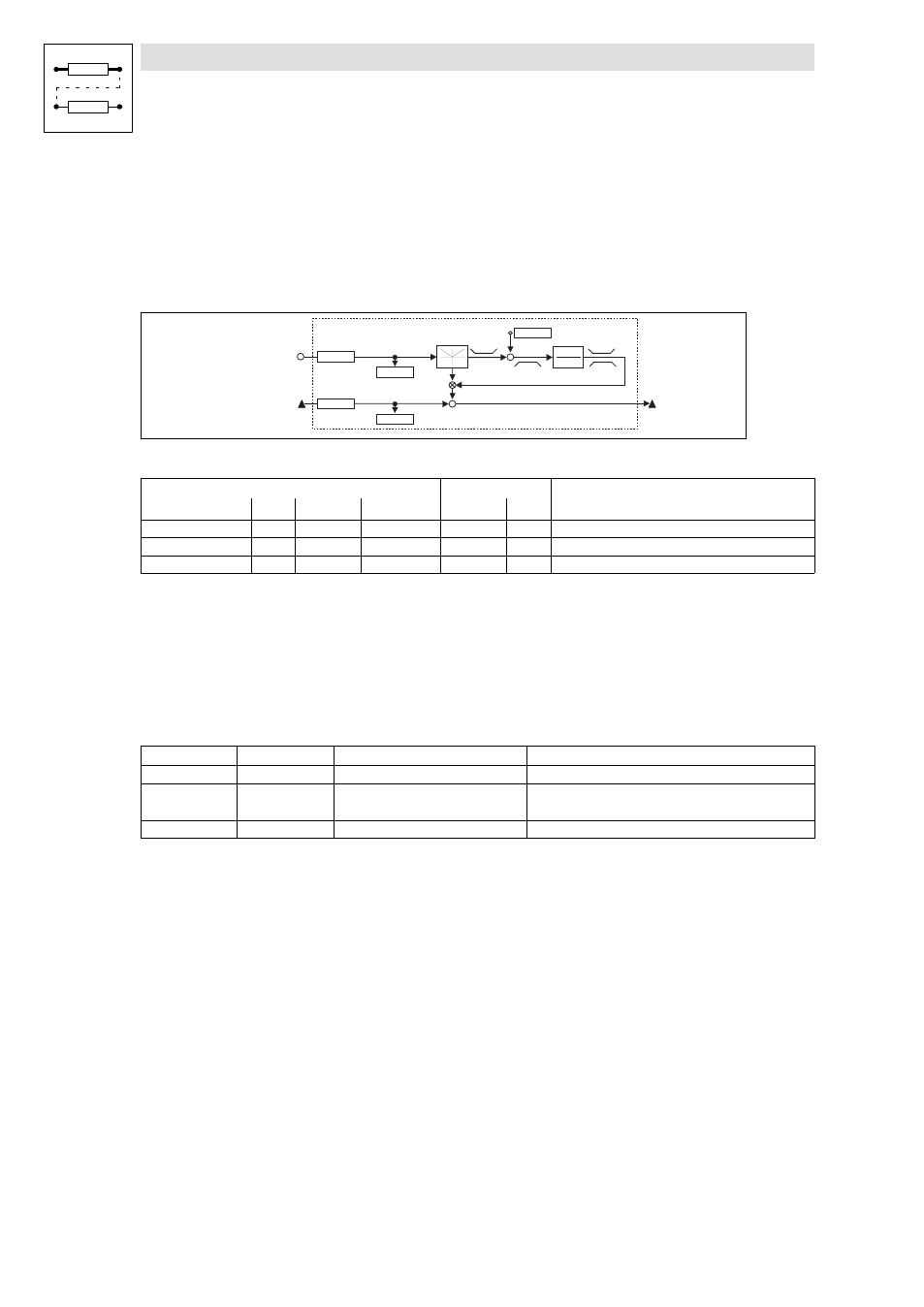

Fig. 3−147

Gearbox compensation (GEARCOMP)

Signal

Source

Comment

Name

Type

DIS

DIS format

CFG

List

GEARCOMP−TORQUE

a

C1268

dec [%]

C1265

2

Input value

GEARCOMP−PHI−IN

ph

C1269

dec [inc]

C1266

3

GEARCOMP−OUT

ph

Outputs the compensated phase setpoint.

Function

l

The signal at GEARCOMP−TORQUE is broken down into the absolute value and the sign.

– The absolute value is limited to 2

14

(+16384) first.

l

The absolute value is converted (via C1260, C1261, C1262).

l

The result is evaluated with the sign and is added to the signal at GEARCOMP−PHI−IN.

Codes for the conversion of the absolute value:

Code

Function

Selection

Comment

C1260

Offset

−16383

{1}

16383

C1261

Numerator

−32767

{1}

32767

Dynamic disconnection at C1261 = 0

(GEARCOMP−PHI−IN = GEARCOMP−OUT)

C1262

Denominator

1

{1}

32767
