Function library
Function blocks

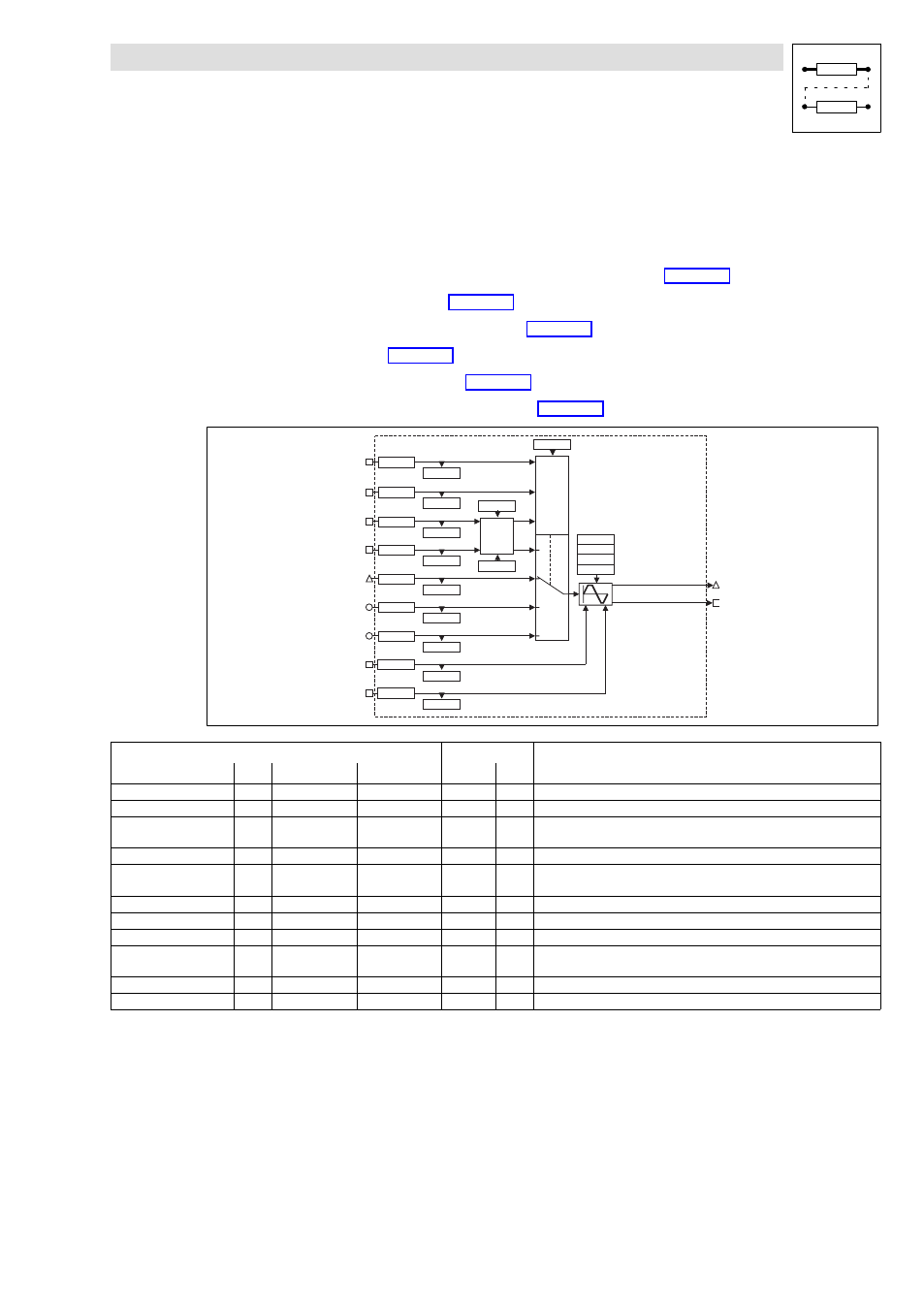

3.2.100 Virtual master (VMAS)
3−317
l
EDSVS9332K−EXT EN 4.0
3.2.100 Virtual master (VMAS)
Generation of a virtual digital frequency
Contents
l Generation of a virtual master value (digital frequency) (chapter 3.2.100.1)
l Digital frequency input (chapter 3.2.100.2)
l Switch to alternative master value (chapter 3.2.100.3)
l Inching mode (chapter 3.2.100.4)
l Ramp function generator (chapter 3.2.100.5)
l STOP function with VMAS1−RFG=0 (chapter 3.2.100.6)
V M A S 1
V M A S 1 - O U T
C 1 4 6 7 / 1
V M A S 1 - A I N
C 1 4 6 6 / 1
C 1 4 7 3 / 1
V M A S 1 - D F I N
C 1 4 7 2 / 1
C 1 4 6 9 / 3
V M A S 1 - E N - R F G
C 1 4 6 8 / 3
C 1 4 6 7 / 2
V M A S 1 - R E D - V A L
C 1 4 6 6 / 2
C 1 4 6 9 / 1
V M A S 1 - E N - A I N
C 1 4 6 8 / 1
C 1 4 6 9 / 2
V M A S 1 - E N - R E D
C 1 4 6 8 / 2
C 1 4 6 9 / 4
V M A S 1 - C W
C 1 4 6 8 / 4
C 1 4 6 9 / 5
V M A S 1 - C C W
C 1 4 6 8 / 5
C 1 4 6 2 / 2
C 1 4 6 2 / 1
C T R L
C 1 4 6 1 / 1
C 1 4 6 1 / 2
C 1 4 6 0
C T R L
V M A S 1 - R F G - I N = O U T
C 1 4 6 3 / 2
C 1 4 6 3 / 1
C 1 4 6 9 / 6
V M A S 1 - R F G = 0
C 1 4 6 8 / 6
Signal Source Note
Name Type DIS DIS format CFG List
VMAS1−AIN a 1467/1 dec [%] 1466/1 Analog setpoint
VMAS1−RED−VAL a 1467/2 dec [%] 1466/2 Alternative analog setpoint, target for speed reduction
VMAS1−EN−AIN d 1469/1 bin 1468/1 HIGH: Activates the analog input VMAS1−AIN or VMAS1−DFIN (depending
on the selection under C1460)
VMAS1−EN−RED d 1469/2 bin 1468/2 HIGH: Activates the analog input VMAS1−RED−VAL
VMAS1−EN−RFG d 1469/3 bin 1468/3 HIGH: Activates the ramp function generator
LOW: Input values are processed directly
VMAS1−CW d 1469/4 bin 1468/4 Input CW rotation (set speed under C1461/1)
VMAS1−CCW d 1469/5 bin 1468/5 Input CCW rotation (set speed under C1461/2)
VMAS1−DFIN phd 1473/1 dec [rpm] 1472/1 Master speed input (digital frequency)
VMAS1−RFG−IN=0 d 1469/6 bin 1468/6 HIGH: Decelerates VMAS1−OUT to 0 rpm along the adjustable ramp
C1463/3. The function has priority over all other functions.
VMAS1−RFG−IN=OUT d 13851 bin − HIGH: RFG has accelerated (input = output)
VMAS1−DFOUT phd 13851 − − Output of the digital frequency setpoint
