Function library
Function blocks
3.2.3 Function block CDATA
3−36
l
EDSVS9332K−EXT EN 4.0
3.2.3.14 Output of important status signals
Display of the current profile section (only with relative data model)
The current profile section is indicated by the assigned digital outputs CDATA−SEC1 to CDATA−SEC5.
Section length / cycle length (only with relative data model)
The lengths of the individual sections are output at CDATA−LEN1 to CDATA−LEN5 in X direction.
Added together they result in CDATA−ACTLEN.
The actual length of a master value cycle is output at CDATA−ACTLEN (image of code C1315/X).
Updating CDATA−LENx / CDATA−Y−END
CDATA−BUSY−LENx = HIGH indicates that the outputs CDATA−LENx and CDATA−Y−END are
updated one after the other. They are not valid for the update period.
Profile processed currently
CDATA−ACTCAM indicates which profile is being processed.

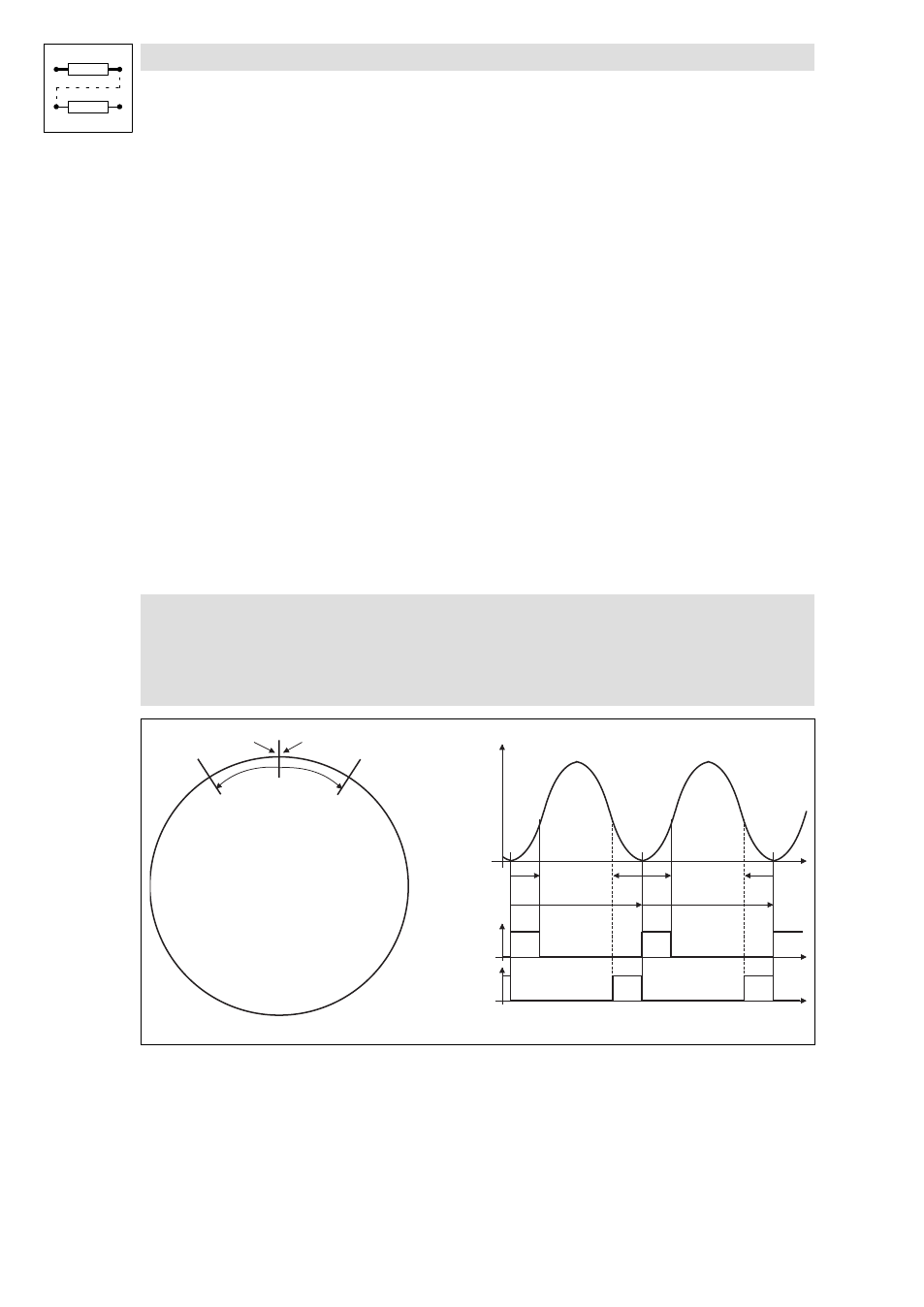

Indication of profile zero crossing
CDATA−X0 signals a zero crossing of the master value. The window width for comparison is defined
in C1309, the window is arranged symmetrically around the actual zero point of the master value.
(
Stop!
Observe when setting the X axis position to X0 = 0 within one cycle.
l if X position < 1/2 cycle, CDATA−X0 is not set.
l if X position >= 1/2 cycle, CDATA−X0 is set as for zero crossing.
0 C 1 3 1 5 / x
C 1 3 0 9 C 1 3 0 9
X - K o o r d i n a t e n
Y
x
C 1 3 1 5 / x C 1 3 1 5 / x
C 1 3 0 9 C 1 3 0 9 C 1 3 0 9
X 0
R e c h t s l a u f
X 0
L i n k s l a u f
x
x
9300kur021
