Function library
Function blocks
3.2.24 Clutch (CLUTCH 3)
3−96
l
EDSVS9332K−EXT EN 4.0
Calculation of the ramps
N S E T
t
n N
T i
t i
v _ P H I - S E T
v _ P H I - A C T
C L O S E
t
fb_clutch_

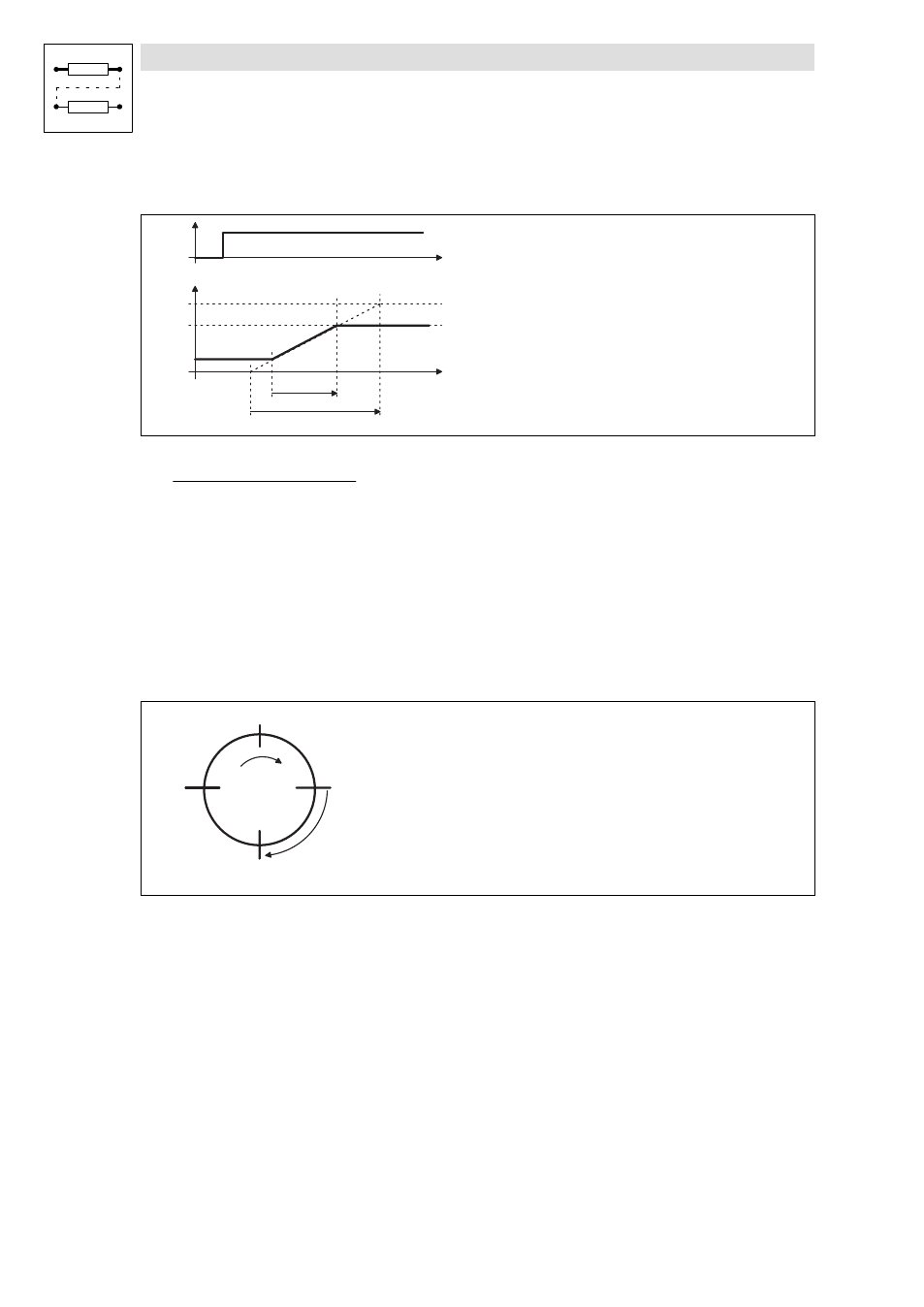

Fig. 3−64 Path−time diagram: Time−controlled engaging
ti +
Ti
@ nN
(v_PHI−SET
* v_PHI−ACT)
ti Actual duration of the process of engaging the clutch
Ti Acceleration time of the ramp in C1706/3 for the clutch−engaging, relating to
a speed variation from 0 to the machine speed nN
v_PHI−SET Speed of the external master angle
v_PHI−ACT Minimum speed at CLUTCH3−LOW−VEL
(in the disengaged state, v_PHI−ACT is = CLUTCH3−LOW−VEL)
3.2.24.6 Selection of the disengaging position
Description
The disengaging position is specified if an operation has to be completed before the disengaging
process may be initiated.
Function procedure
T A R G E T - P O S = B r a k e p o s i t i o n
v e l o c i t y
0
P H I - S E T
B r a k i n g d i s t a n c e
P H O U T
fb_clutch3_09
Fig. 3−65 Angle diagram: Disengaged status at zero speed
The internal master angle (PHOUT) is running synchronously to the external master angle (PHI−SET)
until the position at CLUTCH3−TARGET−POS is crossed. Then drive is decelerated to the speed at
CLUTCH3−LOW−VEL.
Adjustment
l Set C1707 = 1.
l Define the disengaging position at CLUTCH3−TARGET−POS.
l Start the disengaging process with CLUTCH3−CLOSE = LOW.
