Function library
Function blocks
3.2.102 Welding bar control (WELD1)
3−323
l
EDSVS9332K−EXT EN 4.0
3.2.102 Welding bar control (WELD1)
Purpose
This function block is used for the implementation of a welding bar control.
)
Note!
If you use the function block WELD1:
l Profiles must be created in a relative data model. The data model can be set in
GDC (parameter menu
® basic data dialog).
l Code C1308 must be set to "1".
– If you select a basic configuration with the FB WELD1, C1308 is automatically
set to 1.
– If you select a basic configuration without the FB WELD1, C1308 is
automatically set to 0.
C1444/1
C1445/1
C1446
WELD1-XIN
WELD1-T-ERR
WELD1-DIRERR
WELD1-ON
WELD1-XOUT
WELD1
WELD1-LEN-C
CTRL WELD1-LEN-O
WELD1-LEN
WELD1-TIME
WELD1-BREAK
C1444/2
C1444/3
C1444/4
C1444/5
C1448
C1445/2
C1445/3
C1445/4
C1445/5
C1449
FB_weld1

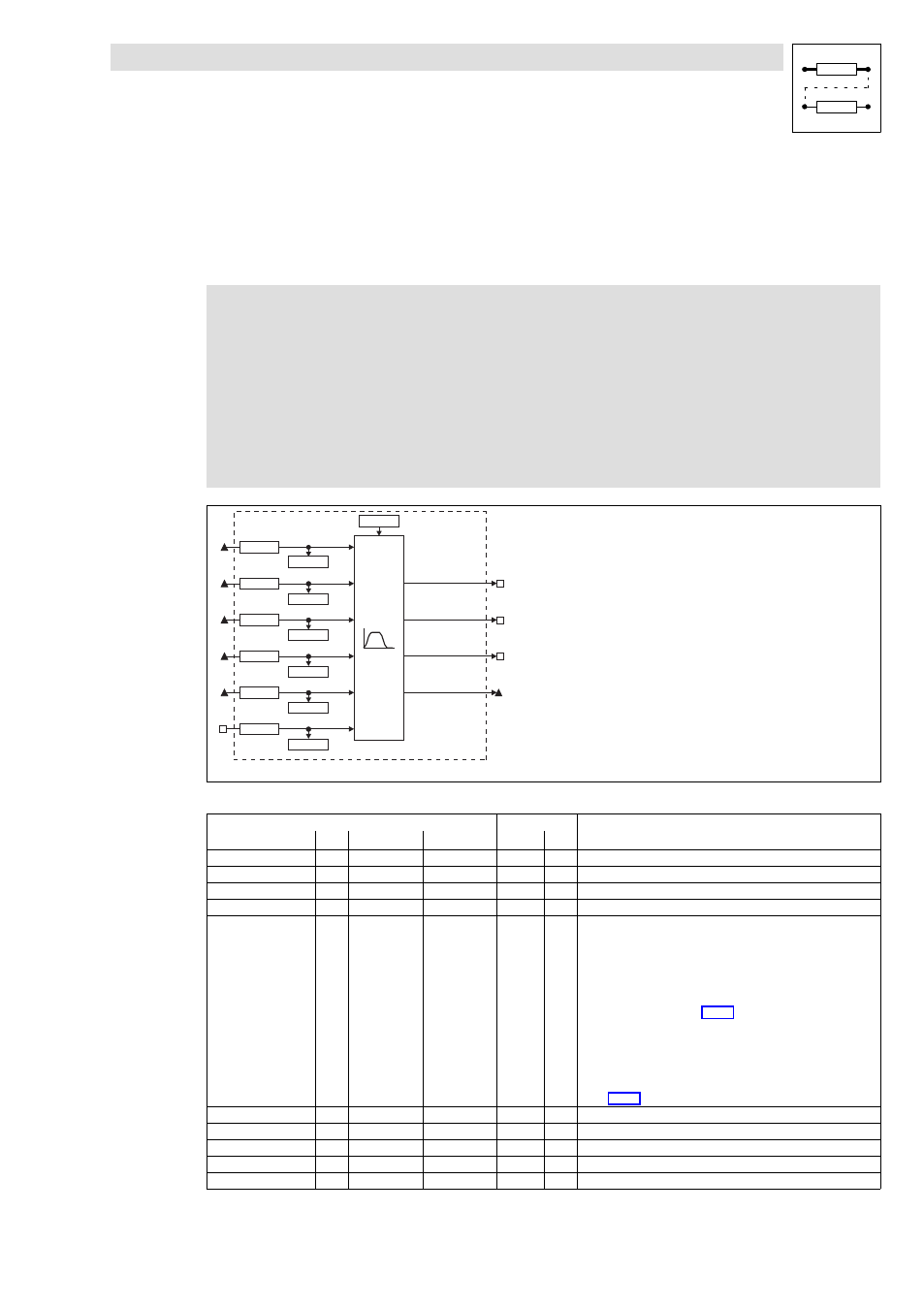

Fig. 3−260 Welding bar control (WELD1)
Signal Source Note
Name Type DIS DIS format CFG List
WELD1−XIN ph 1445/1 dec [inc] 1444/1 3 Input X position
WELD1−LEN−C ph 1445/2 dec [inc] 1444/3 3 Length of the closing phase
WELD1−LEN−O ph 1445/3 dec [inc] 1444/2 3 Length of the opening phase
WELD1−LEN ph 1445/4 dec [inc] 1444/4 3 Length of the cam profile
WELD1−TIME ph 1445/5 dec [inc] 1444/5 3 The following modes can be selected under C1446:
·
Time"
– Welding time in [ms] (1 inc = 1 ms)
·
Distance"
– Option to shift the profile sections 2 and 3 by representing
the parameter WELD1−TIME" (C1445/5) as a distance
(see explanation
^ 3−328).
·
Distance with storage"
– Option to shift the profile sections 2 and 3 by representing
the parameter WELD1−TIME" (C1445/5) as distance.
WELD1−TIME" is kept constant for the further cycle at
the time of transition into phase 2 (see explanation ^
3−329).
WELD1−BREAK 1449 bin C1448 2 HIGH = Abort the welding process
WELD1−T−ERR d − − − − Welding time error
WELD1−DIR−ERR d − − − − Fault in the direction of rotation
WELD1−ON d − − − − Welding time active
WELD1−XOUT ph − − − Output for profile control
