Function library
Function blocks

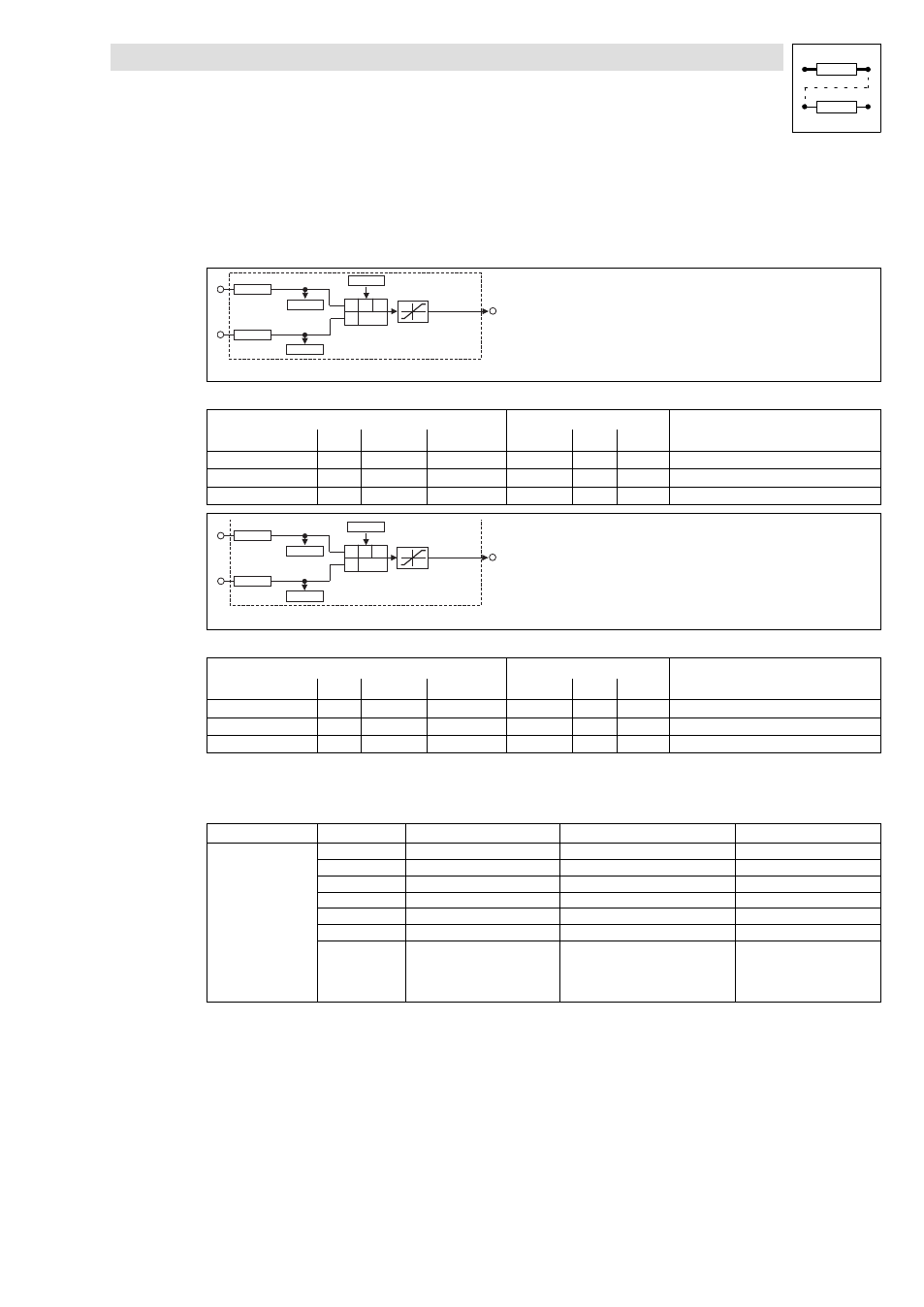

3.2.13 Arithmetic block (ARIT)
3−55
l
EDSVS9332K−EXT EN 4.0
3.2.13 Arithmetic block (ARIT)
Purpose
Arithmetic linking of two "analog" signals.
+ - *
/ x / ( 1 - y )
C 0 3 3 8
x
y
A R I T 1
A R I T 1 - O U T C 0 3 4 0 / 1
± 1 9 9 , 9 9 %
C 0 3 4 0 / 2
A R I T 1 - I N 1
A R I T 1 - I N 2
C 0 3 3 9 / 1
C 0 3 3 9 / 2
Fig. 3−39 Arithmetic block (ARIT1)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
ARIT1−IN1 a C0340/1 dec [%] C0339/1 1 1000 −
ARIT1−IN2 a C0340/2 dec [%] C0339/2 1 1000 −
ARIT1−OUT a − − − − − Limited to ±199.99 %
+ - *
/ x / ( 1 - y )
C 0 6 0 0
x
y
A R I T 2
A R I T 2 - O U T C 0 6 0 2 / 1
± 1 9 9 , 9 9 %
C 0 6 0 2 / 2
A R I T 2 - I N 1
A R I T 2 - I N 2
C 0 6 0 1 / 1
C 0 6 0 1 / 2
Fig. 3−40 Arithmetic block (ARIT2)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
ARIT2−IN1 a C0602/1 dec [%] C0601/1 1 1000 −
ARIT2−IN2 a C0602/2 dec [%] C0601/2 1 1000 −
ARIT2−OUT a − − − − − Limited to ±199.99 %
Function
For both arithmetic blocks the following functions can be preselected:
Code Subcode Arithmetic function Example Note
ARIT1: C0338
ARIT2: C0600
0 OUT = IN1 IN2 is not processed
1 OUT = IN1 + IN2 100% = 50% + 50%
2 OUT = IN1 − IN2 50% = 100% − 50%
3 OUT = IN1 × IN2 100% = 100% ×100%
4 OUT = IN1 ÷ ½ IN2 ½ 1% = 100% ÷100%
5 OUT = IN1 ÷ (100% − IN2) 200% = 100% ÷ (100% − 50%)
15 OUT = IN1 % IN2
% here means "modulo"
·
20% = 200% [%] 60%
·
40% = 160% [%] 60%
·
0 = 180% [%] 60%
Remainder calculation:
OUT = IN1 − (n × IN2)
n = integer component of the
quotient IN1 ÷ IN2
