3.2.95 Shift register (STORE3)
3−302
l
EDSVS9332K−EXT EN 4.0
Application example
v
1 3
2
4
0
fb_store3_1

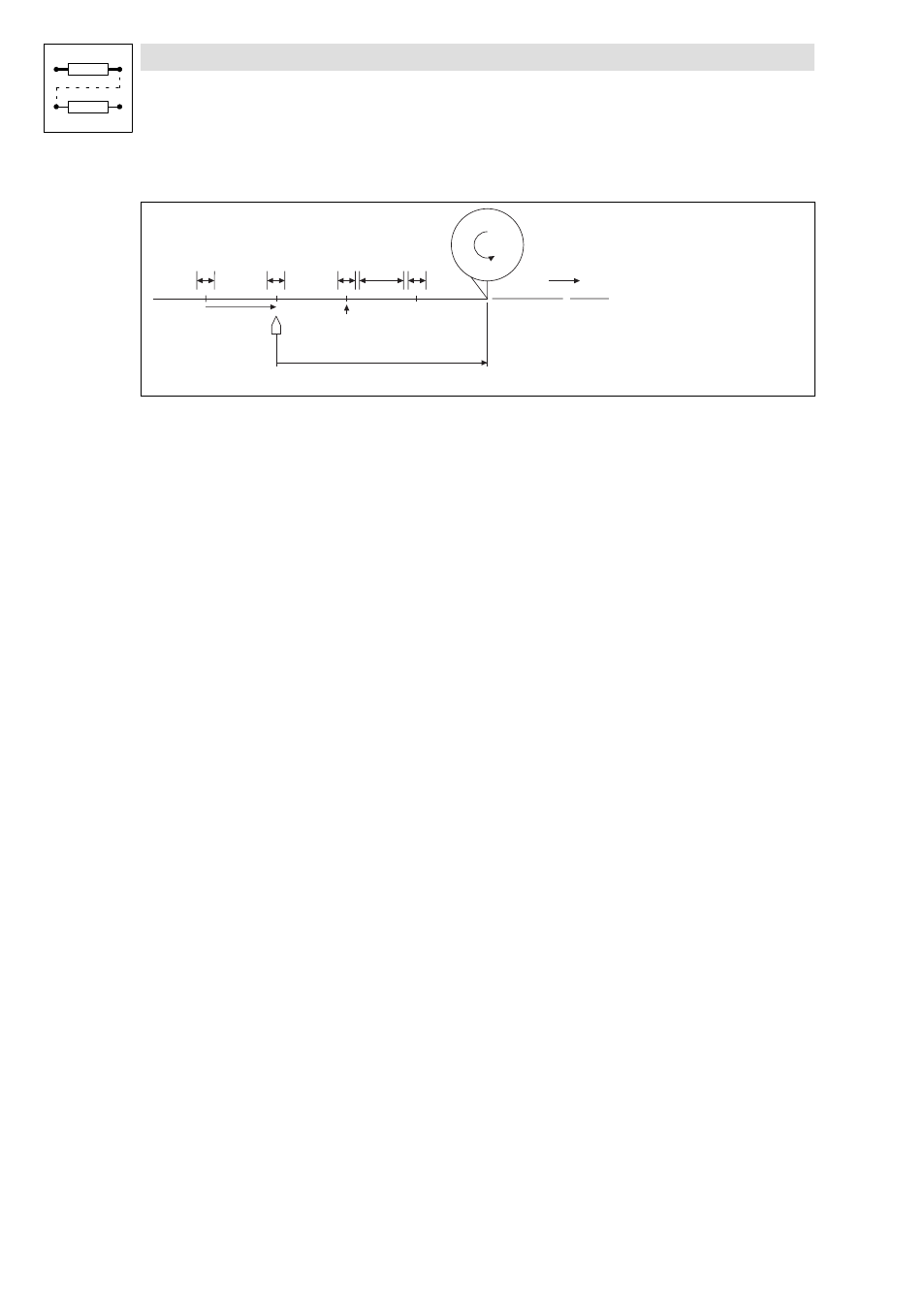

Fig. 3−249 Automatic detection of the formats via cutting marks
0 Format length
1
Window for cutting mark
2 Cutting mark
3 Print image
4
Mark recognition (sensor)
The distance between two cutting marks is the format length. STORE3 supports the automatic
measurement of the format length. For this purpose, at least two cutting marks have to be detected
via a sensor.
Between the sensor and cutter (cutting point) there can be 16 different format lengths at a maximum.
The product is cut if a cutting mark reaches the cutter.
