Function library
Function blocks
3.2.99 Edge evaluation (TRANS)
3−314
l
EDSVS9332K−EXT EN 4.0

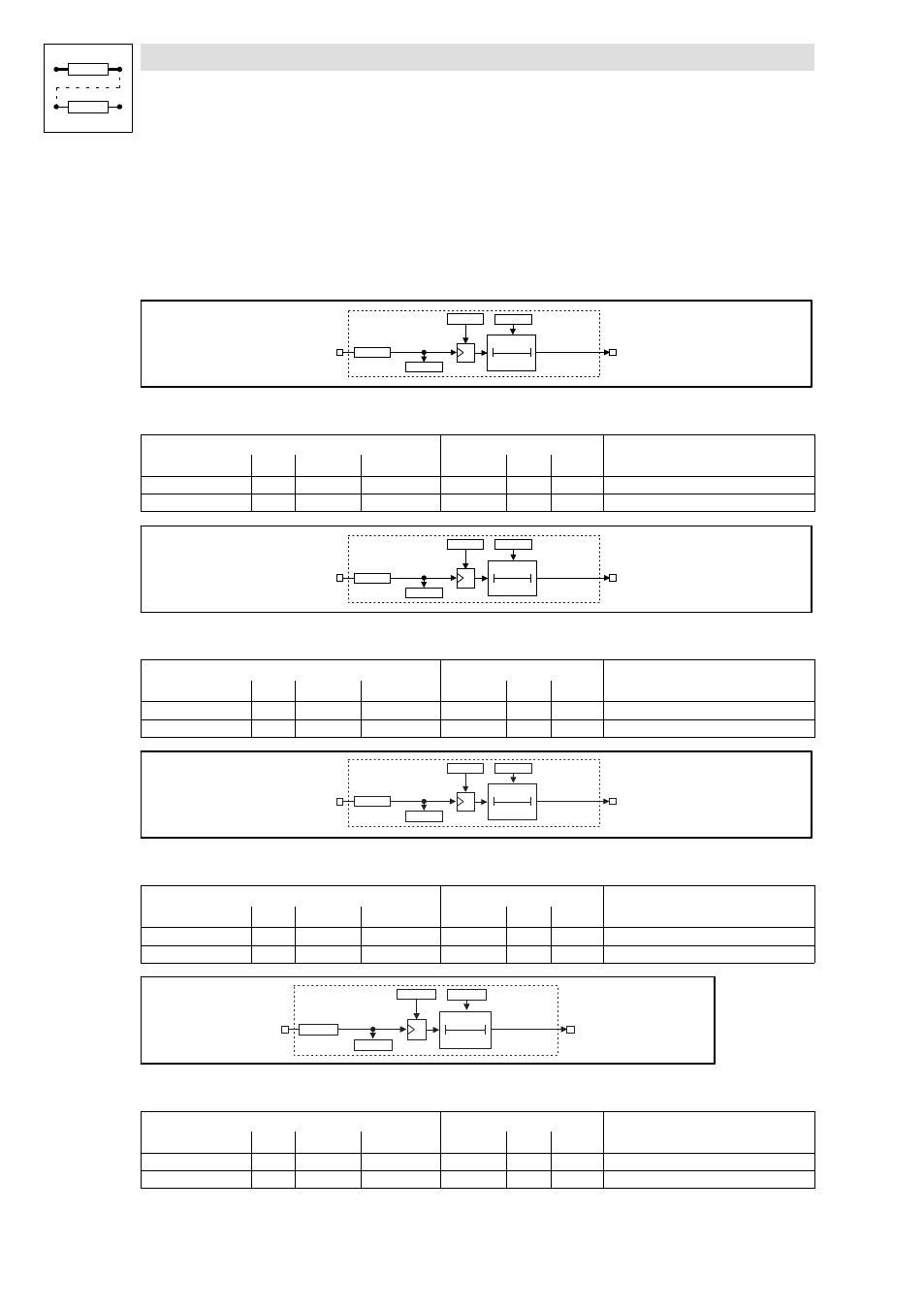

3.2.99 Edge evaluation (TRANS)
Purpose
This function is used to evaluate digital signal edges and convert them into pulses of a defined
duration.
t 0
TRANS1-IN
C0714
TRANS1-OUT
TRANS1 C0711 C0710
C0713
Fig. 3−253 Edge evaluation (TRANS1)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
TRANS1−IN d C0714 bin C0713 2 1000 −
TRANS1−OUT d − − − − − −
t 0
TRANS2-IN
C0719
TRANS2-OUT
TRANS2 C0716 C0715
C0718
Fig. 3−254 Edge evaluation (TRANS2)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
TRANS2−IN d C0719 bin C0718 2 1000 −
TRANS2−OUT d − − − − − −
t 0
T R A N S 3 - I N
C 1 1 4 4
T R A N S 3 - O U T
T R A N S 3 C 1 1 4 1 C 1 1 4 0
C 1 1 4 3
Fig. 3−255 Edge evaluation (TRANS3)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
TRANS3−IN d C1144 bin C1143 2 1000 −
TRANS3−OUT d − − − − − −
t 0
T R A N S 4 - I N
C 1 1 4 9
T R A N S 4 - O U T
T R A N S 4 C 1 1 4 6 C 1 1 4 5
C 1 1 4 8
FB_trans4
Fig. 3−256 Signal evaluation (TRANS4)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
TRANS4−IN d C1149 bin C1148 2 1000 −
TRANS4−OUT d − − − − − −
