Function library
Function blocks
3.2.24 Clutch (CLUTCH 3)
3−91
l
EDSVS9332K−EXT EN 4.0
3.2.24 Clutch (CLUTCH 3)
Purpose
The CUTCH3 function block forms the interface between the external and internal master angle in
synchronous systems. CLUTCH3 has the following features:
l Engaging and disengaging at positive or negative direction of rotation of the master angle.
l Disengaging with standstill at an adjustable target point or with synchronous running to a
specified point.
l Engaging and disengaging in a time−controlled manner.
l Adjustable minimum speed in the disengaged state (e. g. for printing machines).
CLUTCH3-INIT
CLUTCH3
CLUTCH3-CLOSE
CLUTCH3-DIST
CLUTCH3-OPEN
C1702/2
C1700/3
C1701/3
C1703/2
CLUTCH3-PHI-SET
C1702/3
C1703/3
CLUTCH3-OPEN-INSTANT
C1700/1
C1701/1
CLUTCH3-ACT-SET
C1706/2
C1706/1
CTRL
CLUTCH3-TARGET-POS
C1702/1
C1703/1
CLUTCH3-ACCDEC
CLUTCH3-DIR-ERR
CLUTCH3-ERR
CLUTCH3-VEL-TO-LOW
CLUTCH3-PHI-ACT
C1702/4
C1703/4
CLUTCH3-LEN
C1702/5
C1703/5
CLUTCH3-LOW-VEL
C1704/1
C1705/1
C1707
C1706/3
CLUTCH3-NSET
CLUTCH3-PHOUT
fb_clutch3

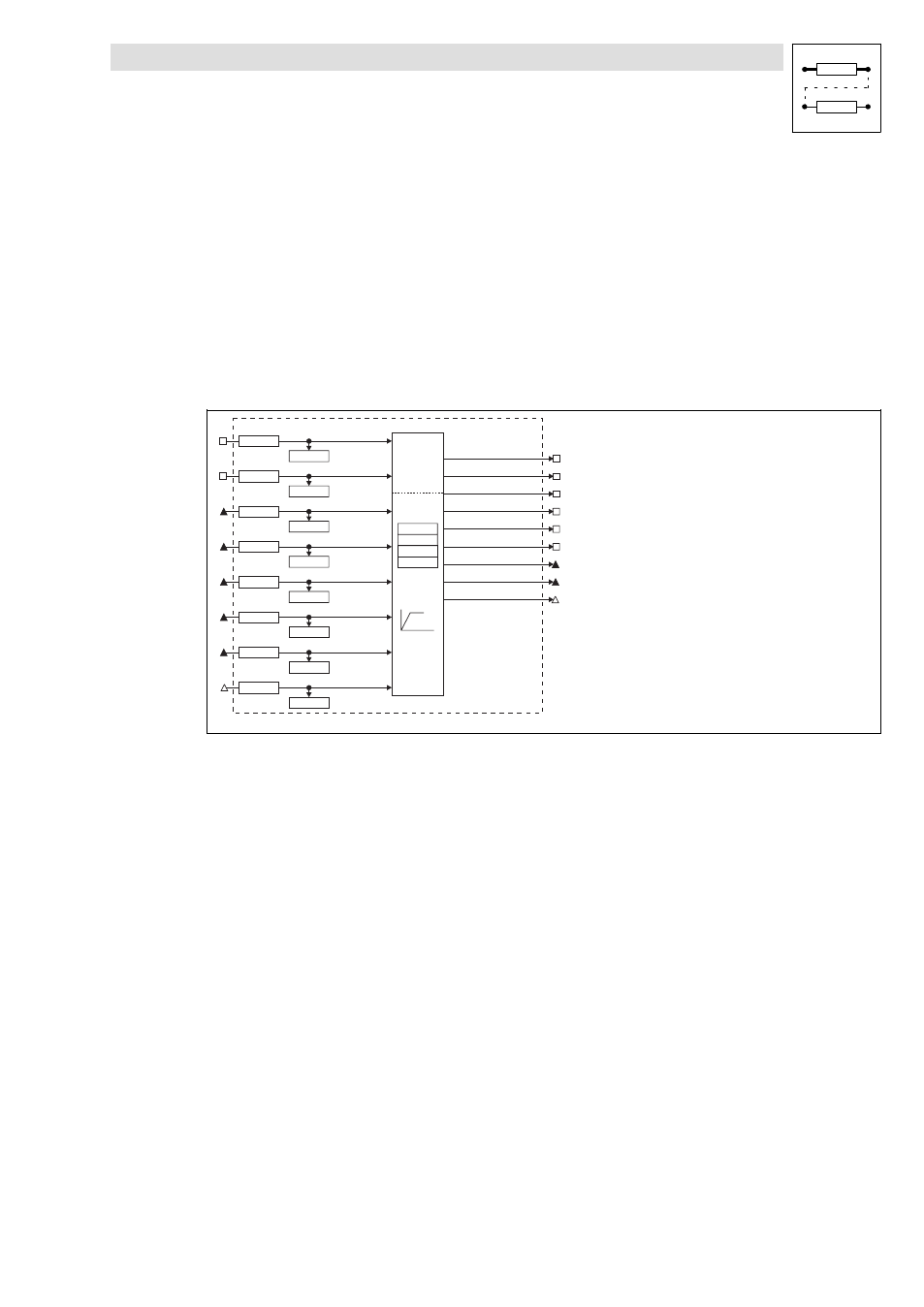

Fig. 3−61 Clutch (CLUTCH3)
