Function library
Function blocks
3.2.85 Ramp function generator for angle signals (RFGPH1)
3−271
l
EDSVS9332K−EXT EN 4.0
Description of functions by means of an example
The function block "ramp function generator for phase signals" serves to adjust the path compared
to the master drive. Before, it must be defined if the drive is to take the desired position
l at a predefined speed (RFGPH1−T/DIST = LOW) or
l after a certain distance (RFGPH1−T/DIST = HIGH) depending on the master drive speed.
The drive is to be moved by 5 m units starting with the 0 position of the profile. It is enabled via the
terminal X5/E1.
)
Note!
m−units (master units) are units which can be directly measured in the system at the
object to be displaced. These can be mm, m, phases etc.. With regard to the motor,
these actual values become slave units (s−units). The s−units are converted to
encoder increments in the controller.
RFGPH1
RFGPH1-IN
RFGPH1-RESET
RFGPH1-RFG-I=0
C1400/1
C1402/1
C1403/1
C1401/1
RFGPH1-T/DIST
C1400/2
C1401/3
RFGPH1-DFIN
C1404/1
C1405/1 CTRL
RFGPH1-DIST
C1402/2
C1403/2
RFGPH1-OUT
RFGPH1-IN-OLD
RFGPH1-RFG-0
C1400/3
C1401/2
CDATA-XOFFS C1476/1
FCODE
FIXED0
DIGIN1
9300kur025

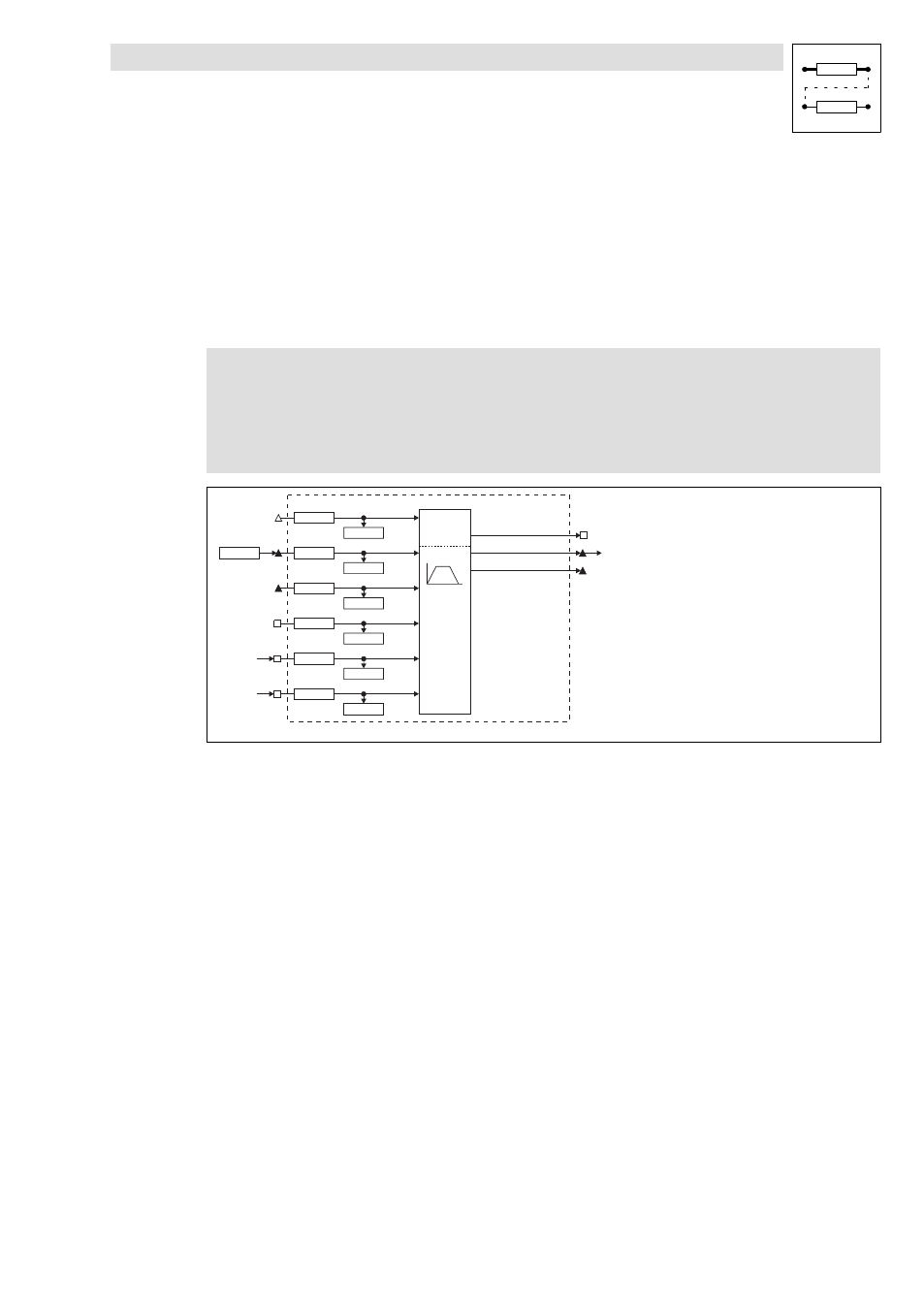

Fig. 3−222 Circuit proposal
The inputs not used do not need to be assigned.
