Function library
Function blocks
3.2.67 Logic NOT
3−219
l
EDSVS9332K−EXT EN 4.0
NOT5
1 NOT5-OUT NOT5-IN
C0849
C0848

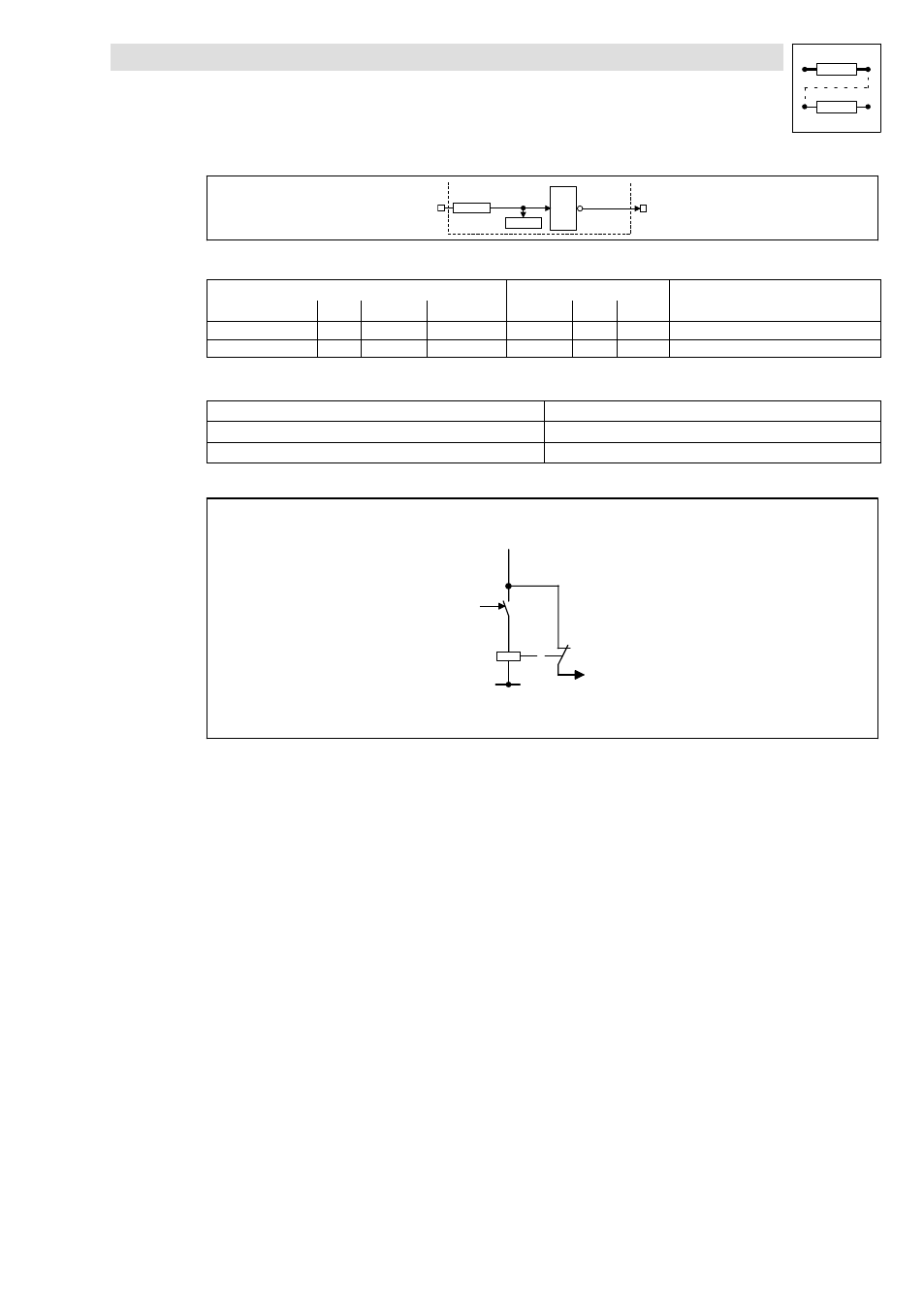

Fig. 3−169 Logic NOT (NOT5)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
NOT5−IN d C0849 bin C0848 2 1000 −
NOT5−OUT d − − − − − −
Function
NOTx−IN1 NOTx−OUT
0 1
1 0
The function corresponds to a change from an NO contact to an NC contact in a contactor control.
NOTx−IN
NOTx−OUT
Fig. 3−170 Function of NOT when changing an NO contact to an NC contact.
