Function library
Function blocks
3.2.3 Function block CDATA
3−28
l
EDSVS9332K−EXT EN 4.0
One−time setting of X position
If slipping and non−integer pulse lengths can be ruled out, the X position must only be set once.
Procedure:
l Set the master drive (machine) to the position applied to the input CDATA−TP−POS.
– CDATA−X−TP/E5 = LOW
l X position is accepted with a LOW−HIGH edge at CDATA−X−TP.
3.2.3.4 Change of direction
+
C1324/2
C1325/2
C1324/3
C1325/3
C1322/4
C1323/4
C1326/1
C1327/1
C1320/2
C1321/2
C1333
C1314
C1332
C1334
C1313
CDATA−XIN
CDATA−XOFFS
CDATA−XRESET
CDATA−DFIN
CDATA−XFACT
CDATA−YOUT
CDATA−NOUT
CDATA−YEND
CDATA−XPOS
CDATA−N−SYNCH
Inter−
polation
C1324/3
C1325/3
CDATA−X−START
C1324/7
C1325/7
CDATA−OFFS−XIN
C1338
0 +

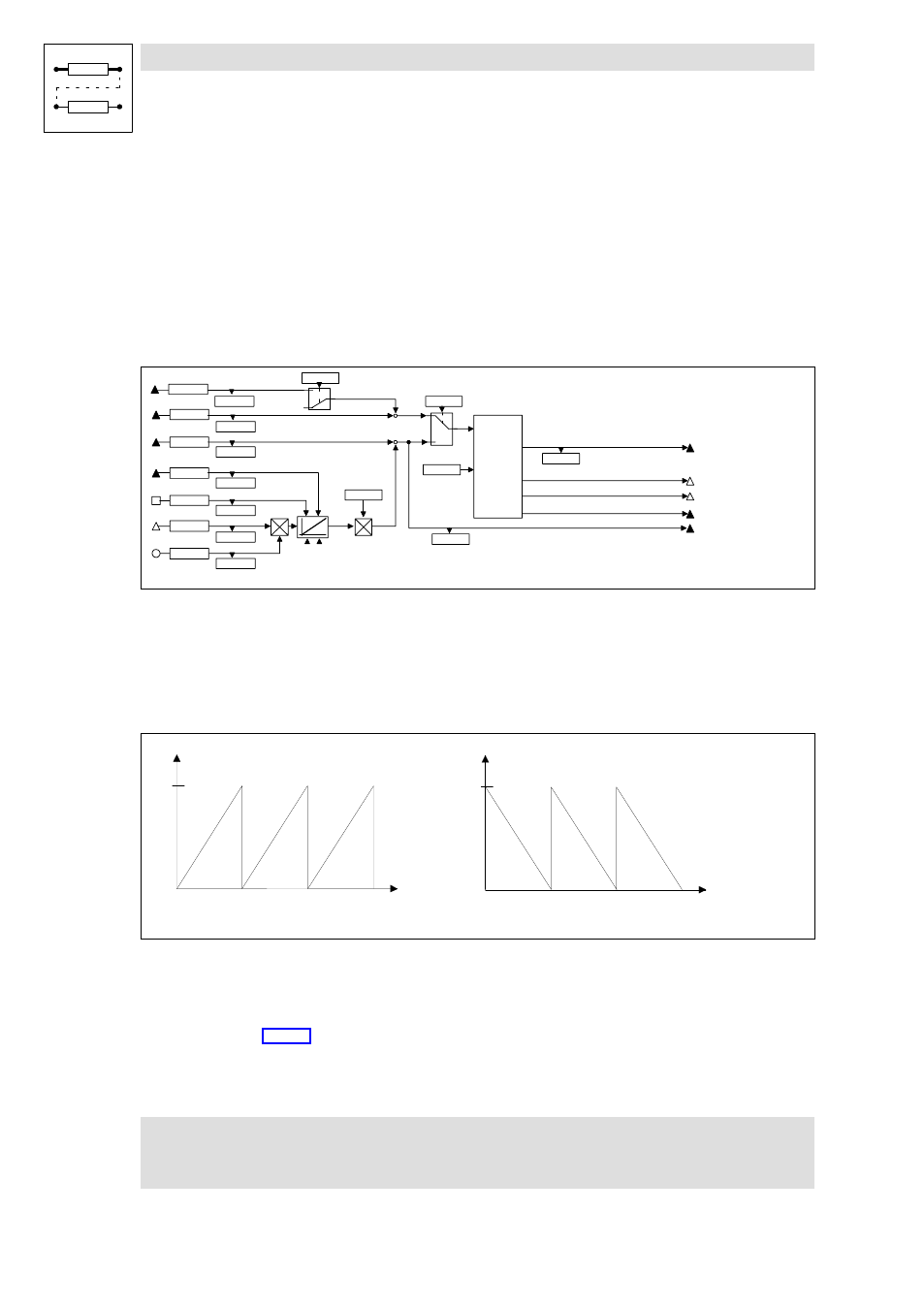

Fig. 3−9 Section of function block CDATA
The direction" indicates the increase of the integrator (output CDATA−XPOS):
– With positive input values at CDATA−DFIN, the integrator runs from 0 to its clock pulse length
(X cycle).
– With negative input values at CDATA−DFIN, the integrator runs from the clock pulse length (X
cycle) to 0.
X
t
X
max
X
t
X
max
n=const. n=const.
0 1
0 Absolute value encoder, CW rotation or internal master angle integrator
1
Absolute value encoder, CCW rotation or internal master angle integrator
Change of direction of rotation for connection at input CDATA−DFIN
(see also chapter 3.2.3.3)
This function is only available for the internal X integrator (C1332 = 0).
The direction can be reversed via code C1314 (see Fig. 3−9).
(
Stop!
The input CDATA−XOFFS is not affected by a reversal of the direction under C1314!
