Application examples
4.4 Mark−controlled cam profile start
4−12
l
EDSVS9332K−EXT EN 4.0
+UG -UG
X4
HI
X5
93XX
-
DC 24V
M
RS
3 9
+
GND LO 59 39
U L1
2
1
0
L2 L3 V W X7
A1A2A3A4 28 E1E2E3E4E5
X9
9300kur051

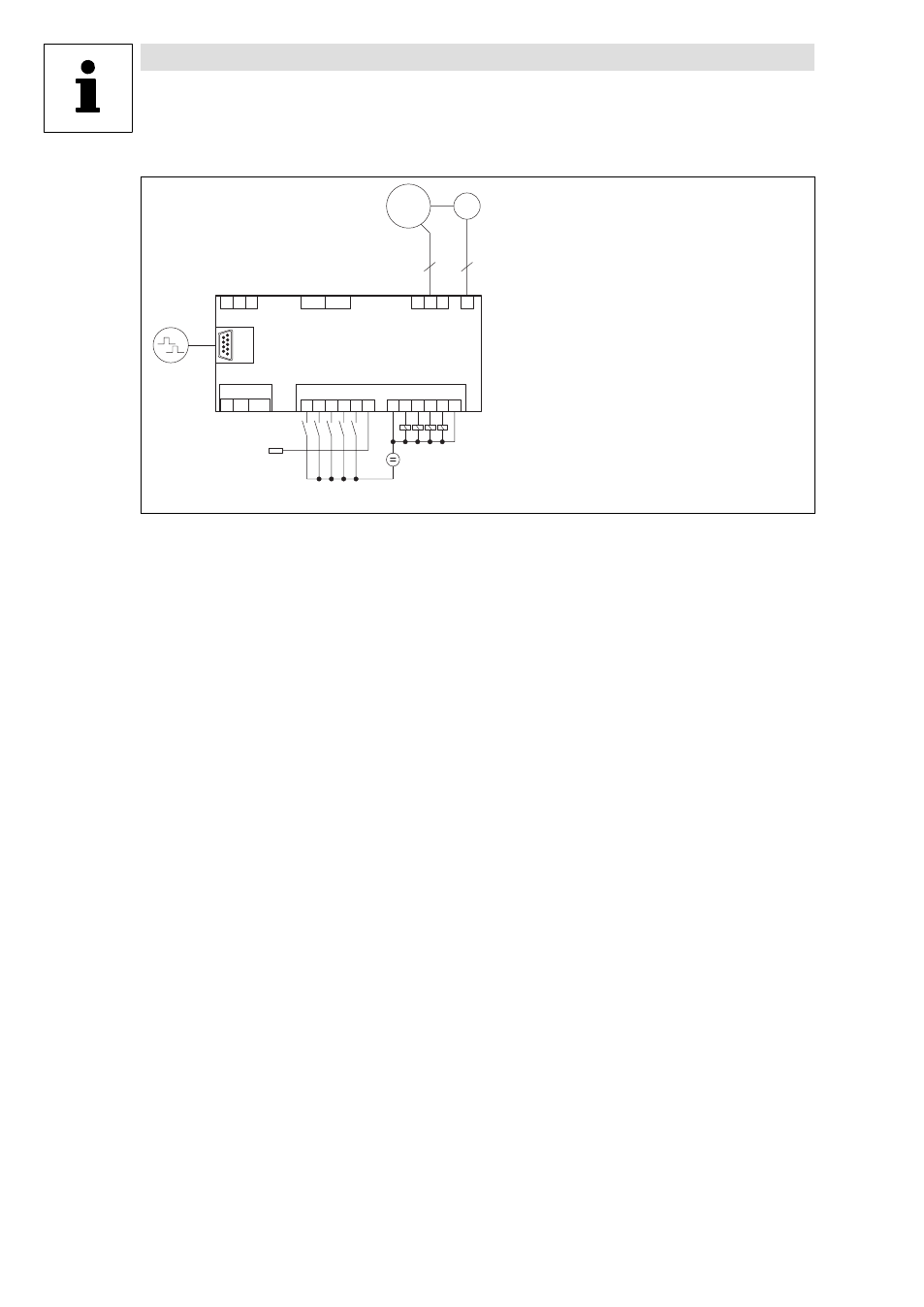

Fig. 4−11 Wiring principle for the controller
0 Controller for cutting drive
1
Mark sensor
2 Master value encoder
RS Resolver
Features
l Mark−controlled start for the correct position for the cut
l Offset selection for the fine adjustment of the position
l Easy changeover in the case of format changes
