Function library
Function blocks
3.2.93 Storage block (STORE1)
3−294
l
EDSVS9332K−EXT EN 4.0
3.2.93 Storage block (STORE1)
Purpose
Stores a setpoint angle signal which is generated from a speed signal. The storage process is
activated via the TP input X5/E5.
C 1 2 1 6 / 1
S T O R E 1 - I N
C 1 2 1 1 / 1
C 1 2 1 5 / 1
S T O R E 1 - R E S E T
C 1 2 1 0 / 1
C 1 2 1 6 / 2
C 1 2 1 1 / 2
S T O R E 1 - M A S K I
C 1 2 1 7
S T O R E 1 - M A S K V
C 1 2 1 2
> M a s k v
C 1 2 1 5 / 3
S T O R E 1 - E N W I N
C 1 2 1 0 / 3
C 1 2 1 5 / 2
S T O R E 1 - E N T P
C 1 2 1 0 / 2
&
_
> 1 _
> 1 _
R
D 1
1
0 T P i n p u t X 5 / E 5
0
C 1 2 1 5 / 4
C T R
C 1 2 1 0 / 4
C 1 2 1 5 / 5
S T O R E 1 - L O A D 1
C 1 2 1 0 / 5
> 1 _ 2 1
R
C
L
R e g 1
R
C
R e g 2
R
C
S & H R
C
+
-
S T O R E 1 - P H D I F F
S T O R E 1 - P H 1
S T O R E 1 - P H 2
S T O R E 1 - A C T
S T O R E 1 - T P - I N H
S T O R E 1
S T O R E 1 - L O A D 0
fb_store1

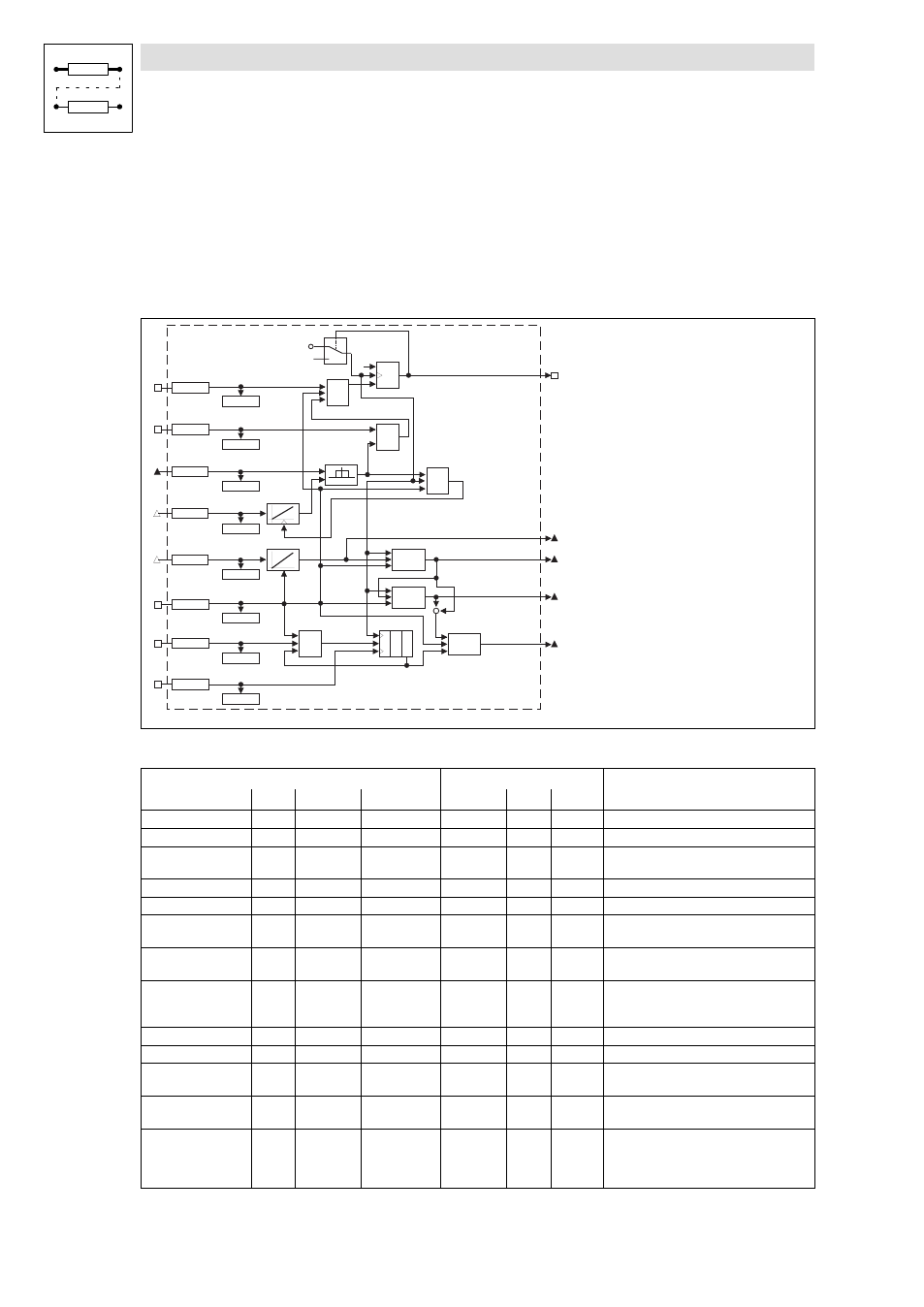

Fig. 3−242 Storage block (STORE1)
Signal Source Note
Name Type DIS DIS format CFG List Lenze
STORE1−IN phd C1216/1 dec [rpm] C1211/1 4 1000 −
STORE1−RESET d C1215/1 bin C1210/1 2 1000 HIGH = resets all functions
STORE1−ENTP d C1215/2 bin C1210/2 2 1000 HIGH = releases triggering via the
TP input E5
STORE1−MASKI phd C1216/2 dec [rpm] C1211/2 4 1000 −
STORE1−MASKV ph C1217 dec [inc] C1212 3 1000 −
STORE1−ENWIN d C1215/3 bin C1210/3 2 1000 HIGH = releases the signal for
| STORE1−MASKI |
w STORE1−MASKV
STORE1−LOAD0 d C1215/4 bin C1210/4 2 1000 HIGH = resets the counter which controls
the output on STORE1−PHDIFF
STORE1−LOAD1 d C1215/5 bin C1012/5 2 1000 LOW−HIGH edge = sets the counter = 1
which controls the output on
STORE1−PHDIFF
STORE1−ACT ph − − − − − Outputs the currently integrated value
STORE1−PH1 ph − − − − − Outputs the last value saved by X5/E5
STORE1−PH2 ph − − − − − Outputs the next to last value saved by
X5/E5
STORE1−PHDIFF ph − − − − − Outputs the difference of STORE1−PH1 and
STORE1−PH2
STORE1−TP−INH d − − − − − HIGH = triggering via TP input E5 has been
effected. For further triggering, a positive
edge has to occur at the input
STORE1−ENTP.
