Function library
Function blocks
3−117
l
EDSVS9332K−EXT EN 4.0
CONVPHA3
CONVPHA3
CONVPHA3-OUT
C1617
± 199,99%
CONVPHA3-IN
C1616
2 C1615
1

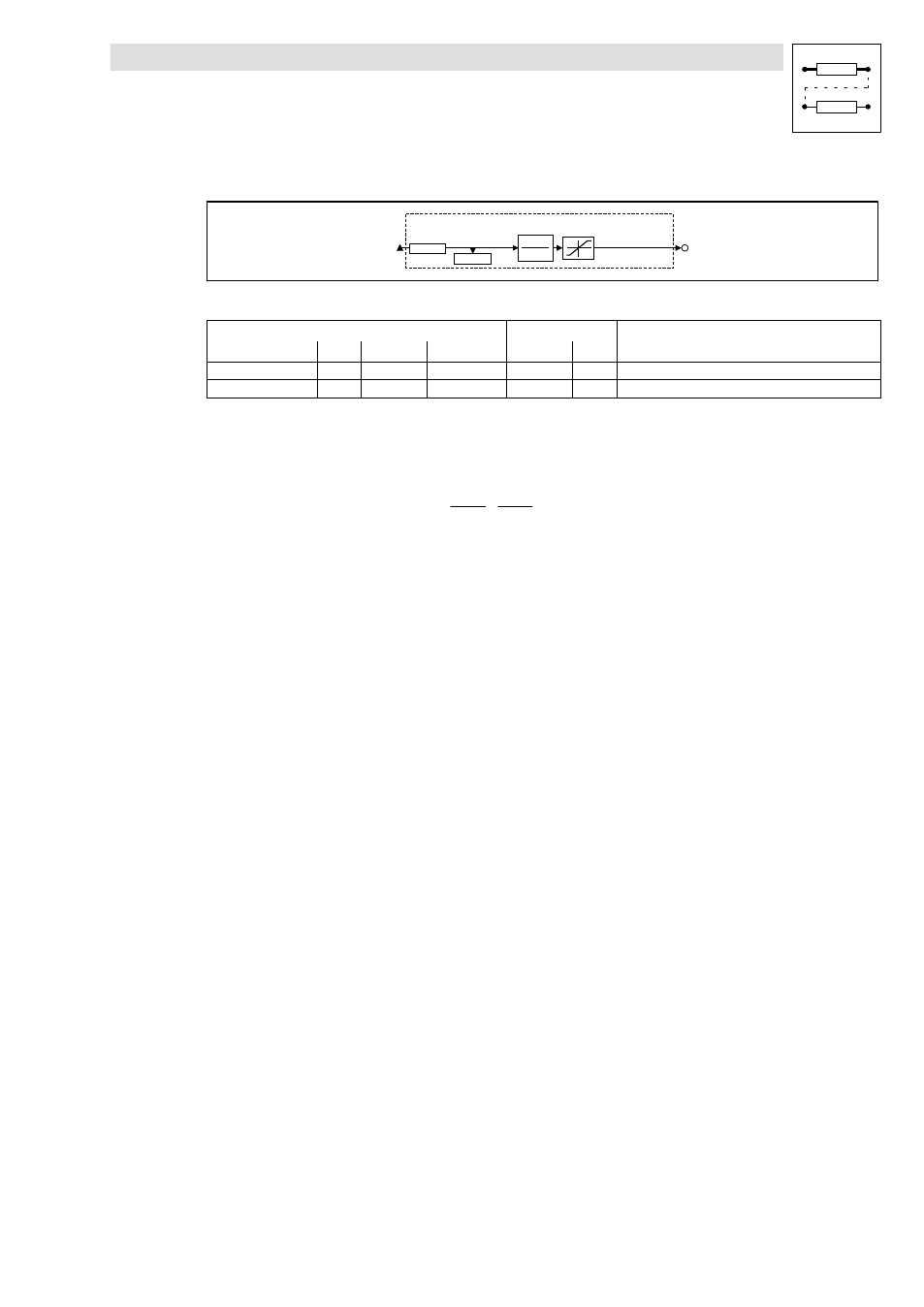

Fig. 3−89 Function block CONVPHA3
Signal Source Note
Name Type DIS DIS format CFG List
CONVPHA3−IN ph C1617 dec [inc] C1616 3 −
CONVPHA3−OUT a − − − − Limited to ±199.99 %, remainder not considered
Function
l Conversion with adaptation using divisor.
l Conversion according to formula:
CONVPHA3–OUT + CONVPHA3–IN @
1
2
C1615
@ 100%
16384
